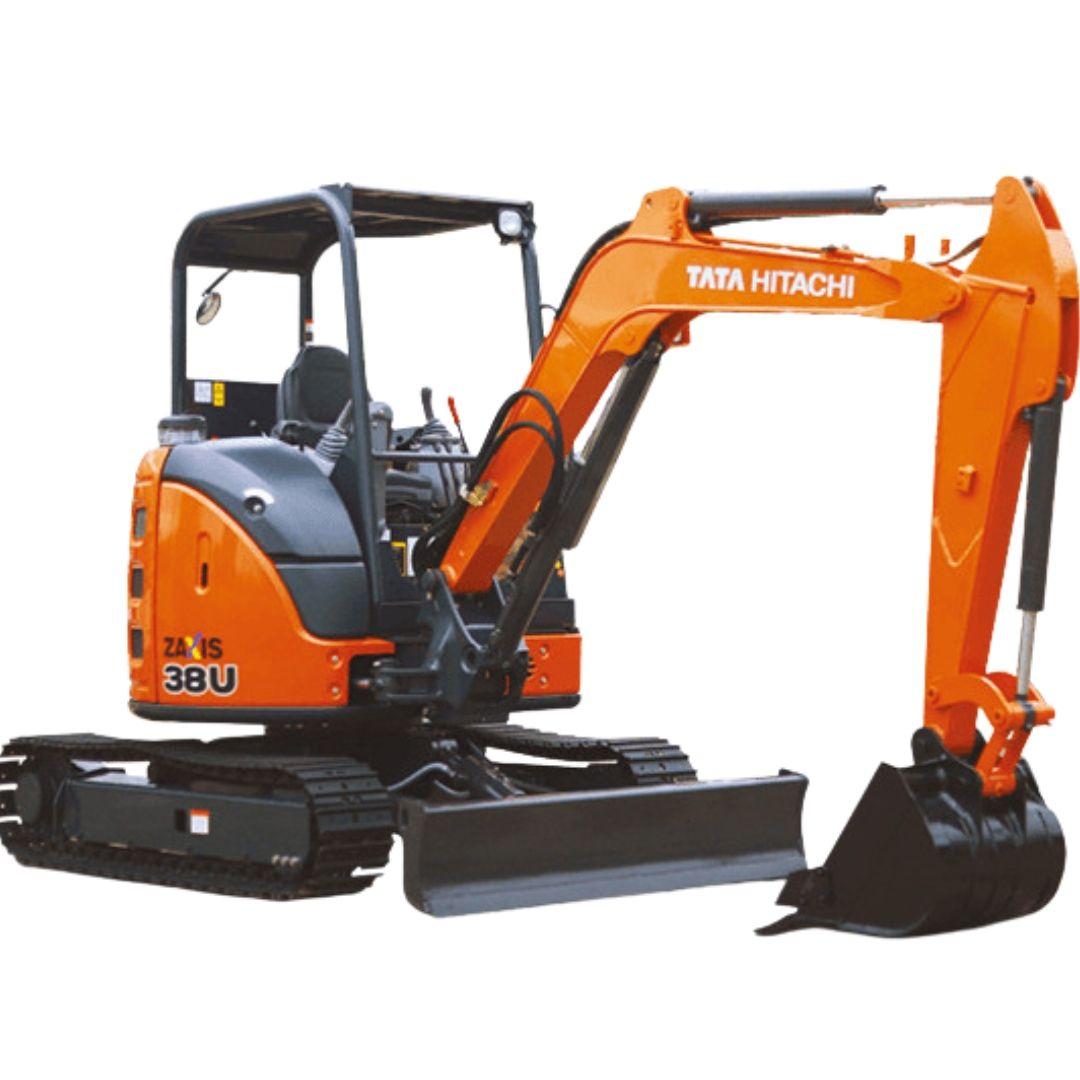

Tata Hitachi Zaxis38U Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi Zaxis38Ui Mini Excavator is a versatile and efficient machine designed for urban construction, landscaping, and small-scale excavation tasks. Powered by a robust Yanmar 3TNV88 engine delivering 22.0 kW at 2400 rpm, this compact excavator is equipped with advanced hydraulics, offering a maximum oil flow of 38.4 L/min for enhanced productivity. With a digging force of 2709 kgf and a boom swing angle of 60°, it excels in operations requiring precision in tight spaces. Its 58% gradeability and travel speeds up to 4.3 km/h make it ideal for varied terrains, while the compact tail swing radius ensures ease of maneuverability. Designed with operator comfort and efficiency in mind, the Zaxis38Ui offers outstanding performance, reliability, and fuel efficiency, making it a perfect choice for diverse applications.
Tata Hitachi Zaxis38U Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi Zaxis38Ui Mini Excavator is a versatile and efficient machine designed for urban construction, landscaping, and small-scale excavation tasks. Powered by a robust Yanmar 3TNV88 engine delivering 22.0 kW at 2400 rpm, this compact excavator is equipped with advanced hydraulics, offering a maximum oil flow of 38.4 L/min for enhanced productivity. With a digging force of 2709 kgf and a boom swing angle of 60°, it excels in operations requiring precision in tight spaces. Its 58% gradeability and travel speeds up to 4.3 km/h make it ideal for varied terrains, while the compact tail swing radius ensures ease of maneuverability. Designed with operator comfort and efficiency in mind, the Zaxis38Ui offers outstanding performance, reliability, and fuel efficiency, making it a perfect choice for diverse applications.
Product Description
The Tata Hitachi Zaxis38Ui Mini Excavator is a versatile and efficient machine designed for urban co...
View the full brochure
Tata Hitachi Zaxis38U Mini Excavator Comparison with Similar Mini Excavators

Tata Hitachi Zaxis38U Mini Excavator
Rated Speed
2400rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Engine Brand
Yanmar
Engine Model
3TNV88
Engine Power
29.5HP
Max Torque
105.5Nm
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
190kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.6Ton
Max Digging Depth
3m
Max Reach At Ground
5m
Max Digging Height
-
Max Dumping Height
3.4m
Bucket Capacity
0.11m³
Bucket Breakout Force
-
Arm Crowd Force
1937kgf
Overall Length
4.6m
Overall Height
2.4m
Ground Clearance
270mm

Sany SY20U Mini Excavator
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm

JCB 37C Mini Excavator
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm

Empower Mini Excavator
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-

Sany SY60C Mini Excavator
Rated Speed
2100rpm
Displacement
3.05L
Fuel Tank Capacity
130L
Engine Brand
Isuzu
Engine Model
4JG1
Engine Power
48.9HP
Max Torque
175Nm
Hydraulic Flow Rate
138L/min
Hydraulic Pressure (implement Circuit)
253.0kgf/cm²
Hydraulic Pressure (swing Circuit)
194.76kgf/cm²
Hydraulic Pressure (travel Circuit)
252.88kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.815 m
Max Reach At Ground
6.090 m
Max Digging Height
5.690 m
Max Dumping Height
3.930 m
Bucket Capacity
0.26m³
Bucket Breakout Force
4590 kgf
Arm Crowd Force
3360kgf
Overall Length
5.925m
Overall Height
2.595m
Ground Clearance
330mm
