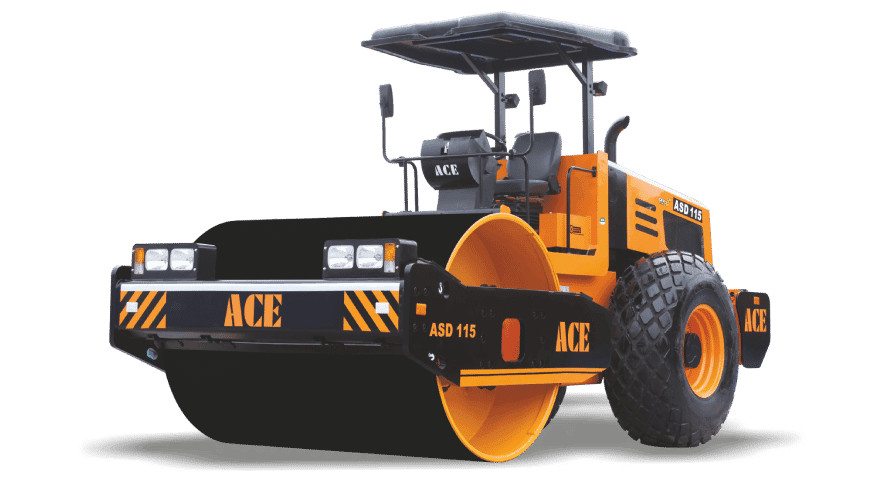

ACE ASD 115 - PD Vibratory Roller
Action Construction Equipment Limited
Haryana
The ACE ASD 115 - PD Vibratory Roller is a high-performance compaction machine designed to deliver exceptional results across a range of construction projects. With an operating weight of 11,900 kg and a centrifugal force of up to 254 KN, it ensures superior compaction for roadways, highways, and industrial sites. Its hydrostatic drive, powerful 110 hp turbocharged diesel engine, and 55% gradeability make it ideal for challenging terrains like dams and embankments. Featuring a static linear load of 34.74 kg/cm and 140 pads with a 100 mm height, it provides precision compaction for airport runways and urban infrastructure. The ±37° articulation angle and 3950 mm turning radius enable smooth maneuverability in tight spaces, making it a versatile and reliable choice for demanding compaction tasks.
ACE ASD 115 - PD Vibratory Roller
Action Construction Equipment Limited
Haryana
The ACE ASD 115 - PD Vibratory Roller is a high-performance compaction machine designed to deliver exceptional results across a range of construction projects. With an operating weight of 11,900 kg and a centrifugal force of up to 254 KN, it ensures superior compaction for roadways, highways, and industrial sites. Its hydrostatic drive, powerful 110 hp turbocharged diesel engine, and 55% gradeability make it ideal for challenging terrains like dams and embankments. Featuring a static linear load of 34.74 kg/cm and 140 pads with a 100 mm height, it provides precision compaction for airport runways and urban infrastructure. The ±37° articulation angle and 3950 mm turning radius enable smooth maneuverability in tight spaces, making it a versatile and reliable choice for demanding compaction tasks.
Product Description
The ACE ASD 115 - PD Vibratory Roller is a high-performance compaction machine designed to deliver e...
View the full brochure
ACE ASD 115 - PD Vibratory Roller Comparison with Similar Single Drum Soil Compactor
ACE ASD 115 - PD Vibratory Roller
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
LiuGong 611 Soil Compactor
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Operating Weight
11.0 Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Battery Voltage
12 V
Battery Capacity
150 Ah
Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
13.960Ton
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Ammann ARS 30 PD Single Drum Roller
Engine Brand
Kubota
Engine Model
V2403-CR-T
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
98L
Transmission Type
-
Max Travel Speed
9.5km/h
Service Brake Type
-
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
30°
Oscillation Angle
10°
Turning Radius (inner)
2.8m
Turning Radius (outer)
-
Operating Weight
3.49Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
29Hz
Frequency (high)
38Hz
Amplitude (low)
1.5mm
Amplitude (high)
-
Centrifugal Force
68kN
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
1.2m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Ammann ARS 110.2 Single Drum Roller
Engine Brand
Ashok Leyland
Engine Model
H4C410122
Engine Power
99.2HP
Max Torque
-
Rated Speed
1400rpm
Displacement
-
Fuel Tank Capacity
310L
Transmission Type
Hydrostatic
Max Travel Speed
11.5km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
36°
Oscillation Angle
10°
Turning Radius (inner)
3.25m
Turning Radius (outer)
-
Operating Weight
11.1Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
29.1kg/cm
Frequency (low)
32Hz
Frequency (high)
35Hz
Amplitude (low)
0.9mm
Amplitude (high)
1.85mm
Centrifugal Force
275kN
Max Applied Force
275kN
Without Drum Drive
35%
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
2.13m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Compare Single Drum Soil Compactor
ACE ASD 115 - PD Vibratory Roller
LiuGong 611 Soil Compactor
Add any equipment
to compare
Get instant quotation on whatsapp
Connect with "Action Construction Equipment Limited"
Connect with Seller Instantly
Related Products
More Products from Action Construction Equipment Limited
About Company
Company Name
Action Construction Equipment Limited
GST Number
06AAACA6189P1Z5
Since
January 1995
Address
Dudhola Link Road, Vill. Dudhola Distt. Palwal -121102, Haryana, India
Action Construction Equipment Limited (ACE), established in 1995 in Faridabad, Haryana, is India’s leading manufacturer of material handling and construction equipment. ACE holds a majority market share in the Mobile Cranes and Tower Cranes segments. The company’s product portfolio includes Mobile/Fixed Tower Cranes, Crawler Cranes, Truck Mounted Cranes, Backhoe Loaders, Vibratory Rollers, Forklifts, Tractors, and Harvesters. With state-of-the-art production facilities capable of producing 12,000 construction equipment and 9,000 tractors annually, ACE supports major infrastructure, engineering, and industrial projects across India. Known for reliable equipment, innovative technology, and customer-centric service, ACE is trusted across diverse industries, including infrastructure, power, ports, and mining.
