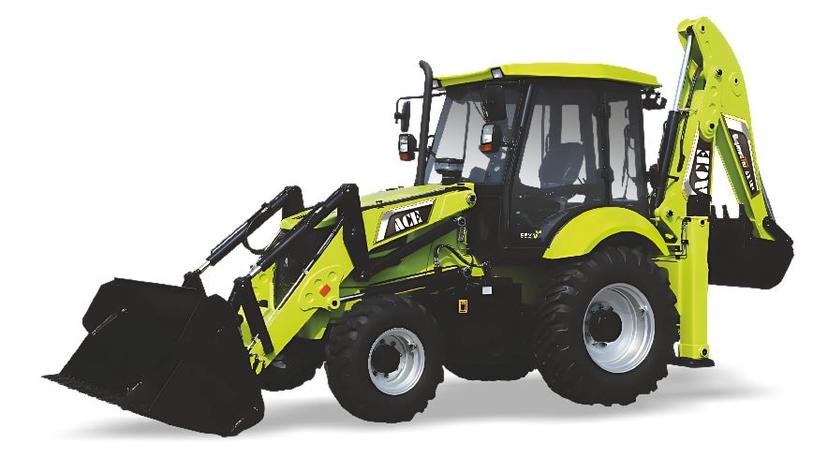

ACE AX 124 Backhoe Loader
Action Construction Equipment Limited
Haryana
The ACE AX 124 Backhoe Loader is a powerful and versatile machine designed for a variety of construction and heavy industry tasks. With a 74 HP engine, it offers robust performance for digging, moving, grading, and loading earth and loose aggregates. The loader has a capacity of 1.00 m³ and an excavator capacity of 0.24 m³, making it ideal for diverse applications. Its 4WD drive system ensures superior traction and maneuverability on different terrains, while the 150-liter fuel tank supports extended operation. Whether used in construction, infrastructure projects, or mining activities, the AX 124 delivers reliability and efficiency. Its design and capabilities make it well-suited for tasks ranging from road maintenance to material handling, offering durability and performance in demanding conditions.
ACE AX 124 Backhoe Loader
Action Construction Equipment Limited
Haryana
The ACE AX 124 Backhoe Loader is a powerful and versatile machine designed for a variety of construction and heavy industry tasks. With a 74 HP engine, it offers robust performance for digging, moving, grading, and loading earth and loose aggregates. The loader has a capacity of 1.00 m³ and an excavator capacity of 0.24 m³, making it ideal for diverse applications. Its 4WD drive system ensures superior traction and maneuverability on different terrains, while the 150-liter fuel tank supports extended operation. Whether used in construction, infrastructure projects, or mining activities, the AX 124 delivers reliability and efficiency. Its design and capabilities make it well-suited for tasks ranging from road maintenance to material handling, offering durability and performance in demanding conditions.
Product Description
The ACE AX 124 Backhoe Loader is a powerful and versatile machine designed for a variety of construc...
View the full brochure
ACE AX 124 Backhoe Loader Comparison with Similar Backhoe Loader
ACE AX 124 Backhoe Loader
Engine Brand
TATA
Engine Model
497 TCIC (BS-V)
Engine Power
74HP
Max Torque
345Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
150L
Transmission Type
Synchro shuttle
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
28km/h
Service Brake Type
Hydraulically actuated wet disc
Parking Brake Type
Mechanically actuated disc
Steering Type
Hydrostatic
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
3.5m
Turning Radius (unbraked)
4.4m
Operating Weight
8.04Ton
Max Lifting Capacity
1900kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
210Bar
Max Digging Depth
4.25m
Max Reach At Ground
6.73m
Max Reach At Full Height
1.22m
Max Loading Height
3.79m
Bucket Capacity
0.24m³
Bucket Breakout Force
4950kgf
Dipper Breakout Force
4000kgf
Max Dump Height
2.76m
Max Load Over Height
3.34m
Max Hinge Pin Height
3.63m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4950kgf
Shovel Breakout Force
-
Overall Length
6.2m
Overall Width
-
Overall Height
3.6m
Ground Clearance
310mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
80-18-12/16.90-28-12
CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-4 Backhoe Loader
Engine Brand
Cat
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40 km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.045Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.707m
Max Reach At Ground
5.603m
Max Reach At Full Height
-
Max Loading Height
3.934m
Bucket Capacity
1.0m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.766m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.0m³
Loader Arm Breakout Force
5,370kgf
Shovel Breakout Force
6,036kgf
Overall Length
5.681m
Overall Width
2.346m
Overall Height
3.757m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Mahindra Earth Master SX SMART 50 Backhoe Loader
Engine Brand
Mahindra
Engine Model
NEF Engine
Engine Power
49.2HP
Max Torque
235Nm
Rated Speed
2100rpm
Displacement
3.532L
Fuel Tank Capacity
120L
Transmission Type
Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
33.3km/h
Service Brake Type
Hydraulically actuated, oil immersed multi-disc
Parking Brake Type
Hand operated mechanically actuated caliper type brake
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
4.943m
Turning Radius (unbraked)
5.037m
Operating Weight
7.477Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
103L/min
Hydraulic Pressure
21Bar
Max Digging Depth
4.854m
Max Reach At Ground
5.658m
Max Reach At Full Height
3.605m
Max Loading Height
5.793m
Bucket Capacity
0.27m³
Bucket Breakout Force
5146kgf
Dipper Breakout Force
-
Max Dump Height
2.708m
Max Load Over Height
1.350m
Max Hinge Pin Height
-
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4667kgf
Shovel Breakout Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Power Steering
Yes
Battery Voltage
12V 100AhV
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00-16 16 PR / 16.9-28 12 PR
Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Displacement
4.156L
Fuel Tank Capacity
150L
Transmission Type
4F-2R Manual Power shift
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
36.8km/h
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Operating Weight
7.845Ton
Max Lifting Capacity
1800kg
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Reach At Full Height
-
Max Loading Height
4.30m
Bucket Capacity
0.26m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Dump Height
2.85m
Max Load Over Height
3.33m
Max Hinge Pin Height
3.51m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5300kgf
Shovel Breakout Force
5250kgf
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Ground Clearance
440mm
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
