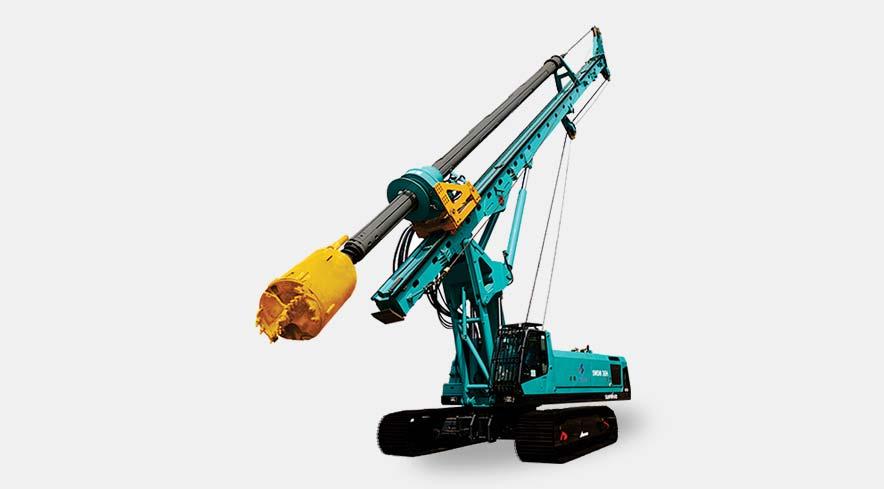

ACE SA 210 Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 210 Piling Rig is a high-performance machine designed for heavy-duty foundation work in challenging soil conditions. With its robust rotary power head offering a maximum torque of 205 kN.m and a rotation speed range of 6-26 rpm, it excels in applications requiring deep drilling. This versatile rig is ideal for a variety of construction projects, including urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and general construction. The SA 210 is equipped with advanced features like a maximum drilling depth of 62 meters, powerful Cummins engine, and efficient pressurized systems that ensure optimal performance. With a lifting force of up to 210 kN and a maximum drilling diameter of 1800 mm, it delivers precision and reliability for large-scale, deep foundation projects.
ACE SA 210 Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 210 Piling Rig is a high-performance machine designed for heavy-duty foundation work in challenging soil conditions. With its robust rotary power head offering a maximum torque of 205 kN.m and a rotation speed range of 6-26 rpm, it excels in applications requiring deep drilling. This versatile rig is ideal for a variety of construction projects, including urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and general construction. The SA 210 is equipped with advanced features like a maximum drilling depth of 62 meters, powerful Cummins engine, and efficient pressurized systems that ensure optimal performance. With a lifting force of up to 210 kN and a maximum drilling diameter of 1800 mm, it delivers precision and reliability for large-scale, deep foundation projects.
Product Description
The ACE SA 210 Piling Rig is a high-performance machine designed for heavy-duty foundation work in c...
View the full brochure
ACE SA 210 Piling Rig Comparison with Similar Piling Rig
ACE SA 210 Piling Rig
Engine Brand
Cummins
Engine Model
QSB6.7-C260
Engine Power
194kW
Rated Speed
2200rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
205kN·m
Rotation Speed Range
26rpm
High Speed Throwing Soil
70rpm
Max. Drilling Diameter
1800mm
Max. Drilling Depth (interlocking Kelly)
50m
Max. Drilling Depth (friction Kelly)
62m
Crowd Force (push)
200kN
Crowd Force (pull)
210kN
Stroke Length
5000mm
Max. Lifting Capacity
80kN
Max. Line Speed
55m/min
Wire Rope Diameter
-
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
700mm
Chassis Length
5145mm
Crawler Extension Width
4200mm
Swing Radius
-
Overall Height
20400mm
Transport Height
-
Transport Width
-
Operating Weight
67Ton
Max. Traction Force
-
Max. Travel Speed
1.63km/h
Max. Gradeability
15°
Friction Kelly Bar
62000mm
Interlocking Kelly Bar
50000mm
