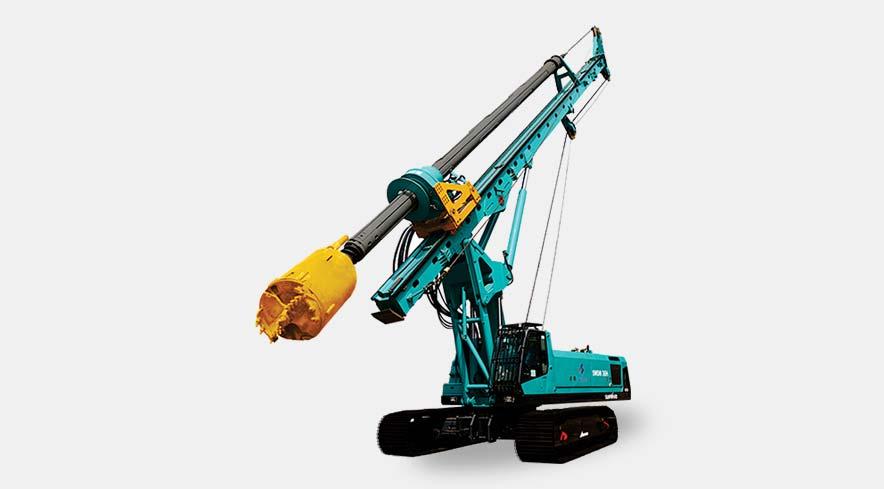

ACE SA 250 C Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 250 C Piling Rig is a high-performance solution designed for challenging hard soil conditions, offering exceptional capabilities for a variety of construction applications. With a maximum drilling diameter of 1800 mm and a drilling depth of up to 67 meters, this rig is ideal for urban infrastructure, metro and rapid rail projects, bridges, flyovers, and general construction. Powered by a Cummins QSL9-325 engine, it provides 242 kW of power, ensuring high efficiency and reliability. The rig's rotary power head delivers a maximum torque of 250 kN·m, while its pressurized system offers impressive lifting and applied pressure capabilities. Its versatile design also makes it perfect for tunnel boring projects, with advanced features like high-speed soil throwing and a flexible drill mast. The ACE SA 250 C is a comprehensive solution for all underground foundation needs.
ACE SA 250 C Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 250 C Piling Rig is a high-performance solution designed for challenging hard soil conditions, offering exceptional capabilities for a variety of construction applications. With a maximum drilling diameter of 1800 mm and a drilling depth of up to 67 meters, this rig is ideal for urban infrastructure, metro and rapid rail projects, bridges, flyovers, and general construction. Powered by a Cummins QSL9-325 engine, it provides 242 kW of power, ensuring high efficiency and reliability. The rig's rotary power head delivers a maximum torque of 250 kN·m, while its pressurized system offers impressive lifting and applied pressure capabilities. Its versatile design also makes it perfect for tunnel boring projects, with advanced features like high-speed soil throwing and a flexible drill mast. The ACE SA 250 C is a comprehensive solution for all underground foundation needs.
Product Description
The ACE SA 250 C Piling Rig is a high-performance solution designed for challenging hard soil condit...
View the full brochure
ACE SA 250 C Piling Rig Comparison with Similar Piling Rig
ACE SA 250 C Piling Rig
Engine Model
QSL9-325
Engine Power
242kW
Rated Speed
2100rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
250kN·m
Crowd Force (push)
270kN
Crowd Force (pull)
270kN
Stroke Length
16000mm
Max. Lifting Capacity
80kN
Max. Line Speed
55m/min
Wire Rope Diameter
-
Track Shoe Width
800mm
Chassis Length
5145mm
Crawler Extension Width
4400mm
Swing Radius
-
Overall Height
22700mm
Transport Height
-
Transport Width
-
Operating Weight
80Ton
Max. Traction Force
-
Max. Travel Speed
1.63km/h
Max. Gradeability
15°
Friction Kelly Bar
67000mm
Interlocking Kelly Bar
56000mm
Engine Brand
CUMMINS
Rotation Speed Range
26rpm
High Speed Throwing Soil
70rpm
Max. Drilling Diameter
1800mm
Max. Drilling Depth (interlocking Kelly)
56m
Max. Drilling Depth (friction Kelly)
67m
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Mait India THH6 Rotary Drilling Piling Rig
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Mait India MDT-60B Rotary Drilling Piling Rig
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Mait India MDT-180B Rotary Drilling Piling Rig
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
XCMG XR80I Rotary Drilling Piling Rig
Engine Model
-
Engine Power
103kW
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
106 kN·m
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
2.5mm
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
Cummins
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
1200 mm
Max. Drilling Depth (interlocking Kelly)
25m
Max. Drilling Depth (friction Kelly)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
