ACE SA 250 Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 250 Piling Rig is designed for high-performance operations in hard soil conditions, making it ideal for a variety of construction applications. It offers robust capabilities for urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and general construction projects. With a maximum drilling depth of up to 67 meters and a drilling diameter of 2000 mm, this rig ensures efficient and deep foundation work. Equipped with a powerful rotary power head delivering up to 250 kN.m of torque, it excels in tough drilling environments. The SA 250 also features advanced winches, high-speed rotation options, and a versatile chassis that can adapt to varying terrain. Its flexibility and power make it the perfect choice for static pile driving, tunnel boring, and underground foundation work across diverse construction projects.
ACE SA 250 Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 250 Piling Rig is designed for high-performance operations in hard soil conditions, making it ideal for a variety of construction applications. It offers robust capabilities for urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and general construction projects. With a maximum drilling depth of up to 67 meters and a drilling diameter of 2000 mm, this rig ensures efficient and deep foundation work. Equipped with a powerful rotary power head delivering up to 250 kN.m of torque, it excels in tough drilling environments. The SA 250 also features advanced winches, high-speed rotation options, and a versatile chassis that can adapt to varying terrain. Its flexibility and power make it the perfect choice for static pile driving, tunnel boring, and underground foundation work across diverse construction projects.
Product Description
The ACE SA 250 Piling Rig is designed for high-performance operations in hard soil conditions, makin...
View the full brochure
ACE SA 250 Piling Rig Comparison with Similar Piling Rig
ACE SA 250 Piling Rig
Stroke Length
5000mm
Max. Lifting Capacity
80kN
Max. Line Speed
55m/min
Wire Rope Diameter
-
Engine Brand
-
Engine Model
QSL9-325
Engine Power
242kW
Rated Speed
2100rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
250kN·m
Rotation Speed Range
26rpm
High Speed Throwing Soil
70rpm
Max. Drilling Diameter
2000mm
Max. Drilling Depth (interlocking Kelly)
56m
Max. Drilling Depth (friction Kelly)
67m
Crowd Force (push)
210kN
Crowd Force (pull)
220kN
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
800mm
Chassis Length
5145mm
Crawler Extension Width
4400mm
Swing Radius
-
Overall Height
22700mm
Transport Height
-
Transport Width
-
Operating Weight
80Ton
Max. Traction Force
-
Max. Travel Speed
1.63km/h
Max. Gradeability
15°
Friction Kelly Bar
67000mm
Interlocking Kelly Bar
56000mm

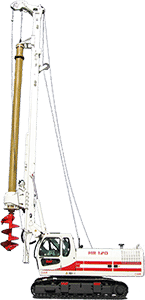

Mait India HR 120 Rotary Drilling Piling Rig
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-

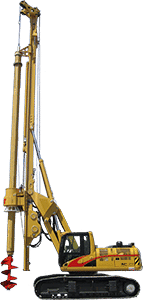

Mait India HR 100 Rotary Drilling Piling Rig
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-

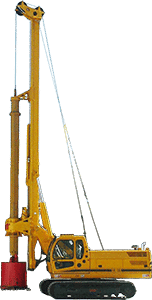

Mait India MC 230 Rotary Drilling Piling Rig
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-

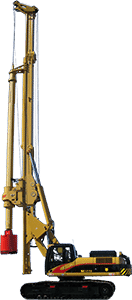

Mait India MC 180 Rotary Drilling Piling Rig
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
