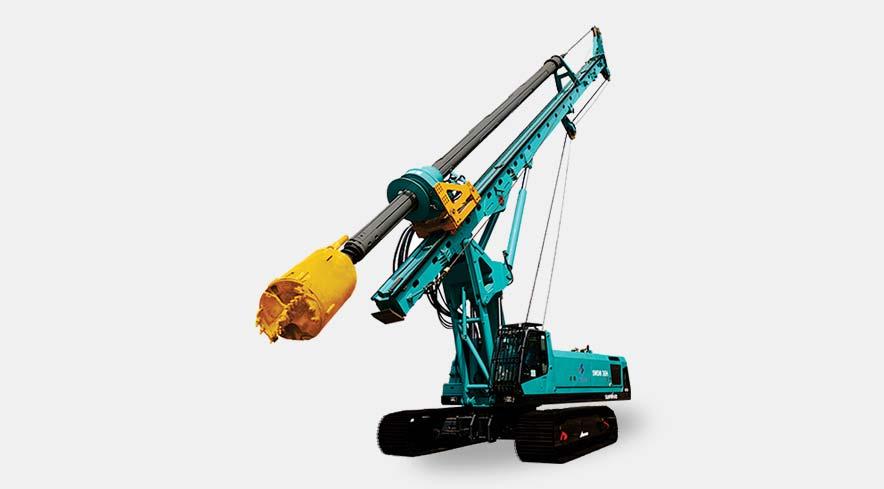

ACE SA 300 C Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 300 C Piling Rig is a high-performance, rugged solution designed for challenging soil conditions, ideal for a wide range of foundation applications. With a maximum drilling depth of up to 86 meters and a drilling diameter of 2200 mm, it is perfect for projects such as metro and rapid rail connectivity, bridges, flyovers, and urban infrastructure. Powered by a Cummins QSM11-335 engine with 250 kW power, the rig offers impressive lifting force and torque capabilities, making it reliable for deep foundation work and heavy-duty applications. The versatile design includes an optional high-speed soil throwing feature for faster operations. Its robust pressurized system, stable chassis, and efficient rotary power head ensure superior performance in demanding construction environments, making the ACE SA 300 C an ideal choice for large-scale, complex construction projects.
ACE SA 300 C Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 300 C Piling Rig is a high-performance, rugged solution designed for challenging soil conditions, ideal for a wide range of foundation applications. With a maximum drilling depth of up to 86 meters and a drilling diameter of 2200 mm, it is perfect for projects such as metro and rapid rail connectivity, bridges, flyovers, and urban infrastructure. Powered by a Cummins QSM11-335 engine with 250 kW power, the rig offers impressive lifting force and torque capabilities, making it reliable for deep foundation work and heavy-duty applications. The versatile design includes an optional high-speed soil throwing feature for faster operations. Its robust pressurized system, stable chassis, and efficient rotary power head ensure superior performance in demanding construction environments, making the ACE SA 300 C an ideal choice for large-scale, complex construction projects.
Product Description
The ACE SA 300 C Piling Rig is a high-performance, rugged solution designed for challenging soil con...
View the full brochure
ACE SA 300 C Piling Rig Comparison with Similar Piling Rig
ACE SA 300 C Piling Rig
Rated Speed
2100rpm
Emission Standard
-
Swing Radius
-
Overall Height
24500mm
Transport Height
-
Transport Width
-
Operating Weight
102.6Ton
Max. Traction Force
-
Engine Brand
cummins
Engine Model
QSM11-335
Engine Power
250kW
Engine Displacement
-
Max Output Torque
300kN·m
Rotation Speed Range
28rpm
High Speed Throwing Soil
70rpm
Max. Drilling Diameter
2200mm
Max. Drilling Depth (interlocking Kelly)
61m
Max. Drilling Depth (friction Kelly)
86m
Crowd Force (push)
280kN
Crowd Force (pull)
280kN
Stroke Length
17500mm
Max. Lifting Capacity
110kN
Max. Line Speed
65m/min
Wire Rope Diameter
-
Track Shoe Width
700mm
Chassis Length
5700mm
Crawler Extension Width
4500mm
Max. Travel Speed
1.75km/h
Max. Gradeability
15°
Friction Kelly Bar
86000mm
Interlocking Kelly Bar
61000mm
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
