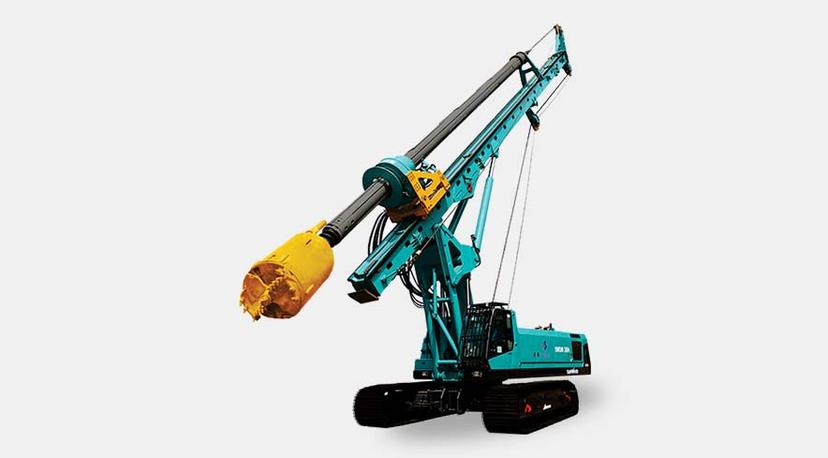

ACE SA 420 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 420 W Piling Rig is a high-performance rotary piling machine designed for hard soil conditions and demanding construction projects. With a maximum drilling diameter of 2500 mm (optional 3000 mm) and depths up to 102 meters using a friction kelly bar, it is ideal for deep foundations. Powered by a reliable Cummins QSX15-C535 engine, delivering 399 kW, the rig ensures exceptional efficiency and torque up to 460 kN.m. Its versatility makes it perfect for urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and tunnel boring. The advanced hydraulic crawler design, pressurized systems, and robust winches provide stability, precision, and enhanced lifting capabilities. Built for reliability and performance, the ACE SA 420 W is the go-to solution for challenging foundation projects.
ACE SA 420 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 420 W Piling Rig is a high-performance rotary piling machine designed for hard soil conditions and demanding construction projects. With a maximum drilling diameter of 2500 mm (optional 3000 mm) and depths up to 102 meters using a friction kelly bar, it is ideal for deep foundations. Powered by a reliable Cummins QSX15-C535 engine, delivering 399 kW, the rig ensures exceptional efficiency and torque up to 460 kN.m. Its versatility makes it perfect for urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and tunnel boring. The advanced hydraulic crawler design, pressurized systems, and robust winches provide stability, precision, and enhanced lifting capabilities. Built for reliability and performance, the ACE SA 420 W is the go-to solution for challenging foundation projects.
Product Description
The ACE SA 420 W Piling Rig is a high-performance rotary piling machine designed for hard soil condi...
View the full brochure
ACE SA 420 W Piling Rig Comparison with Similar Piling Rig
ACE SA 420 W Piling Rig
Crowd Force (push)
340kN
Crowd Force (pull)
380kN
Stroke Length
13000mm
Max. Lifting Capacity
110kN
Max. Line Speed
65m/min
Wire Rope Diameter
-
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
9000mm
Chassis Length
6120mm
Crawler Extension Width
4800mm
Swing Radius
-
Overall Height
27200mm
Transport Height
-
Transport Width
-
Operating Weight
135.5Ton
Max. Traction Force
-
Max. Travel Speed
1.2km/h
Max. Gradeability
15°
Friction Kelly Bar
102000mm
Interlocking Kelly Bar
66000mm
Engine Brand
Cummins
Engine Model
QSX15-C535
Engine Power
399kW
Rated Speed
2100rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
460kN·m
Rotation Speed Range
24rpm
High Speed Throwing Soil
70rpm
Max. Drilling Diameter
2500mm
Max. Drilling Depth (interlocking Kelly)
66m
Max. Drilling Depth (friction Kelly)
102m
Mait India THH6 Rotary Drilling Piling Rig
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Mait India MDT-60B Rotary Drilling Piling Rig
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Mait India MDT-180B Rotary Drilling Piling Rig
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
XCMG XR80I Rotary Drilling Piling Rig
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
2.5mm
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
Cummins
Engine Model
-
Engine Power
103kW
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
106 kN·m
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
1200 mm
Max. Drilling Depth (interlocking Kelly)
25m
Max. Drilling Depth (friction Kelly)
-
