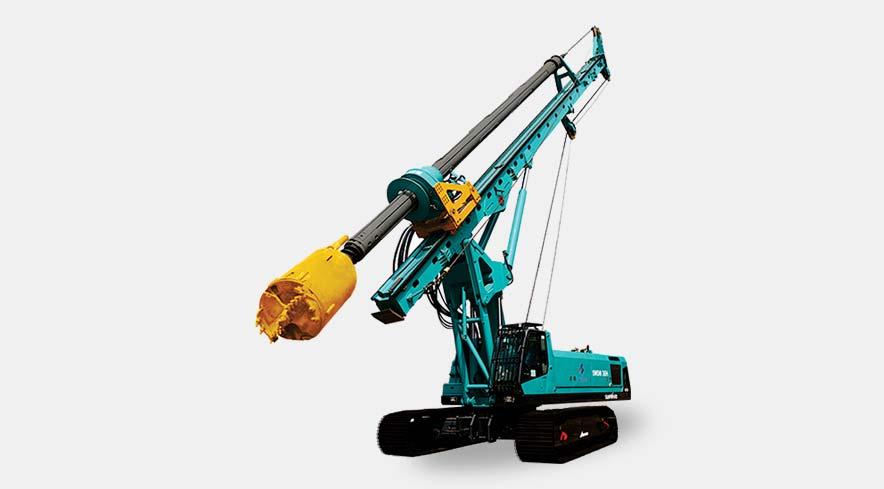

ACE SA 60 Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 60 Piling Rig is a versatile and high-performance machine designed for efficient and precise drilling in a wide range of construction applications. With a maximum drilling diameter of 1000 mm and depths of up to 27 m, it is perfect for foundation drilling, bridge piling, and soil stabilization. Its robust rotary power head, delivering up to 60 kN.m of torque, ensures superior performance even in challenging terrains. Powered by an ISUZU engine with 84 kW/2200 rpm, the SA 60 offers reliability and energy efficiency. Featuring advanced pressurized systems with a maximum applied pressure of 100 kN and a lifting force of 120 kN, it is ideal for retaining wall construction and wind turbine foundations. Compact, durable, and highly mobile, this rig is a game-changer for modern piling needs.
ACE SA 60 Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 60 Piling Rig is a versatile and high-performance machine designed for efficient and precise drilling in a wide range of construction applications. With a maximum drilling diameter of 1000 mm and depths of up to 27 m, it is perfect for foundation drilling, bridge piling, and soil stabilization. Its robust rotary power head, delivering up to 60 kN.m of torque, ensures superior performance even in challenging terrains. Powered by an ISUZU engine with 84 kW/2200 rpm, the SA 60 offers reliability and energy efficiency. Featuring advanced pressurized systems with a maximum applied pressure of 100 kN and a lifting force of 120 kN, it is ideal for retaining wall construction and wind turbine foundations. Compact, durable, and highly mobile, this rig is a game-changer for modern piling needs.
Product Description
The ACE SA 60 Piling Rig is a versatile and high-performance machine designed for efficient and prec...
View the full brochure
ACE SA 60 Piling Rig Comparison with Similar Piling Rig
ACE SA 60 Piling Rig
Max. Drilling Depth (interlocking Kelly)
20m
Max. Drilling Depth (friction Kelly)
27m
Crowd Force (push)
100kN
Crowd Force (pull)
120kN
Max. Drilling Diameter
1000mm
Stroke Length
3000mm
Max. Lifting Capacity
30kN
Max. Line Speed
50m/min
Wire Rope Diameter
-
Engine Brand
ISUZU
Engine Model
4JJ1XKSG-02
Engine Power
84kW
Rated Speed
2200rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
60kN·m
Rotation Speed Range
35rpm
High Speed Throwing Soil
-
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
600mm
Chassis Length
3745mm
Crawler Extension Width
2600mm
Swing Radius
-
Overall Height
12700mm
Transport Height
-
Transport Width
-
Operating Weight
26Ton
Max. Traction Force
-
Max. Travel Speed
3.2km/h
Max. Gradeability
20°
Friction Kelly Bar
27000mm
Interlocking Kelly Bar
20000mm
