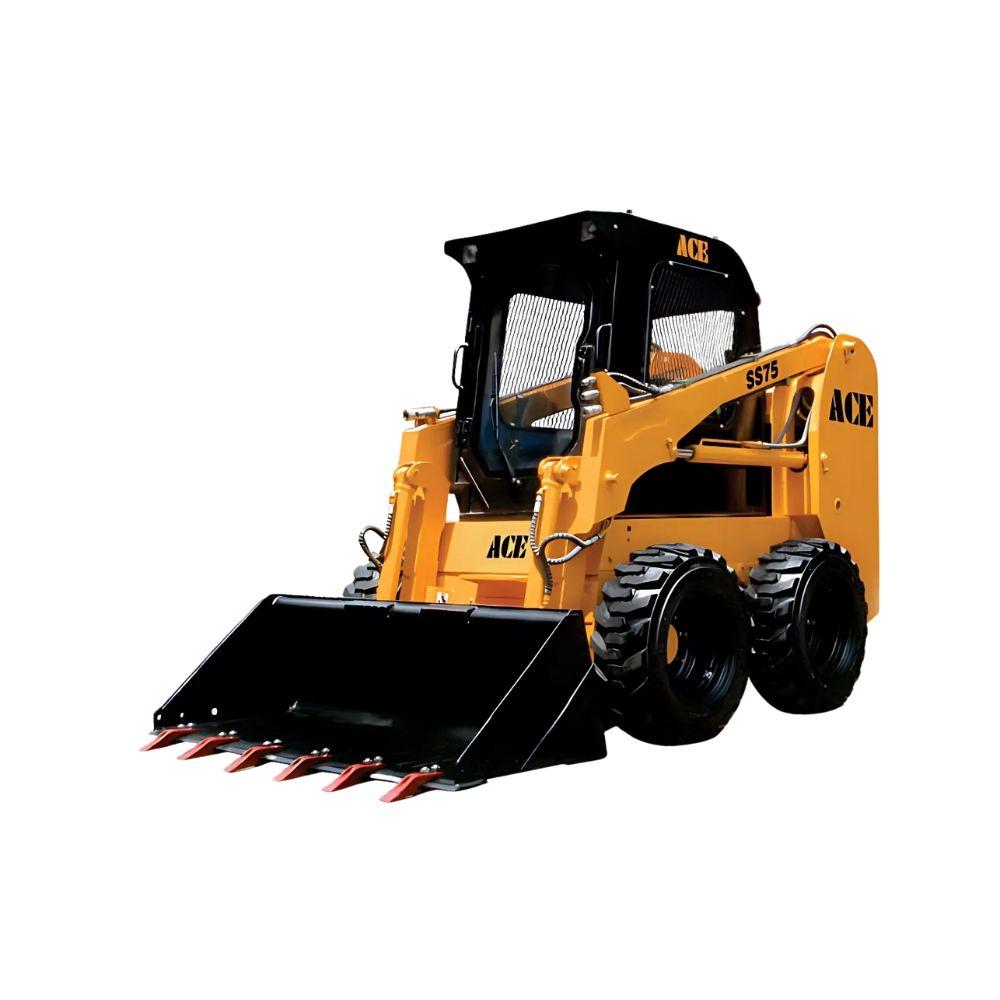

ACE SS 75 Skid Steer Loader
Action Construction Equipment Limited
Haryana
The ACE SS 75 Wheeled Loader is a versatile and powerful machine designed for a range of applications in construction, infrastructure, and mining. With capacities ranging from 1 cu.m. to 3 cu.m., this skid steer loader excels in loading, moving, and grading loose aggregates efficiently. Its compact design makes it ideal for operating in tight spaces and performing precise grading tasks. In mining operations, the SS 75 effectively manages bulk materials, enhancing productivity and operational efficiency. It is also crucial for heavy industry tasks, handling raw materials and waste with ease. The ACE SS 75 Wheeled Loader offers reliable performance and flexibility, making it an invaluable asset for various construction and industrial projects.
ACE SS 75 Skid Steer Loader
Action Construction Equipment Limited
Haryana
The ACE SS 75 Wheeled Loader is a versatile and powerful machine designed for a range of applications in construction, infrastructure, and mining. With capacities ranging from 1 cu.m. to 3 cu.m., this skid steer loader excels in loading, moving, and grading loose aggregates efficiently. Its compact design makes it ideal for operating in tight spaces and performing precise grading tasks. In mining operations, the SS 75 effectively manages bulk materials, enhancing productivity and operational efficiency. It is also crucial for heavy industry tasks, handling raw materials and waste with ease. The ACE SS 75 Wheeled Loader offers reliable performance and flexibility, making it an invaluable asset for various construction and industrial projects.
Product Description
The ACE SS 75 Wheeled Loader is a versatile and powerful machine designed for a range of application...
View the full brochure
ACE SS 75 Skid Steer Loader Comparison with Similar Wheel Loader
ACE SS 75 Skid Steer Loader
Engine Brand
ACE / Simpson
Engine Model
A50 / TSJ436
Engine Power
50 / 60 / 75HP
Max Torque
-
Rated Speed
2100 / 2200rpm
Fuel Tank Capacity
55L
Emission Standard
Bharat (TREM) Stage III A / CEV / BSIII / Tier 2 / BS-III
Transmission Type
Infinitely variable hydrostatic drive
Max Travel Speed
10km/h
Operating Weight
2.85Ton
Rated Operating Capacity
750kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1500kg
Hydraulic Flow Rate
82L/min
Hydraulic Pressure
-
Hydraulic System Capacity
65L
Max Dump Height
2.29m
Max Hinge Pin Height
3.15m
Max Reach At Full Height
0.68m
Reach At Ground Level
-
Bucket Capacity
0.4m³
Loader Arm Breakout Force
-
Dump Angle
40°
Lift Path
-
Overall Length
3.62m
Overall Width
1.645m
Overall Height
2.11m
Wheelbase
1.01m
Ground Clearance
185mm
Turning Radius
-
Displacement
-
Hydraulic Oil Capacity
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
-
Max Travel Speed (r)
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Max Load Over Height
-
Loader Bucket Capacity
-
Front Axle Oscillation
-
Battery Voltage
-
Standard Tires (front/rear)
-

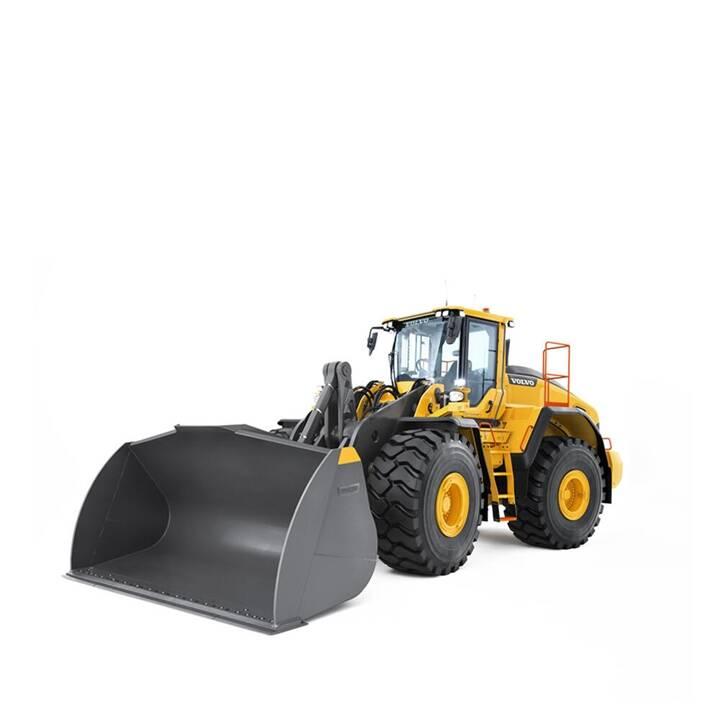

Volvo L350H Wheel Loader
Engine Brand
Volvo
Engine Model
D16E
Engine Power
397kW
Max Torque
2550Nm
Rated Speed
1700–1800rpm
Fuel Tank Capacity
540L
Emission Standard
-
Transmission Type
Volvo HTL 500, APS, ECM controlled
Max Travel Speed
-
Operating Weight
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
827L/min
Hydraulic Pressure
29Bar
Hydraulic System Capacity
-
Max Dump Height
-
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
-
Lift Path
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
-
Ground Clearance
550mm
Turning Radius
-
Displacement
16.1L
Hydraulic Oil Capacity
365L
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
37.7km/h
Max Travel Speed (r)
37.7km/h
Service Brake Type
Dual circuit, oil-cooled, wet disc brakes
Parking Brake Type
Dry, spring-applied, electro-hydraulically released
Steering Type
Load-sensing hydrostatic articulated steering
Steering Angle
±37°
Oscillation Angle
±12°
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Max Load Over Height
-
Loader Bucket Capacity
-
Front Axle Oscillation
±12°
Battery Voltage
24V
Standard Tires (front/rear)
35/65 R33 L4
Volvo L260H Wheel Loader
Engine Brand
Volvo
Engine Model
D13E
Engine Power
310kW
Max Torque
2343Nm
Rated Speed
1400–1900rpm
Fuel Tank Capacity
366L
Emission Standard
-
Transmission Type
Volvo Automatic Power Shift (APS), 4-speed
Max Travel Speed
-
Operating Weight
33.76kg
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
252L/min
Hydraulic Pressure
290Bar
Hydraulic System Capacity
-
Max Dump Height
3.33m
Max Hinge Pin Height
-
Max Reach At Full Height
2.28m
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
311kN
Dump Angle
-
Lift Path
-
Overall Length
9.31m
Overall Width
3.58m
Overall Height
6.46m
Wheelbase
-
Ground Clearance
600mm
Turning Radius
-
Displacement
12.8L
Hydraulic Oil Capacity
226L
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
36.5km/h
Max Travel Speed (r)
36.1km/h
Service Brake Type
Wet disc, oil-cooled, outboard-mounted
Parking Brake Type
Dry disc, electro-hydraulic
Steering Type
Load-sensing hydrostatic articulated
Steering Angle
37°
Oscillation Angle
15°
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Max Load Over Height
6.46m
Loader Bucket Capacity
6.1m³
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
29.5 R25 L4
Volvo L150H Wheel Loader
Engine Brand
Volvo
Engine Model
D13F
Engine Power
300kW
Max Torque
1999Nm
Rated Speed
1300rpm
Fuel Tank Capacity
366L
Emission Standard
-
Transmission Type
Volvo HTL 223
Max Travel Speed
-
Operating Weight
26.47kg
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
180L/min
Hydraulic Pressure
290Bar
Hydraulic System Capacity
-
Max Dump Height
3.15m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
201.2kN
Dump Angle
-
Lift Path
-
Overall Length
8.58m
Overall Width
2.93m
Overall Height
3.51m
Wheelbase
-
Ground Clearance
0.61mm
Turning Radius
-
Displacement
12.8L
Hydraulic Oil Capacity
156L
Number Of Gears (f/r)
-
Max Travel Speed (f)
38km/h
Max Travel Speed (r)
-
Service Brake Type
Wet Disc
Parking Brake Type
Dry Disc
Steering Type
Articulated
Steering Angle
37°
Oscillation Angle
15°
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
7700kg
Max Load Over Height
-
Loader Bucket Capacity
4.0m³
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
26.5 R25 L3
Volvo L120H Wheel Loader
Engine Brand
Volvo
Engine Model
D8L
Engine Power
190kW
Max Torque
1125Nm
Rated Speed
1700 - 2240rpm
Fuel Tank Capacity
270L
Emission Standard
-
Transmission Type
Volvo HTE 206F APS
Max Travel Speed
-
Operating Weight
20.21kg
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
128L/min
Hydraulic Pressure
290Bar
Hydraulic System Capacity
-
Max Dump Height
2.84m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
163.7kN
Dump Angle
-
Lift Path
-
Overall Length
8.93m
Overall Width
2.99m
Overall Height
3.33m
Wheelbase
-
Ground Clearance
435mm
Turning Radius
-
Displacement
7.8L
Hydraulic Oil Capacity
140L
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
40km/h
Service Brake Type
Wet disc, dual circuit with accumulators
Parking Brake Type
Wet multi-disc, spring applied, electro-hydraulic release
Steering Type
Hydrostatic articulated, load-sensing
Steering Angle
40°
Oscillation Angle
13°
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Max Load Over Height
4.66m
Loader Bucket Capacity
3.8m³
Front Axle Oscillation
13°
Battery Voltage
24V
Standard Tires (front/rear)
23.5 R25 L3
