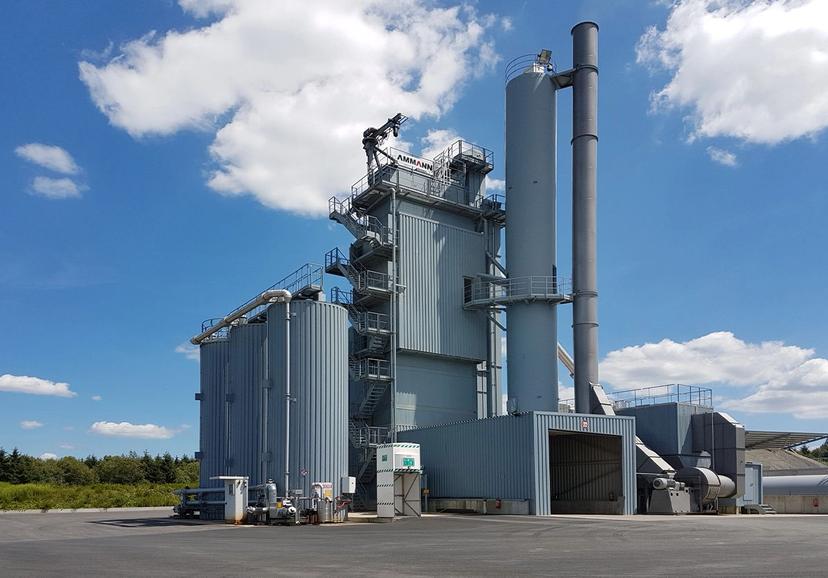

Ammann ABA Unibatch 180P Asphalt Batch Mix Plant
Ammann India Private Limited
Gujarat
The Ammann ABA Unibatch 180P Batch Asphalt-Mixing Plant is a high-performance, eco-friendly solution designed for modern road construction projects. With its advanced RAP (Reclaimed Asphalt Pavement) technology, it supports sustainable asphalt production by efficiently reusing materials, reducing waste, and lowering costs. This plant is ideal for highway construction, airport runways, expressway expansions, and municipal road resurfacing, ensuring high-quality asphalt with precise mixing. Its innovative design allows for flexibility in asphalt formulations, meeting various project requirements. The ABA Unibatch 180P also integrates energy-efficient systems, optimizing fuel consumption while maintaining superior output. Whether for large-scale infrastructure projects or urban road maintenance, this asphalt-mixing plant delivers consistent, reliable performance, making it a preferred choice for contractors and road developers worldwide.
Ammann ABA Unibatch 180P Asphalt Batch Mix Plant
Ammann India Private Limited
Gujarat
The Ammann ABA Unibatch 180P Batch Asphalt-Mixing Plant is a high-performance, eco-friendly solution designed for modern road construction projects. With its advanced RAP (Reclaimed Asphalt Pavement) technology, it supports sustainable asphalt production by efficiently reusing materials, reducing waste, and lowering costs. This plant is ideal for highway construction, airport runways, expressway expansions, and municipal road resurfacing, ensuring high-quality asphalt with precise mixing. Its innovative design allows for flexibility in asphalt formulations, meeting various project requirements. The ABA Unibatch 180P also integrates energy-efficient systems, optimizing fuel consumption while maintaining superior output. Whether for large-scale infrastructure projects or urban road maintenance, this asphalt-mixing plant delivers consistent, reliable performance, making it a preferred choice for contractors and road developers worldwide.
Product Description
The Ammann ABA Unibatch 180P Batch Asphalt-Mixing Plant is a high-performance, eco-friendly solution...
Ammann ABA Unibatch 180P Asphalt Batch Mix Plant Comparison with Similar Asphalt Batching Plant
Ammann ABA Unibatch 180P Asphalt Batch Mix Plant
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
AFA 3055
Filter Surface Area
644m²
Emission Level
-
Bitumen Tank Capacity
-
Bitumen Pump Type
-
Thermal Oil System Capacity
-
Plant Type
180P
Max Production Capacity
180TPH
Batch Size
2200kg
Cycle Time
-
Dryer Drum Diameter
2.39m
Dryer Drum Length
10m
Burner Capacity
16MW
Fuel Type
-
Hot Mix Storage Silo Capacity
Up to 500T
Cold Feed Bins (no. Of Bins)
-
Cold Feed Bin Capacity
-
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4 / 5
Screening Capacity
-
Hot Aggregate Bin Capacity
Up to 53T
No. Of Hot Aggregate Bins
-
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
AMIX 1.22
Mixer Capacity
2200kg
Automation System
as1 Control System
Remote Monitoring
Available
Sany SABP145 Asphalt Batching Plant
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
-
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
60m³
Bitumen Pump Type
Thermal Oil System Capacity
500000kcal/h
Plant Type
SABP145
Max Production Capacity
145TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
-
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
3m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
-
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
Standard
Mixer Capacity
1700kg
Automation System
SYMC
Remote Monitoring
Y
Sany SABP120 Asphalt Batching Plant
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
Dedust system
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
Asphalt Metering Pump
Thermal Oil System Capacity
500000kcal/h
Plant Type
SABP120
Max Production Capacity
120TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
Diesel
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
-
Mixer Capacity
1700kg
Automation System
PLC supported by 1 CPU or more
Remote Monitoring
Y

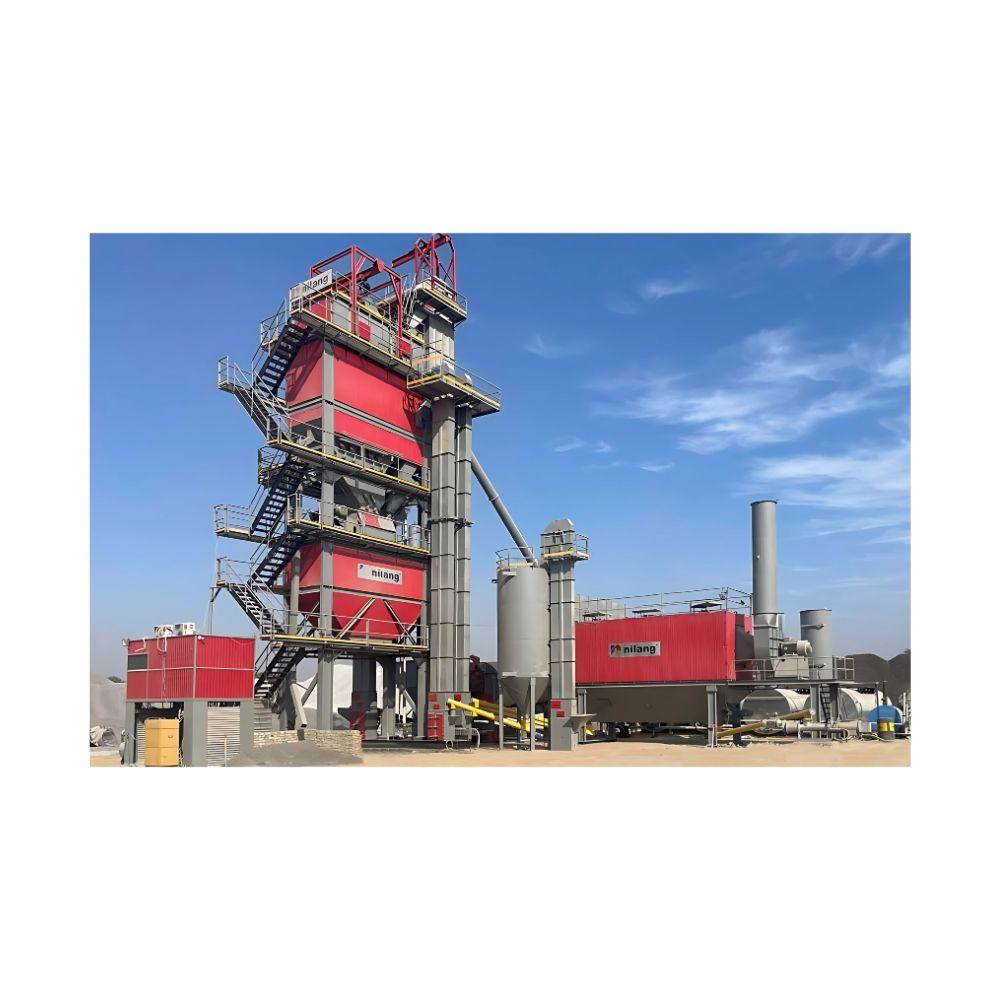

Nilang ABP 200 Asphalt Batch Mix Plant
Mixing Time
-
Primary Pollution Control
Reverse Air Flow/Cyclonic Separator
Secondary Pollution Control
Bag House Filter Reverse Air Flow
Filter Surface Area
535m²
Emission Level
-
Bitumen Tank Capacity
20 / 30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
600000 / 800000kcal/h
Plant Type
ABP 200
Max Production Capacity
200TPH
Batch Size
2500kg
Cycle Time
45seconds
Dryer Drum Diameter
2.1m
Dryer Drum Length
8m
Burner Capacity
14MW
Fuel Type
Diesel/LDO/Furnace Oil
Hot Mix Storage Silo Capacity
40 / 80T
Cold Feed Bins (no. Of Bins)
4 / 5
Cold Feed Bin Capacity
-
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
220TPH
Screening Method
Inclined Liner Vibration
No. Of Decks
5
Screening Capacity
260TPH
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5 + 1
Aggregate Weighing Capacity
3200kg
Filler Weighing Capacity
500kg
Bitumen Weighing Capacity
350kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
2500kg
Automation System
Siemens PLC (SCADA optional)
Remote Monitoring
Available
Nilang ABP 120 Combat Asphalt Batch Mix Plant
Mixing Time
seconds
Primary Pollution Control
Reverse Air Flow Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
300m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Plant Type
Stationary
Max Production Capacity
140TPH
Batch Size
1500kg
Cycle Time
45seconds
Dryer Drum Diameter
1.8m
Dryer Drum Length
7.5m
Burner Capacity
12MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15 / 50 / 100T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
30m³
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
140TPH
Screening Method
Vibratory (inferred)
No. Of Decks
2
Screening Capacity
140TPH
Hot Aggregate Bin Capacity
T
No. Of Hot Aggregate Bins
4
Aggregate Weighing Capacity
2000kg
Filler Weighing Capacity
300kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
1500kg
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
