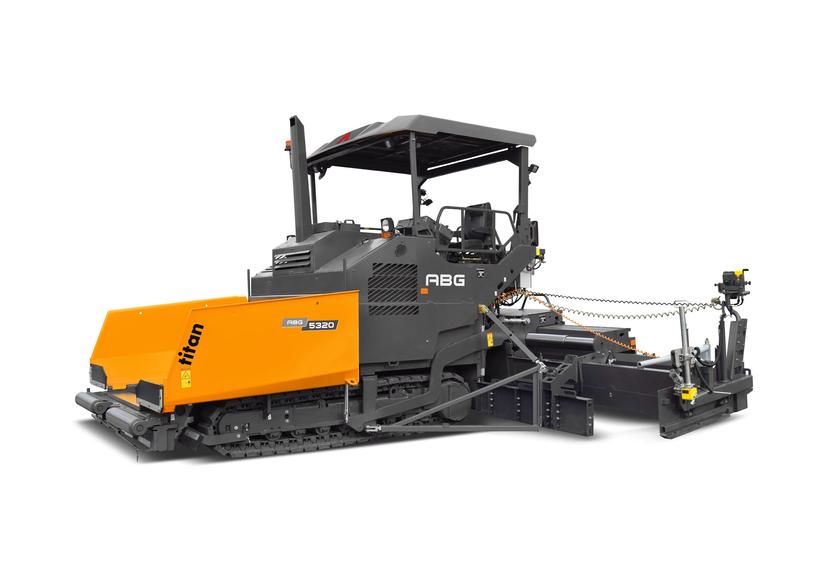

Ammann ABG 5320 Tracked Paver
Ammann India Private Limited
Gujarat
The Ammann ABG 5320 Tracked Paver is a high-performance asphalt paver designed for large-scale infrastructure projects. Powered by a Bharat Stage IV engine, it ensures low emissions and fuel efficiency, making it an environmentally friendly choice. With a basic paving width of 2.5 meters and an expandable capacity of up to 7.5 meters, it is ideal for highways, urban roads, airport runways, and industrial zones. Its impressive paving output of 600 tons per hour enhances productivity, reducing project timelines. The tracked undercarriage provides excellent stability, ensuring uniform paving on various terrains. Whether for expressways, toll roads, or logistics hubs, this machine delivers precision, durability, and efficiency in every project. The Ammann ABG 5320 is a reliable solution for modern road construction needs.
Ammann ABG 5320 Tracked Paver
Ammann India Private Limited
Gujarat
The Ammann ABG 5320 Tracked Paver is a high-performance asphalt paver designed for large-scale infrastructure projects. Powered by a Bharat Stage IV engine, it ensures low emissions and fuel efficiency, making it an environmentally friendly choice. With a basic paving width of 2.5 meters and an expandable capacity of up to 7.5 meters, it is ideal for highways, urban roads, airport runways, and industrial zones. Its impressive paving output of 600 tons per hour enhances productivity, reducing project timelines. The tracked undercarriage provides excellent stability, ensuring uniform paving on various terrains. Whether for expressways, toll roads, or logistics hubs, this machine delivers precision, durability, and efficiency in every project. The Ammann ABG 5320 is a reliable solution for modern road construction needs.
Product Description
The Ammann ABG 5320 Tracked Paver is a high-performance asphalt paver designed for large-scale infra...
View the full brochure
Ammann ABG 5320 Tracked Paver Comparison with Similar Asphalt Paver

Ammann ABG 5320 Tracked Paver
Engine Brand
Volvo (Deutz)
Engine Model
TAD 570VE
Engine Power
140.81HP
Rated Speed
2300rpm
Fuel Tank Capacity
230L
Max Travel Speed
3.3km/h
Max Paving Speed
17m/min
Gradeability
-
Paving Capacity
600t/h
Max Paving Thickness
300mm
Heating Mode
-
Hydraulic Oil Capacity
-
Hopper Capacity
12t
Screed Width Basic
2.5m
Screed Width Max
7m
Tampers
-
Tamp Frequency
-
Tamp Amplitude
-
Oscillation Frequency
-
Overall Length
-
Overall Width
-
Overall Height
-
Operating Weight
17.41Tons
Shipping Weight
13.82

Ammann AFT 500 Tracked Paver
Engine Brand
Cummins
Engine Model
6 BTAA 5.9 C
Engine Power
150.19HP
Rated Speed
2200rpm
Fuel Tank Capacity
220L
Max Travel Speed
4.5km/h
Max Paving Speed
37m/min
Gradeability
-
Paving Capacity
500t/h
Max Paving Thickness
300mm
Heating Mode
-
Hydraulic Oil Capacity
-
Hopper Capacity
12t
Screed Width Basic
2.55m
Screed Width Max
6.5m
Tampers
-
Tamp Frequency
-
Tamp Amplitude
-
Oscillation Frequency
-
Overall Length
-
Overall Width
-
Overall Height
-
Operating Weight
15.0Tons
Shipping Weight
-

Ammann ABG 7320 Tracked Paver
Engine Brand
Volvo (Deutz)
Engine Model
D6J
Engine Power
187.74HP
Rated Speed
2000rpm
Fuel Tank Capacity
250L
Max Travel Speed
3.3km/h
Max Paving Speed
20m/min
Gradeability
-
Paving Capacity
700t/h
Max Paving Thickness
300mm
Heating Mode
-
Hydraulic Oil Capacity
-
Hopper Capacity
13.5t
Screed Width Basic
2.55m
Screed Width Max
9m
Tampers
-
Tamp Frequency
-
Tamp Amplitude
-
Oscillation Frequency
-
Overall Length
-
Overall Width
-
Overall Height
-
Operating Weight
21.02Tons
Shipping Weight
-

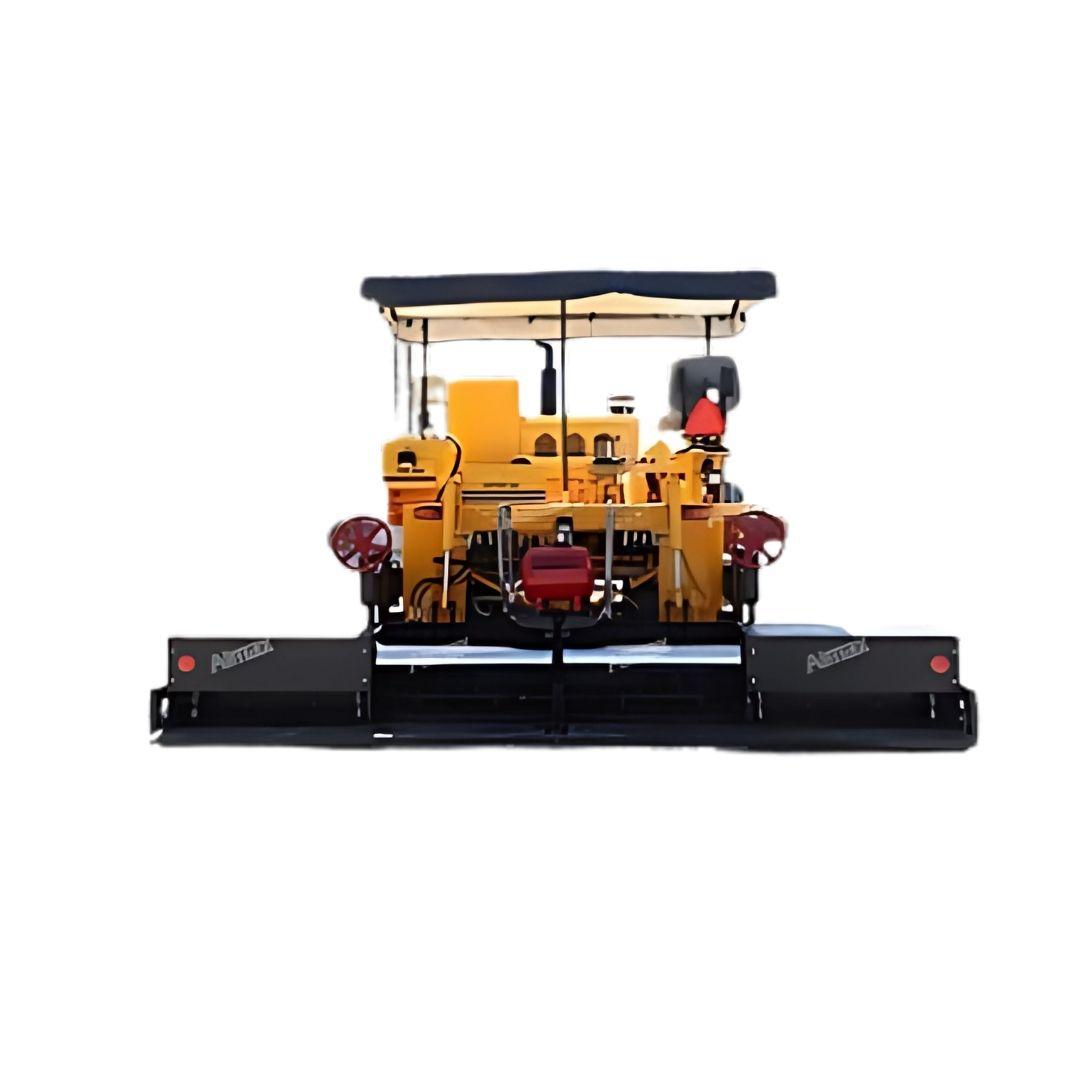

Aimax Asphalt Paver Machine
Engine Brand
Kirloskar / Ashok Leyland
Engine Model
-
Engine Power
-
Rated Speed
-
Fuel Tank Capacity
-
Max Travel Speed
-
Max Paving Speed
-
Gradeability
-
Paving Capacity
150 to 200t/h
Max Paving Thickness
-
Heating Mode
-
Hydraulic Oil Capacity
-
Hopper Capacity
-
Screed Width Basic
2.5m
Screed Width Max
4.5m
Tampers
-
Tamp Frequency
-
Tamp Amplitude
-
Oscillation Frequency
-
Overall Length
-
Overall Width
-
Overall Height
-
Operating Weight
9 to 9.5Tons
Shipping Weight
-

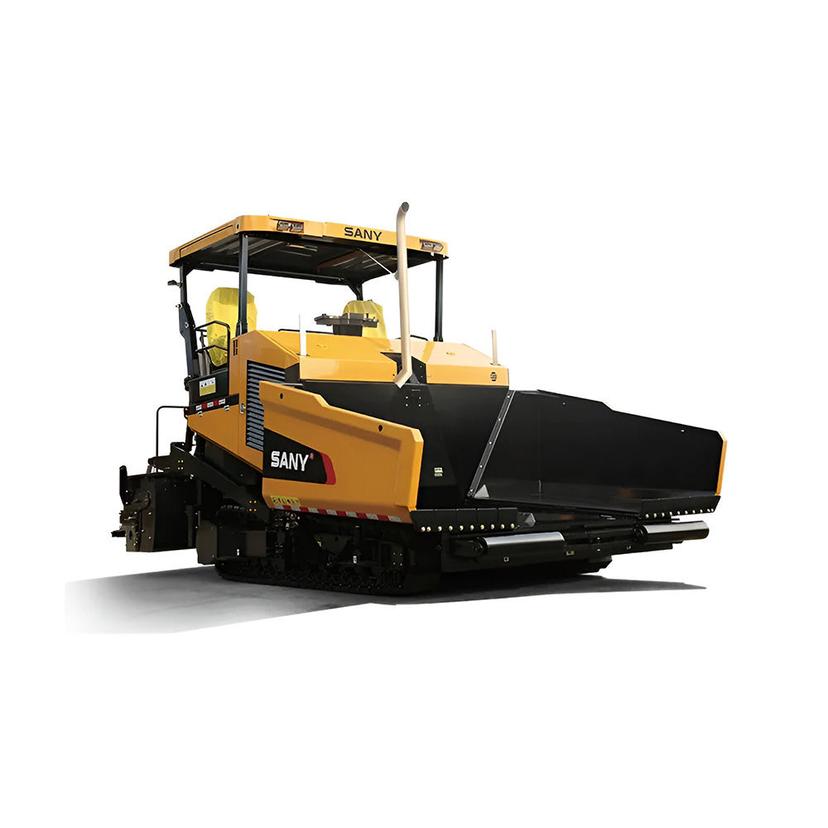

Sany SAP100C-10 Asphalt Paver
Engine Brand
-
Engine Model
-
Engine Power
225.2HP
Rated Speed
2200rpm
Fuel Tank Capacity
340L
Max Travel Speed
0-4.5km/h
Max Paving Speed
25m/min
Gradeability
20%
Paving Capacity
900t/h
Max Paving Thickness
350mm
Heating Mode
Electrical
Hydraulic Oil Capacity
-
Hopper Capacity
8.5 m³ (volume data)t
Screed Width Basic
3m
Screed Width Max
10.2m
Tampers
1
Tamp Frequency
0-25
Tamp Amplitude
0/2/4/6/8
Oscillation Frequency
0-50
Overall Length
7.020m
Overall Width
3.210m
Overall Height
3.260m
Operating Weight
-
Shipping Weight
-
