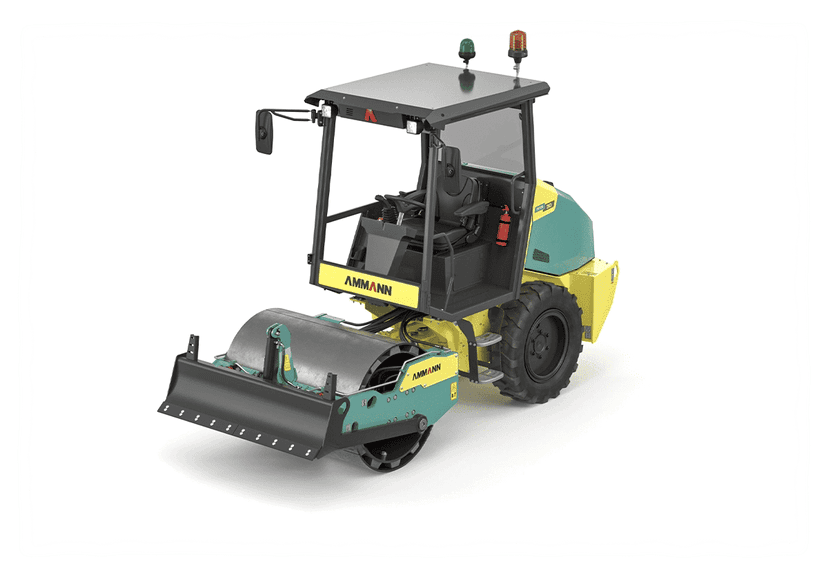

Ammann ARS 110.2 Single Drum Roller
The Ammann ARS 110.2 Single Drum Roller is a powerful compaction machine designed for superior performance in road construction, industrial sites, railway projects, airport runways, and land development. Equipped with a CEV Stage V engine, it ensures fuel efficiency and lower emissions while delivering high compaction force. With a drum width of 2130 mm and an operating weight of 11,100 kg, this roller provides deep, uniform compaction for soil and asphalt, enhancing surface durability. Its advanced technology ensures stability, efficiency, and operator comfort, making it ideal for large-scale infrastructure projects. Whether preparing foundations, stabilizing roads, or compacting subgrades, the ARS 110.2 is built to handle demanding tasks with ease, improving productivity and project quality. Choose AMMANN for reliable, high-performance compaction solutions.
Ammann ARS 110.2 Single Drum Roller
The Ammann ARS 110.2 Single Drum Roller is a powerful compaction machine designed for superior performance in road construction, industrial sites, railway projects, airport runways, and land development. Equipped with a CEV Stage V engine, it ensures fuel efficiency and lower emissions while delivering high compaction force. With a drum width of 2130 mm and an operating weight of 11,100 kg, this roller provides deep, uniform compaction for soil and asphalt, enhancing surface durability. Its advanced technology ensures stability, efficiency, and operator comfort, making it ideal for large-scale infrastructure projects. Whether preparing foundations, stabilizing roads, or compacting subgrades, the ARS 110.2 is built to handle demanding tasks with ease, improving productivity and project quality. Choose AMMANN for reliable, high-performance compaction solutions.
Product Description
The Ammann ARS 110.2 Single Drum Roller is a powerful compaction machine designed for superior perfo...
View the full brochure
Ammann ARS 110.2 Single Drum Roller Comparison with Similar Single Drum Soil Compactor
Ammann ARS 110.2 Single Drum Roller
Drum Shell Thickness
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
2.13m
Drum Diameter
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Engine Brand
Ashok Leyland
Engine Model
H4C410122
Engine Power
99.2HP
Max Torque
-
Rated Speed
1400rpm
Displacement
-
Fuel Tank Capacity
310L
Transmission Type
Hydrostatic
Max Travel Speed
11.5km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
36°
Oscillation Angle
10°
Turning Radius (inner)
3.25m
Turning Radius (outer)
-
Operating Weight
11.1Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
29.1kg/cm
Frequency (low)
32Hz
Frequency (high)
35Hz
Amplitude (low)
0.9mm
Amplitude (high)
1.85mm
Centrifugal Force
275kN
Max Applied Force
275kN
Without Drum Drive
35%
With Drum Drive
-
Battery Voltage
-
Battery Capacity
-
LiuGong 611 Soil Compactor
Drum Shell Thickness
-
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Operating Weight
11.0 Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Battery Voltage
12 V
Battery Capacity
150 Ah
Dynapac CA405D CEV-V Single drum vibratory rollers
Drum Shell Thickness
0.035m
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
13.960Ton
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Battery Voltage
-
Battery Capacity
-
Ammann ARS 30 PD Single Drum Roller
Drum Shell Thickness
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
1.2m
Drum Diameter
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Engine Brand
Kubota
Engine Model
V2403-CR-T
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
98L
Transmission Type
-
Max Travel Speed
9.5km/h
Service Brake Type
-
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
30°
Oscillation Angle
10°
Turning Radius (inner)
2.8m
Turning Radius (outer)
-
Operating Weight
3.49Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
29Hz
Frequency (high)
38Hz
Amplitude (low)
1.5mm
Amplitude (high)
-
Centrifugal Force
68kN
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Battery Voltage
-
Battery Capacity
-
Ammann ARS 70 Single Drum Roller
Drum Shell Thickness
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
1.68m
Drum Diameter
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Engine Brand
Kubota
Engine Model
V3307 CR-TE5
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
130L
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
30°
Oscillation Angle
9°
Turning Radius (inner)
2.58m
Turning Radius (outer)
-
Operating Weight
6.49Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
25Hz
Frequency (high)
36Hz
Amplitude (low)
1.6mm
Amplitude (high)
0.7mm
Centrifugal Force
131kN
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Battery Voltage
-
Battery Capacity
-
