Bull GRANDIA Backhoe Loader
Bull Machines Private Limited
Tamil Nadu

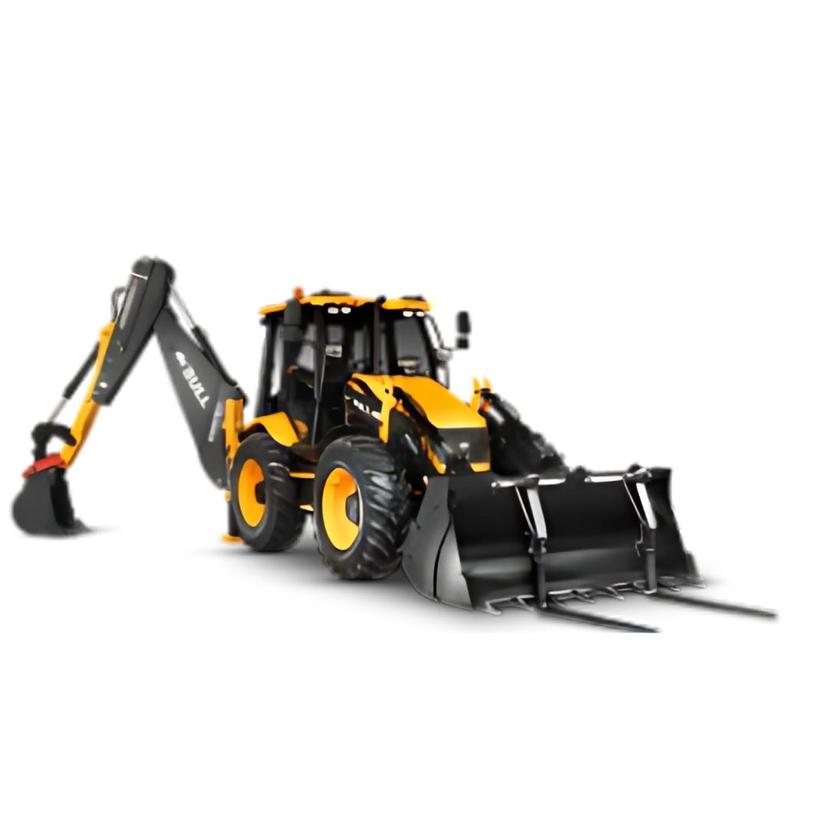

The BULL GRANDIA Backhoe Loader is powered by a PERKINS 1104D-44TA diesel engine (4400cc), delivering 74.5 kW (100 HP) at 2200 RPM and 410 Nm torque at 1400 RPM. It features a CARRARO automatic transmission with a 4-speed fully synchromesh gearbox and torque converter. The loader offers a standard bucket capacity of 1.1 cu.m and a breakout force of 8183 kgf. The excavator provides a maximum dig depth of 4.6 meters, extendable to 5.6 meters. SMART technology hydraulics deliver 3335 psi pressure with 145 lpm pump flow. The ROPS and FOPS certified cabin ensures operator safety and comfort, featuring dual independent brake pedals and three steering modes. With a total operating weight of 9700 kg, BULL GRANDIA is equipped for versatile operations across construction, agriculture, and infrastructure sectors.
Bull GRANDIA Backhoe Loader
Bull Machines Private Limited
Tamil Nadu
The BULL GRANDIA Backhoe Loader is powered by a PERKINS 1104D-44TA diesel engine (4400cc), delivering 74.5 kW (100 HP) at 2200 RPM and 410 Nm torque at 1400 RPM. It features a CARRARO automatic transmission with a 4-speed fully synchromesh gearbox and torque converter. The loader offers a standard bucket capacity of 1.1 cu.m and a breakout force of 8183 kgf. The excavator provides a maximum dig depth of 4.6 meters, extendable to 5.6 meters. SMART technology hydraulics deliver 3335 psi pressure with 145 lpm pump flow. The ROPS and FOPS certified cabin ensures operator safety and comfort, featuring dual independent brake pedals and three steering modes. With a total operating weight of 9700 kg, BULL GRANDIA is equipped for versatile operations across construction, agriculture, and infrastructure sectors.
Product Description
The BULL GRANDIA Backhoe Loader is powered by a PERKINS 1104D-44TA diesel engine (4400cc), deliverin...
View the full brochure
Bull GRANDIA Backhoe Loader Comparison with Similar Backhoe Loader
Bull GRANDIA Backhoe Loader
Engine Brand
PERKINS
Engine Model
1104D-44TA
Engine Power
100HP
Max Torque
410Nm
Rated Speed
2200rpm
Fuel Tank Capacity
115L
Emission Standard
EU NRMM 97/68/EC EURO III 3A
Transmission Type
Automatic
Max Travel Speed
36km/h
Operating Weight
9.7Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
145 L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
120L
Max Dump Height
2.93m
Max Hinge Pin Height
3.61m
Max Reach At Full Height
1.42 m
Reach At Ground Level
1.60m
Bucket Capacity
1.1m³
Loader Arm Breakout Force
5251kgf
Dump Angle
45°
Lift Path
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Wheelbase
2.22m
Ground Clearance
480mm
Turning Radius
-
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Max Digging Depth
-
Max Reach At Ground
-
Max Loading Height
-
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Load Over Height
-
Loader Bucket Capacity
-
Shovel Breakout Force
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Kubota BLX 75 Backhoe Loader
Engine Brand
Escorts Kubota
Engine Model
BLX75
Engine Power
75HP
Max Torque
350Nm
Rated Speed
2000rpm
Fuel Tank Capacity
134L
Emission Standard
-
Transmission Type
Syncro shift reversing shuttle
Max Travel Speed
36.0km/h
Operating Weight
7.7Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
225Bar
Hydraulic System Capacity
-
Max Dump Height
2.8m
Max Hinge Pin Height
3.6m
Max Reach At Full Height
1.85m
Reach At Ground Level
-
Bucket Capacity
0.26m³
Loader Arm Breakout Force
5350kgf
Dump Angle
-
Lift Path
-
Overall Length
6.2m
Overall Width
2.45m
Overall Height
3.7m
Wheelbase
-
Ground Clearance
360mm
Turning Radius
-
Displacement
-
Number Of Gears (forward/reverse)
4F/4R
Torque Converter Stall Ratio
-
Service Brake Type
Hydraulically actuated, oil-immersed multi-disc
Parking Brake Type
Hand-operated caliper disc
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
12°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
1554kg
Max Digging Depth
4.7m
Max Reach At Ground
6.9m
Max Loading Height
4.28m
Bucket Breakout Force
6450kgf
Dipper Breakout Force
3200kgf
Max Load Over Height
3.45m
Loader Bucket Capacity
1.1m³
Shovel Breakout Force
5850kgf
Power Steering
Yes
Battery Voltage
12V / 150AhV
Front Axle Oscillation
12°
Standard Tyres (front/rear)
12.5x18-12PR / 16.9x28-12PR
CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
Variable Displacement Pump
Max Travel Speed
37km/h
Operating Weight
7.98 Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.794m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Dump Angle
-
Lift Path
-
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Wheelbase
-
Ground Clearance
-
Turning Radius
-
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Loading Height
4.015m
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Load Over Height
-
Loader Bucket Capacity
1.05m³
Shovel Breakout Force
5,370kgf
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Fuel Tank Capacity
150L
Emission Standard
-
Transmission Type
4F-2R Manual Power shift
Max Travel Speed
36.8km/h
Operating Weight
7.845Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Hydraulic System Capacity
-
Max Dump Height
2.85m
Max Hinge Pin Height
3.51m
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
0.26m³
Loader Arm Breakout Force
5300kgf
Dump Angle
-
Lift Path
-
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Wheelbase
-
Ground Clearance
440mm
Turning Radius
-
Displacement
4.156L
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Max Lifting Capacity
1800kg
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Loading Height
4.30m
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Load Over Height
3.33m
Loader Bucket Capacity
1.1m³
Shovel Breakout Force
5250kgf
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
Manitou MBL 745 HT Backhoe Loader
Engine Brand
Koel
Engine Model
4R1190TA-H.T Turbo Charged Water Cooled BS IV
Engine Power
74HP
Max Torque
400 NmNm
Rated Speed
2200 rpmrpm
Fuel Tank Capacity
120 L
Emission Standard
-
Transmission Type
Carraro
Max Travel Speed
40km/h
Operating Weight
7.91 Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
119 L/min
Hydraulic Pressure
225Bar
Hydraulic System Capacity
-
Max Dump Height
2.78m
Max Hinge Pin Height
3.57m
Max Reach At Full Height
0.71 mm
Reach At Ground Level
-
Bucket Capacity
0.27 m³
Loader Arm Breakout Force
4691kgf
Dump Angle
-
Lift Path
-
Overall Length
7.33 m
Overall Width
2.33 m
Overall Height
3.79 m
Wheelbase
-
Ground Clearance
280 mmmm
Turning Radius
-
Displacement
4.76 L
Number Of Gears (forward/reverse)
4 / 4
Torque Converter Stall Ratio
2.64:1
Service Brake Type
Wet disc brakes
Parking Brake Type
hydraulic-actuated wet disc brake
Steering Type
Power Steering
Steering Angle
16°°
Oscillation Angle
16°°
Turning Radius (braked)
5 mm
Turning Radius (unbraked)
5.70 mm
Max Lifting Capacity
3467 kgkg
Max Digging Depth
4.741m
Max Reach At Ground
5 m
Max Loading Height
3.87m
Bucket Breakout Force
5810kgf
Dipper Breakout Force
3942kgf
Max Load Over Height
3.57m
Loader Bucket Capacity
1 m³ m³
Shovel Breakout Force
5229kgf
Power Steering
Yes
Battery Voltage
12 V
Front Axle Oscillation
16 °°
Standard Tyres (front/rear)
12.5 x 18 - 12 PR / 16.9 x 28-12PR
