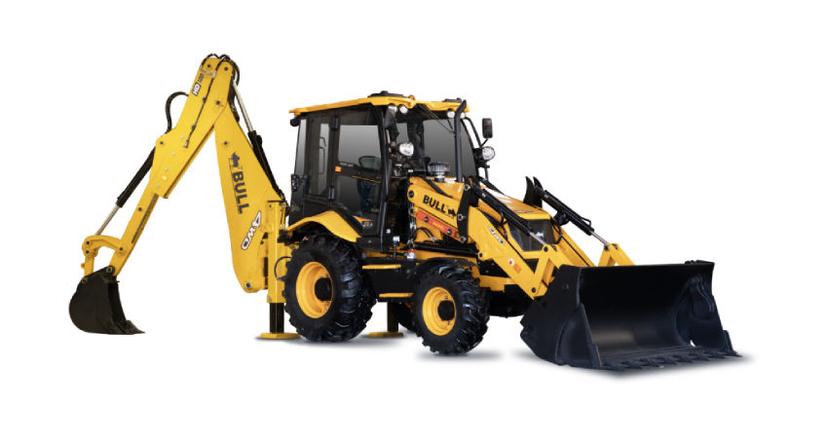

Bull HD100 4wd Backhoe Loader
The Bull HD100 4WD Backhoe Loader is engineered for outstanding performance, durability, and operator comfort across construction, mining, agriculture, and urban infrastructure projects. Powered by a robust PERKINS 1104D-44TA engine delivering 100 HP, it features a ZF powershift transmission for smooth gear shifts and 4WD capability for superior traction on rough terrains. With a 1.1 cu.m loader bucket and a digging depth of up to 5.6 meters (with extension), it handles heavy excavation and loading tasks effortlessly. The SMART technology hydraulics system ensures powerful lifting and faster cycle times, while the ROPS/FOPS-certified cab offers top-class safety and visibility. Compact yet heavy-duty, the Bull HD100 is the ideal choice for businesses seeking productivity, efficiency, and reliability in a backhoe loader.
Bull HD100 4wd Backhoe Loader
The Bull HD100 4WD Backhoe Loader is engineered for outstanding performance, durability, and operator comfort across construction, mining, agriculture, and urban infrastructure projects. Powered by a robust PERKINS 1104D-44TA engine delivering 100 HP, it features a ZF powershift transmission for smooth gear shifts and 4WD capability for superior traction on rough terrains. With a 1.1 cu.m loader bucket and a digging depth of up to 5.6 meters (with extension), it handles heavy excavation and loading tasks effortlessly. The SMART technology hydraulics system ensures powerful lifting and faster cycle times, while the ROPS/FOPS-certified cab offers top-class safety and visibility. Compact yet heavy-duty, the Bull HD100 is the ideal choice for businesses seeking productivity, efficiency, and reliability in a backhoe loader.
Product Description
The Bull HD100 4WD Backhoe Loader is engineered for outstanding performance, durability, and operato...
View the full brochure
Bull HD100 4wd Backhoe Loader Comparison with Similar Backhoe Loader
Bull HD100 4wd Backhoe Loader
Engine Brand
PERKINS
Engine Model
1104D-44TA
Engine Power
100HP
Max Torque
410Nm
Rated Speed
2200rpm
Fuel Tank Capacity
115L
Emission Standard
EU NRMM 97/68/EC, EURO III A
Transmission Type
ZF Power Shift Transmission
Max Travel Speed
40km/h
Operating Weight
8.2Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
145L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
120L
Max Dump Height
2.96m
Max Hinge Pin Height
3.61m
Max Reach At Full Height
1.42m
Reach At Ground Level
1.60m
Bucket Capacity
1.1m³
Loader Arm Breakout Force
5251kgf
Dump Angle
45°
Lift Path
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Wheelbase
2.22m
Ground Clearance
480mm
Turning Radius
8.8m
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Max Digging Depth
-
Max Reach At Ground
-
Max Loading Height
-
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Load Over Height
-
Loader Bucket Capacity
-
Shovel Breakout Force
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
Variable Displacement Pump
Max Travel Speed
37km/h
Operating Weight
7.98 Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.794m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Dump Angle
-
Lift Path
-
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Wheelbase
-
Ground Clearance
-
Turning Radius
-
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Loading Height
4.015m
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Load Over Height
-
Loader Bucket Capacity
1.05m³
Shovel Breakout Force
5,370kgf
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-4 Backhoe Loader
Engine Brand
Cat
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200rpm
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
Variable Displacement Pump
Max Travel Speed
40 km/h
Operating Weight
8.045Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.766m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
1.0m³
Loader Arm Breakout Force
5,370kgf
Dump Angle
-
Lift Path
-
Overall Length
5.681m
Overall Width
2.346m
Overall Height
3.757m
Wheelbase
-
Ground Clearance
-
Turning Radius
-
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Max Digging Depth
4.707m
Max Reach At Ground
5.603m
Max Loading Height
3.934m
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Load Over Height
-
Loader Bucket Capacity
1.0m³
Shovel Breakout Force
6,036kgf
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Mahindra Earth Master SX SMART 50 Backhoe Loader
Engine Brand
Mahindra
Engine Model
NEF Engine
Engine Power
49.2HP
Max Torque
235Nm
Rated Speed
2100rpm
Fuel Tank Capacity
120L
Emission Standard
-
Transmission Type
Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission
Max Travel Speed
33.3km/h
Operating Weight
7.477Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
103L/min
Hydraulic Pressure
21Bar
Hydraulic System Capacity
-
Max Dump Height
2.708m
Max Hinge Pin Height
-
Max Reach At Full Height
3.605m
Reach At Ground Level
-
Bucket Capacity
0.27m³
Loader Arm Breakout Force
4667kgf
Dump Angle
-
Lift Path
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
-
Ground Clearance
-
Turning Radius
-
Displacement
3.532L
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Service Brake Type
Hydraulically actuated, oil immersed multi-disc
Parking Brake Type
Hand operated mechanically actuated caliper type brake
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
4.943m
Turning Radius (unbraked)
5.037m
Max Lifting Capacity
-
Max Digging Depth
4.854m
Max Reach At Ground
5.658m
Max Loading Height
5.793m
Bucket Breakout Force
5146kgf
Dipper Breakout Force
-
Max Load Over Height
1.350m
Loader Bucket Capacity
1.1m³
Shovel Breakout Force
-
Power Steering
Yes
Battery Voltage
12V 100AhV
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00-16 16 PR / 16.9-28 12 PR
Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Fuel Tank Capacity
150L
Emission Standard
-
Transmission Type
4F-2R Manual Power shift
Max Travel Speed
36.8km/h
Operating Weight
7.845Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Hydraulic System Capacity
-
Max Dump Height
2.85m
Max Hinge Pin Height
3.51m
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
0.26m³
Loader Arm Breakout Force
5300kgf
Dump Angle
-
Lift Path
-
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Wheelbase
-
Ground Clearance
440mm
Turning Radius
-
Displacement
4.156L
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Max Lifting Capacity
1800kg
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Loading Height
4.30m
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Load Over Height
3.33m
Loader Bucket Capacity
1.1m³
Shovel Breakout Force
5250kgf
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
