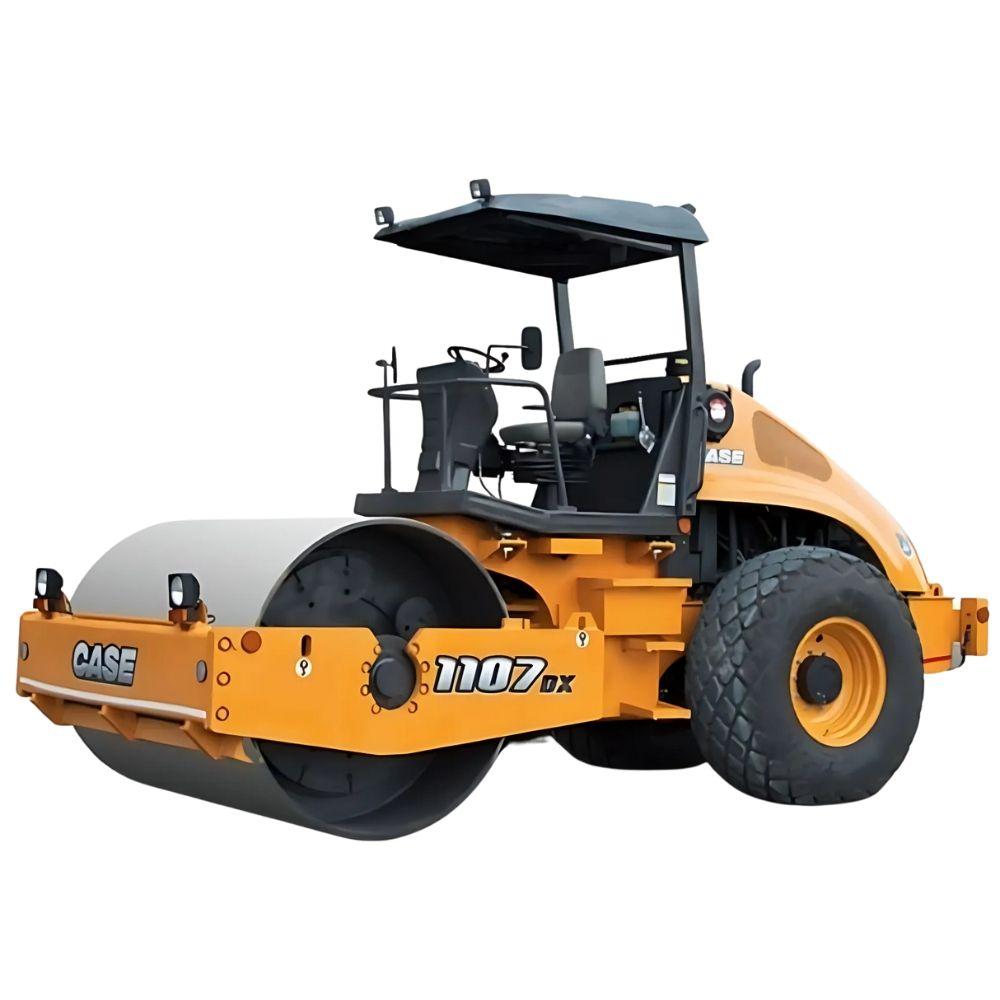

CASE 1107 EX-D Single Drum Soil Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 1107 EX-D Tandem Roller is a high-performance vibratory soil compactor designed for heavy-duty industrial and urban construction projects. With a robust weight of 10,900 kg and a front axle load of 5,900 kg, it ensures optimal soil compaction across various terrains. Powered by a turbocharged air intake with Internal EGR, the machine delivers reliable performance with its 31 Hz frequency and 5.5 km/hr working speed. The 70L hydraulic tank allows for efficient operation, while its drum drive system guarantees precise compaction. Ideal for large-scale road construction, urban infrastructure, and industrial sites, the CASE 1107 EX-D excels in compacting gravel, sand, and backfill material. Whether it’s for road paving or utility trench work, this roller is built to provide uniform, high-load compaction in demanding environments.
CASE 1107 EX-D Single Drum Soil Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 1107 EX-D Tandem Roller is a high-performance vibratory soil compactor designed for heavy-duty industrial and urban construction projects. With a robust weight of 10,900 kg and a front axle load of 5,900 kg, it ensures optimal soil compaction across various terrains. Powered by a turbocharged air intake with Internal EGR, the machine delivers reliable performance with its 31 Hz frequency and 5.5 km/hr working speed. The 70L hydraulic tank allows for efficient operation, while its drum drive system guarantees precise compaction. Ideal for large-scale road construction, urban infrastructure, and industrial sites, the CASE 1107 EX-D excels in compacting gravel, sand, and backfill material. Whether it’s for road paving or utility trench work, this roller is built to provide uniform, high-load compaction in demanding environments.
Product Description
The CASE 1107 EX-D Tandem Roller is a high-performance vibratory soil compactor designed for heavy-d...
View the full brochure
CASE 1107 EX-D Single Drum Soil Compactor Comparison with Similar Single Drum Soil Compactor
CASE 1107 EX-D Single Drum Soil Compactor
Rated Speed
2200rpm
Displacement
3.83L
Fuel Tank Capacity
235L
Engine Brand
AL
Engine Model
H4
Engine Power
100HP
Max Torque
450Nm
Transmission Type
Infinitely variable hydrostatic drive with variable displacement pump
Max Travel Speed
11.5km/h
Service Brake Type
-
Parking Brake Type
-
Coolant Capacity
17.5L
Tyre Size
23.1-26
Battery Voltage
12V
Battery Capacity
130Ah
Front Departure Angle
35°
Overall Length
5.51m
Overall Width
2.32m
Overall Height
3.37m
Ground Clearance
362mm
Drum Width
2.15m
Drum Diameter
1.5m
Drum Shell Thickness
0.025m
Rear Departure Angle
36°
Without Drum Drive
31%
With Drum Drive
36%
Steering Type
Articulated Hydrostatic Steering
Steering Angle
37°
Oscillation Angle
15°
Turning Radius (inner)
3.42m
Turning Radius (outer)
5.83m
Operating Weight
10.9Ton
Front Axle Load
5900kg
Rear Axle Load
5000kg
Static Linear Load
27.2kg/cm
Frequency (low)
31Hz
Frequency (high)
31Hz
Amplitude (low)
1.8mm
Amplitude (high)
2.0 mm
Centrifugal Force
263kN
Max Applied Force
324.9kN
Hydraulic Oil Capacity
70L
Engine Oil Capacity
12L
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Front Departure Angle
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Without Drum Drive
-
With Drum Drive
-
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
11.2Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Dynapac CA405D CEV-V Single drum vibratory rollers
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Front Departure Angle
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Without Drum Drive
50%
With Drum Drive
-
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
13.960Ton
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann ARS 110 PD Single Drum Roller
Rated Speed
-
Displacement
-
Fuel Tank Capacity
345 L
Engine Brand
Deutz
Engine Model
TCD 3.6 L04
Engine Power
134HP
Max Torque
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Front Departure Angle
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Without Drum Drive
54%
With Drum Drive
50%
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
3.625m
Turning Radius (outer)
-
Operating Weight
12.54Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
25 Hz
Frequency (high)
35 HzHz
Amplitude (low)
1.7mm
Amplitude (high)
0.72mm
Centrifugal Force
186kN
Max Applied Force
285kN
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann 130 PD Single Drum Roller
Rated Speed
1500rpm
Displacement
-
Fuel Tank Capacity
410L
Engine Brand
Cummins
Engine Model
QSB 4.5-C160
Engine Power
159HP
Max Torque
206 Nm
Transmission Type
-
Max Travel Speed
20km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Hydrostatic
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Front Departure Angle
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Without Drum Drive
-
With Drum Drive
-
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
14Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
30Hz
Frequency (high)
36Hz
Amplitude (low)
1.85mm
Amplitude (high)
1mm
Centrifugal Force
300kN
Max Applied Force
230kN
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
