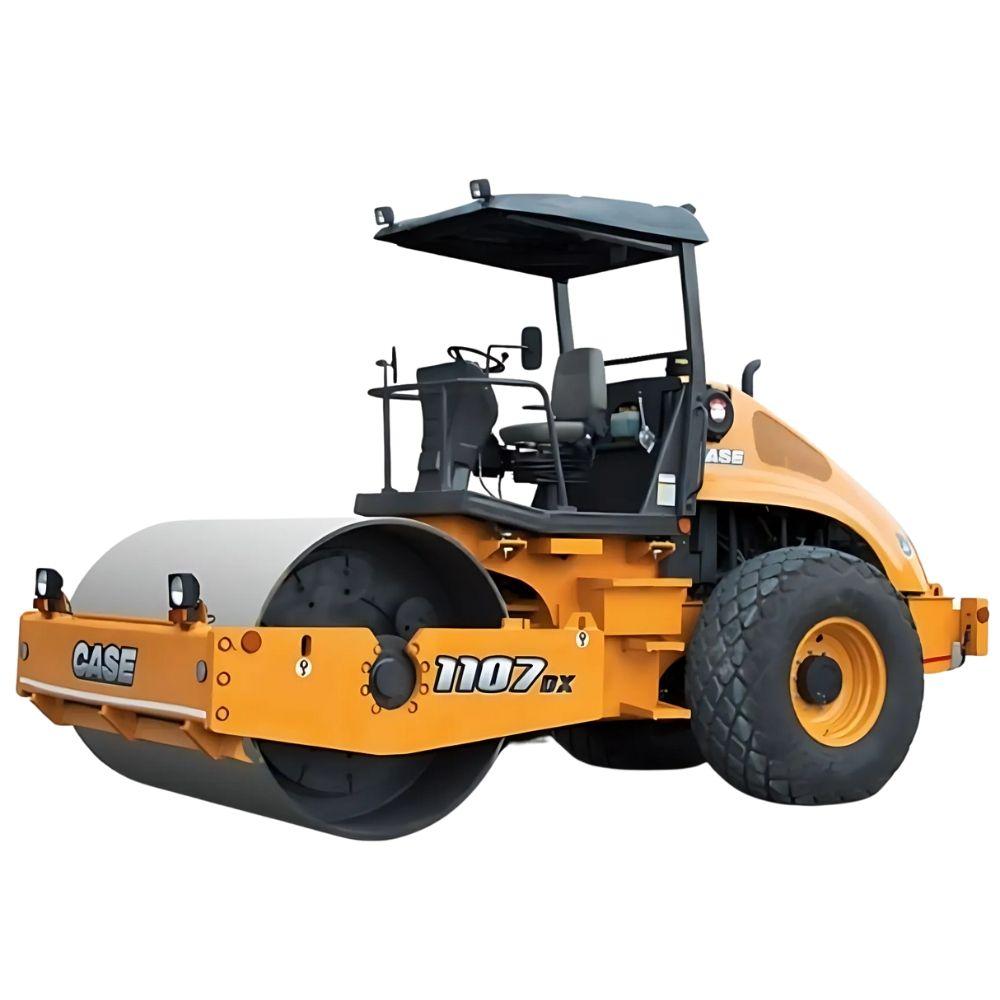

CASE 1107EX-PD PLUS Soil Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 1107EX-PD PLUS Tandem Roller is a cutting-edge solution for vibratory soil compaction, designed to deliver unmatched strength and precision. Weighing 12,500 kg, this machine excels in compacting challenging terrains like Fly Ash and clay soil, thanks to its 32mm thick plate and innovative padded drum technology. With a front axle load of 7,000 kg and a maximum applied force of 217.9 kN, the 1107EX-PD PLUS ensures superior performance, even in the most demanding conditions. Its 34 Hz frequency enhances compaction efficiency, reducing labor time on large-scale projects. Ideal for infrastructure and road construction, this roller guarantees long-lasting durability, increased foundation stability, and improved safety. Choose the CASE 1107EX-PD PLUS for your next compaction project to experience unmatched quality, performance, and reliability.
CASE 1107EX-PD PLUS Soil Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 1107EX-PD PLUS Tandem Roller is a cutting-edge solution for vibratory soil compaction, designed to deliver unmatched strength and precision. Weighing 12,500 kg, this machine excels in compacting challenging terrains like Fly Ash and clay soil, thanks to its 32mm thick plate and innovative padded drum technology. With a front axle load of 7,000 kg and a maximum applied force of 217.9 kN, the 1107EX-PD PLUS ensures superior performance, even in the most demanding conditions. Its 34 Hz frequency enhances compaction efficiency, reducing labor time on large-scale projects. Ideal for infrastructure and road construction, this roller guarantees long-lasting durability, increased foundation stability, and improved safety. Choose the CASE 1107EX-PD PLUS for your next compaction project to experience unmatched quality, performance, and reliability.
Product Description
The CASE 1107EX-PD PLUS Tandem Roller is a cutting-edge solution for vibratory soil compaction, desi...
View the full brochure
CASE 1107EX-PD PLUS Soil Compactor Comparison with Similar Single Drum Soil Compactor
CASE 1107EX-PD PLUS Soil Compactor
Drum Width
2.15m
Water Tank Capacity
-
Fuel Tank Capacity
235L
Frequency Low
31Hz
Ground Clearance
362mm
Overall Length
5.51m
Overall Width
2.32m
Overall Height
3.37m
Frequency High
34Hz
Amplitude High
0.6mm
Amplitude Low
0.6mm
Front Axle Load
7000kg
Rear Axle Load
5000kg
Operating Weight
12.0Ton
Hydraulic Tank Capacity
70L
Engine Brand
AL
Engine Model
H4
Engine Power
100HP
Max Torque
450Nm
Rated Speed
2200rpm
Displacement
3.83L
Transmission Type
Infinitely variable hydrostatic drive with variable displacement pump
Max Travel Speed
11.5km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated Hydrostatic Steering
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
5.83m
Turning Radius (inner)
-
Turning Radius (outer)
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Volvo SD110CD Soil Compactor
Drum Width
2.134m
Water Tank Capacity
-
Fuel Tank Capacity
-
Frequency Low
0Hz
Ground Clearance
472mm
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Frequency High
30Hz
Amplitude High
1.9mm
Amplitude Low
1.0mm
Front Axle Load
-
Rear Axle Load
-
Operating Weight
11.2Ton
Hydraulic Tank Capacity
70L
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Transmission Type
-
Max Travel Speed
12km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-

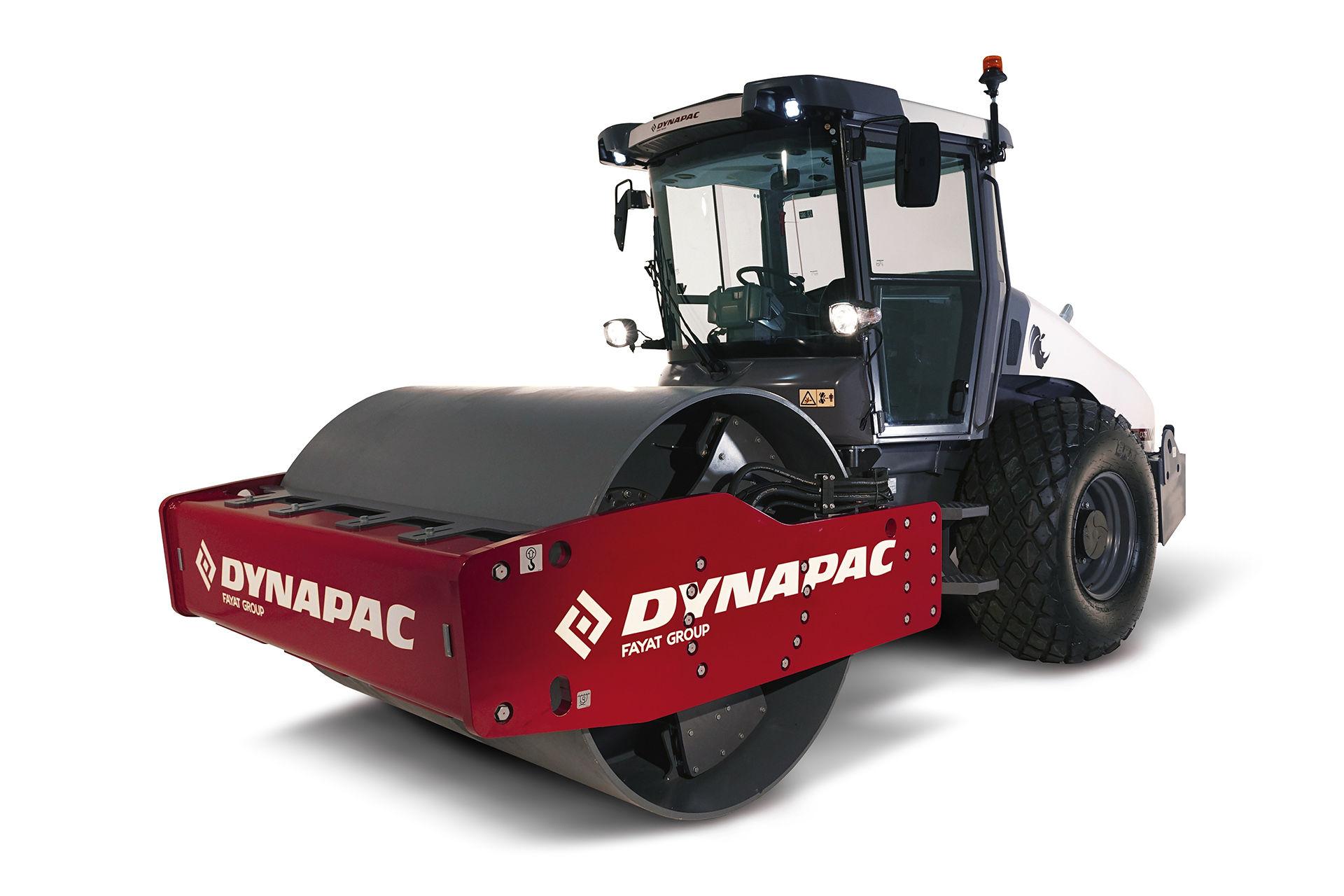

Dynapac CA405D CEV-V Single drum vibratory rollers
Drum Width
2.130m
Water Tank Capacity
-
Fuel Tank Capacity
280L
Frequency Low
-
Ground Clearance
520mm
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Frequency High
-
Amplitude High
-
Amplitude Low
-
Front Axle Load
8580kg
Rear Axle Load
5260kg
Operating Weight
13.960Ton
Hydraulic Tank Capacity
-
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius
-
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-

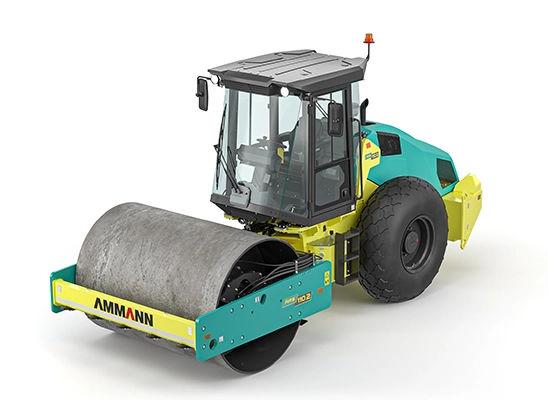

Ammann ARS 110 PD Single Drum Roller
Drum Width
-
Water Tank Capacity
-
Fuel Tank Capacity
345 L
Frequency Low
-
Ground Clearance
-
Overall Length
-
Overall Width
-
Overall Height
-
Frequency High
-
Amplitude High
-
Amplitude Low
-
Front Axle Load
-
Rear Axle Load
-
Operating Weight
12.54Ton
Hydraulic Tank Capacity
-
Engine Brand
Deutz
Engine Model
TCD 3.6 L04
Engine Power
134HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
-
Max Travel Speed
12km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius
-
Turning Radius (inner)
3.625m
Turning Radius (outer)
-
Static Linear Load
-
Frequency (low)
25 Hz
Frequency (high)
35 HzHz
Amplitude (low)
1.7mm
Amplitude (high)
0.72mm
Centrifugal Force
186kN
Max Applied Force
285kN
Without Drum Drive
54%
With Drum Drive
50%
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Ammann 130 PD Single Drum Roller
Drum Width
-
Water Tank Capacity
-
Fuel Tank Capacity
410L
Frequency Low
-
Ground Clearance
-
Overall Length
-
Overall Width
-
Overall Height
-
Frequency High
-
Amplitude High
-
Amplitude Low
-
Front Axle Load
-
Rear Axle Load
-
Operating Weight
14Ton
Hydraulic Tank Capacity
-
Engine Brand
Cummins
Engine Model
QSB 4.5-C160
Engine Power
159HP
Max Torque
206 Nm
Rated Speed
1500rpm
Displacement
-
Transmission Type
-
Max Travel Speed
20km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
Hydrostatic
Parking Brake Type
Hydrostatic
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Static Linear Load
-
Frequency (low)
30Hz
Frequency (high)
36Hz
Amplitude (low)
1.85mm
Amplitude (high)
1mm
Centrifugal Force
300kN
Max Applied Force
230kN
Without Drum Drive
-
With Drum Drive
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
