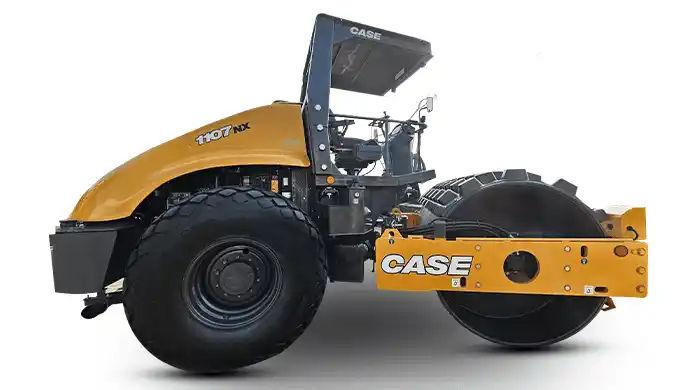

Case 1107NX Vibratory Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 1107NX Vibratory Compactor is built for heavy-duty compaction needs across highways, industrial zones, airports, and embankment projects. Powered by a 74 HP CEV Stage-V engine, it delivers up to 325 kN of applied force, ensuring uniform compaction even on challenging terrains. With an operating weight of up to 12,250 kg, dual vibration stages, and drum amplitude up to 2.0 mm, it handles granular and cohesive soils with ease. Its hydrostatic drive system, high torque planetary final drive, and gradeability up to 40% make it ideal for sloped terrains. The articulating hydrostatic steering with a 37° angle ensures excellent maneuverability, while its durable structure and fuel-efficient engine reduce downtime and running costs. The 1107NX is truly engineered for performance, precision, and productivity on every jobsite.
Case 1107NX Vibratory Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 1107NX Vibratory Compactor is built for heavy-duty compaction needs across highways, industrial zones, airports, and embankment projects. Powered by a 74 HP CEV Stage-V engine, it delivers up to 325 kN of applied force, ensuring uniform compaction even on challenging terrains. With an operating weight of up to 12,250 kg, dual vibration stages, and drum amplitude up to 2.0 mm, it handles granular and cohesive soils with ease. Its hydrostatic drive system, high torque planetary final drive, and gradeability up to 40% make it ideal for sloped terrains. The articulating hydrostatic steering with a 37° angle ensures excellent maneuverability, while its durable structure and fuel-efficient engine reduce downtime and running costs. The 1107NX is truly engineered for performance, precision, and productivity on every jobsite.
Product Description
The CASE 1107NX Vibratory Compactor is built for heavy-duty compaction needs across highways, indust...
View the full brochure
Case 1107NX Vibratory Compactor Comparison with Similar Single Drum Soil Compactor
Case 1107NX Vibratory Compactor
Engine Brand
AL
Engine Model
H40510122
Engine Power
101HP
Max Torque
450Nm
Rated Speed
2200rpm
Displacement
3.83L
Fuel Tank Capacity
275L
Transmission Type
Infinitely variable hydrostatic drive with variable displacement pump
Max Travel Speed
11.5km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated Hydrostatic Steering
Steering Angle
37°
Oscillation Angle
15°
Turning Radius (inner)
3.42m
Turning Radius (outer)
5.83m
Front Axle Load
7620kg
Rear Axle Load
5370kg
Static Linear Load
29.3kg/cm
Operating Weight
12.94Ton
Frequency (low)
31Hz
Frequency (high)
34Hz
Amplitude (low)
0.8mm
Amplitude (high)
2.0mm
Centrifugal Force
263kN
Max Applied Force
338kN
Without Drum Drive
31%
With Drum Drive
36%
Overall Length
5.508m
Overall Width
2.324m
Overall Height
3.239m
Ground Clearance
382mm
Drum Width
2.150m
Drum Diameter
1.5m
Drum Shell Thickness
0.032m
Rear Departure Angle
36°
Front Departure Angle
35°
Hydraulic Oil Capacity
70L
Engine Oil Capacity
12L
Coolant Capacity
17.5L
Tyre Size
23.1-26 8PR
Battery Voltage
12V
Battery Capacity
130Ah
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Sany SSR220C-8H Single Drum Soil Compactor
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
LiuGong 611 Soil Compactor
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
11.0 Ton
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Battery Voltage
12 V
Battery Capacity
150 Ah
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
11.2Ton
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Operating Weight
13.960Ton
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
