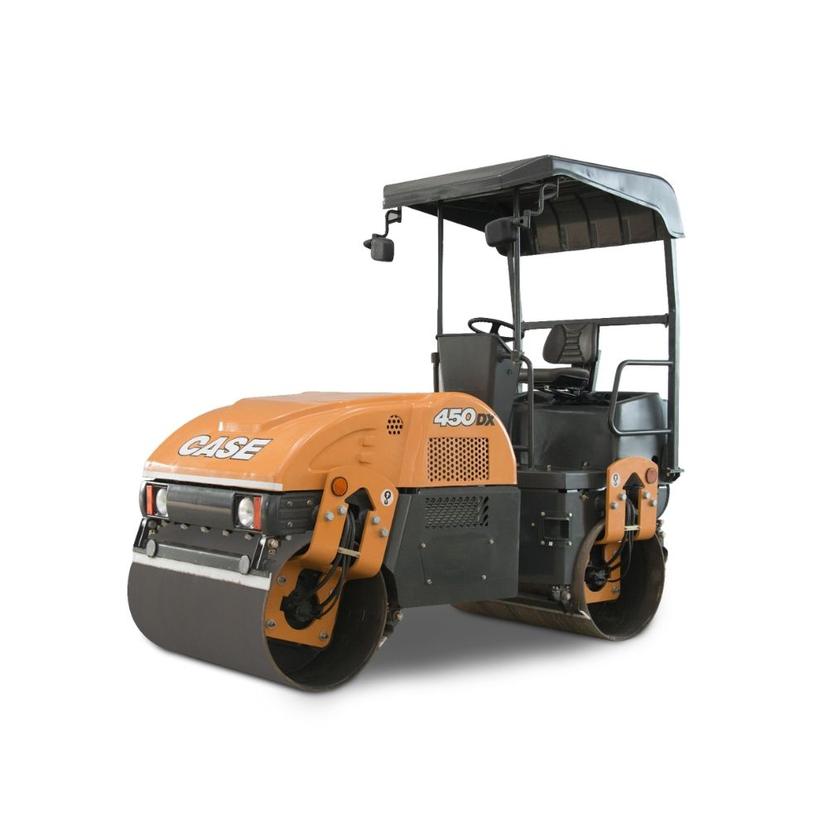

CASE 450DX Tandem Roller
CASE Construction Equipment
Maharashtra
The CASE 450DX Tandem Roller is designed for superior compaction efficiency and maneuverability in construction projects. With an operating weight of 3,225 kg and a powerful 45 hp engine, it offers reliable performance on various terrains. The dual drum vibration feature ensures precise compaction, creating smooth and even surfaces. Its hydrostatic center point articulation and compact turning radius of 3 meters provide excellent maneuverability, even in confined spaces. Equipped with front and rear working lights, along with hazard, parking, and turn indicators, it offers enhanced visibility and safety during nighttime operations. The turbocharged and after-cooled engine options, along with electronic fuel injection, guarantee optimized performance and fuel efficiency. The CASE 450DX is a versatile and efficient solution for any road or construction compaction needs.
CASE 450DX Tandem Roller
CASE Construction Equipment
Maharashtra
The CASE 450DX Tandem Roller is designed for superior compaction efficiency and maneuverability in construction projects. With an operating weight of 3,225 kg and a powerful 45 hp engine, it offers reliable performance on various terrains. The dual drum vibration feature ensures precise compaction, creating smooth and even surfaces. Its hydrostatic center point articulation and compact turning radius of 3 meters provide excellent maneuverability, even in confined spaces. Equipped with front and rear working lights, along with hazard, parking, and turn indicators, it offers enhanced visibility and safety during nighttime operations. The turbocharged and after-cooled engine options, along with electronic fuel injection, guarantee optimized performance and fuel efficiency. The CASE 450DX is a versatile and efficient solution for any road or construction compaction needs.
Product Description
The CASE 450DX Tandem Roller is designed for superior compaction efficiency and maneuverability in c...
View the full brochure
CASE 450DX Tandem Roller Comparison with Similar Tandem Roller
CASE 450DX Tandem Roller
Max Working Speed
12km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
25%
Overall Length
2.990m
Transmission Type
-
Max Travel Speed
12km/h
Drum Width
1.250m
Overall Width
1.360m
Overall Height
2.680m
Ground Clearance
290mm
Water Tank Capacity
110L
Fuel Tank Capacity
45L
Engine Brand
Mahindra & Mahindra Industrial
Engine Model
MDI - 2500
Engine Power
45HP
Max Torque
159Nm
Rated Speed
2200rpm
Displacement
2.523L
Service Brake Type
Hydrostatic
Parking Brake Type
Spring applied, hydraulically released on rear drum
Steering Type
Hydrostatic
Steering Angle
± 33°
Oscillation Angle
± 10°
Turning Radius
3m
Operating Weight
3.225Ton
Front Axle Load
1.55kg
Rear Axle Load
1.675kg
Hydraulic Tank Capacity
45L
Frequency High
65Hz
Frequency Low
55Hz
Amplitude High
0.6mm
Amplitude Low
-
Volvo DD90C Tandem Roller
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Overall Length
4.970 m
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Drum Width
1.676m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Water Tank Capacity
700L
Fuel Tank Capacity
180 L
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Volvo DD90B Tandem Roller
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Overall Length
4.7m
Transmission Type
closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
13km/h
Drum Width
1.675m
Overall Width
1.835m
Overall Height
3.0m
Ground Clearance
305mm
Water Tank Capacity
800L
Fuel Tank Capacity
145L
Engine Brand
Kirloskar
Engine Model
4R1040TC BS -III (CEV)
Engine Power
75.1HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
6.89m
Operating Weight
8.55Ton
Front Axle Load
4400kg
Rear Axle Load
4150kg
Hydraulic Tank Capacity
85L
Frequency High
50Hz
Frequency Low
36Hz
Amplitude High
1.0mm
Amplitude Low
0.36mm
Volvo DD100 Tandem Roller
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Overall Length
5.086 m
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Drum Width
1.676m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Water Tank Capacity
984L
Fuel Tank Capacity
189L
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Displacement
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Volvo DD100C Tandem Roller
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Overall Length
5.25m
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Drum Width
1.676m
Overall Width
2.06m
Overall Height
2.87m
Ground Clearance
370mm
Water Tank Capacity
492L
Fuel Tank Capacity
185L
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
5.7m
Operating Weight
10.6Ton
Front Axle Load
5160kg
Rear Axle Load
4840kg
Hydraulic Tank Capacity
135L
Frequency High
42Hz
Frequency Low
30Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
