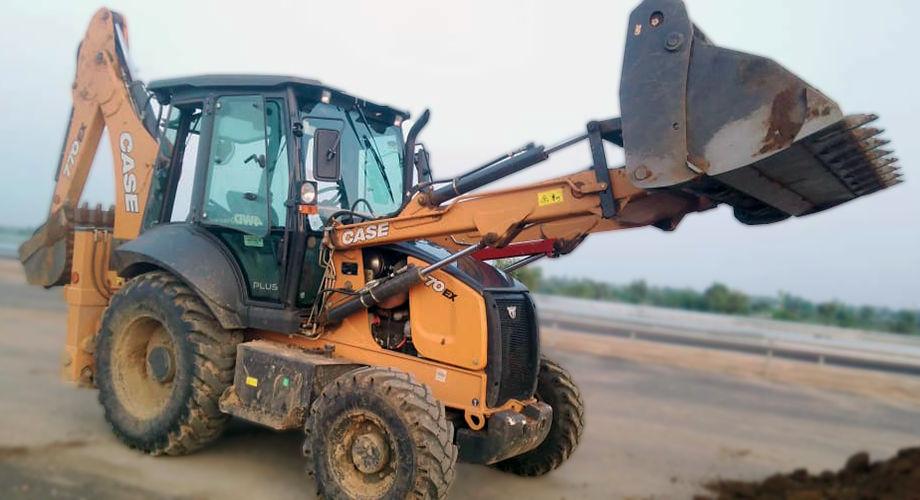

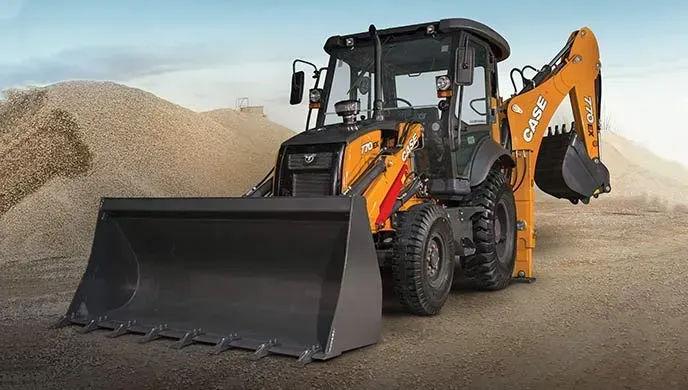

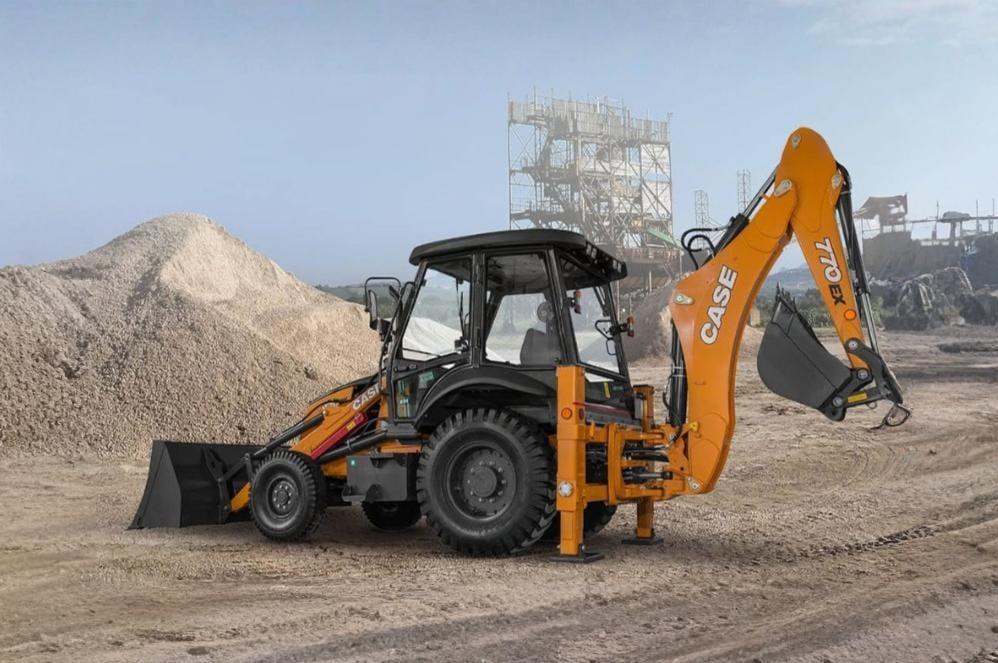

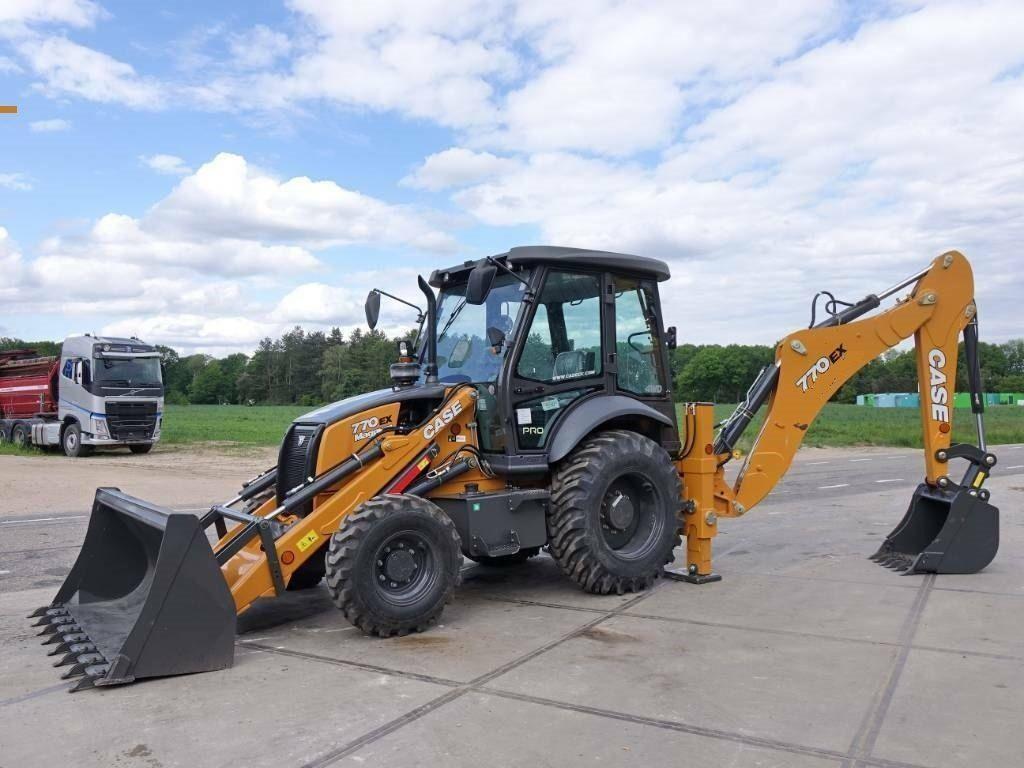

CASE 770EX Plus Backhoe Loader

CASE Construction Equipment

Madhya Pradesh

The CASE 770EX Plus Backhoe Loader combines exceptional performance with advanced features, making it the perfect machine for both urban and agricultural tasks. Powered by a 54.4 kW (74 hp) engine, it offers impressive lifting capacity and a higher loader arm breakout force, ensuring efficient material handling on construction sites. With an operating weight of 7955 kg, it is built for heavy-duty tasks like moving debris, trenching, and digging. The loader's straight arm design enhances visibility, while the improved FNR location allows for fast and smooth directional changes. Designed for operator comfort, the 770EX Plus features an ergonomic station that reduces fatigue during long hours of use. Its 22 unique features optimize efficiency, making it a reliable choice for landscaping, construction, and agricultural applications alike.

Engine Brand
Ashok Leyland
Engine Power
74HP
Operating Weight
7.96Ton
Bucket Capacity
0.3
Loader Bucket Capacity
1.1

Product Description

The CASE 770EX Plus Backhoe Loader combines exceptional performance with advanced features, making i...

View the full brochure

CASE 770EX Plus Backhoe Loader Comparison with Similar Backhoe Loader

CASE 770EX Plus  Backhoe Loader

CASE 770EX Plus Backhoe Loader

Get Latest Price
Rating
4.4

Hydraulic Pressure

210Bar

Max Digging Depth

4.7m

Max Reach At Ground

5.895m

Max Reach At Full Height

2.4m

Max Loading Height

3.8m

Bucket Capacity

0.3

Bucket Breakout Force

5616kgf

Dipper Breakout Force

3780kgf

Engine Brand

Ashok Leyland

Engine Model

H4C4E7422*W

Engine Power

74HP

Max Torque

340Nm

Rated Speed

2200rpm

Displacement

3.84L

Fuel Tank Capacity

129L

Transmission Type

4F-4R Power Shuttle Synchromesh Transmission

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

35.0km/h

Service Brake Type

Hydraulic foot operated, 2 disc per side

Parking Brake Type

Mechanically actuated caliper type brake pack on rear axle input shaft

Steering Type

Power Steering

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

9.2 m

Turning Radius (unbraked)

11.1m

Operating Weight

7.96Ton

Max Lifting Capacity

3700kg

Hydraulic Flow Rate

146L/min

Max Dump Height

2.73m

Max Load Over Height

3.3m

Max Hinge Pin Height

3.60m

Loader Bucket Capacity

1.1

Loader Arm Breakout Force

5115kgf

Shovel Breakout Force

-

Overall Length

5.96m

Overall Width

2.27m

Overall Height

3.85m

Ground Clearance

380mm

Power Steering

Power Steering

Battery Voltage

12V

Front Axle Oscillation

21°

Standard Tyres (front/rear)

Front: 9x16 -16PR / Rear: 16.9x28 -12PR

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-

Currently Viewing

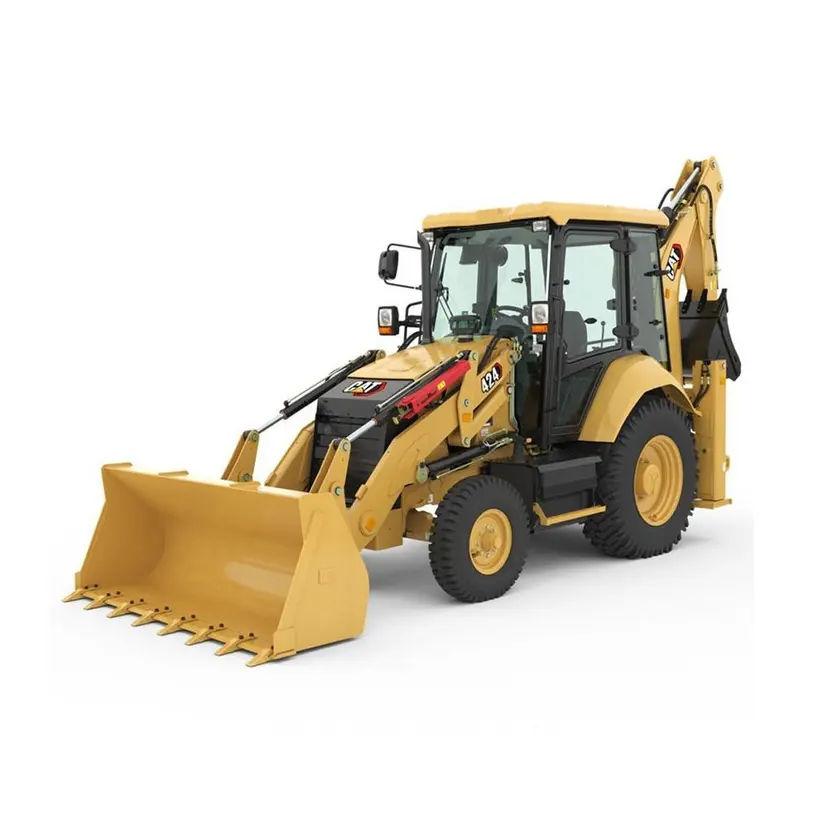

CAT 424-2 Backhoe Loader

CAT 424-2 Backhoe Loader

Get Latest Price
Rating
4.4

Hydraulic Pressure

-

Max Digging Depth

4.729m

Max Reach At Ground

5.612m

Max Reach At Full Height

-

Max Loading Height

4.015m

Bucket Capacity

1.05

Bucket Breakout Force

5,730kgf

Dipper Breakout Force

3,570kgf

Engine Brand

CAT

Engine Model

C3.6

Engine Power

75HP

Max Torque

424Nm

Rated Speed

2200 rpm

Displacement

-

Fuel Tank Capacity

-

Transmission Type

Variable Displacement Pump

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

37km/h

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

-

Turning Radius (unbraked)

-

Operating Weight

7.98 Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

132L/min

Max Dump Height

2.794m

Max Load Over Height

-

Max Hinge Pin Height

-

Loader Bucket Capacity

1.05

Loader Arm Breakout Force

5,390kgf

Shovel Breakout Force

5,370kgf

Overall Length

5.708m

Overall Width

2.346m

Overall Height

2.346m

Ground Clearance

-

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Standard Tyres (front/rear)

-

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-

CASE 770EX  Backhoe Loader

CASE 770EX Backhoe Loader

Get Latest Price
Rating
4.4

Hydraulic Pressure

195Bar

Max Digging Depth

4.40m

Max Reach At Ground

5.625m

Max Reach At Full Height

2.15m

Max Loading Height

3.8m

Bucket Capacity

0.26

Bucket Breakout Force

5206kgf

Dipper Breakout Force

3031kgf

Engine Brand

Ashok Leyland

Engine Model

H4C4E7422*W

Engine Power

74HP

Max Torque

340Nm

Rated Speed

2200rpm

Displacement

3.84L

Fuel Tank Capacity

129L

Transmission Type

4F-4R Power Shuttle Synchromesh Transmission

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

34.1km/h

Service Brake Type

Hydraulic foot operated, 2 disc per side

Parking Brake Type

Mechanically actuated caliper type brake pack on rear axle input shaft

Steering Type

Power Steering

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

9.2m

Turning Radius (unbraked)

11.1m

Operating Weight

7.78Ton

Max Lifting Capacity

3515kg

Hydraulic Flow Rate

126L/min

Max Dump Height

2.73m

Max Load Over Height

3.3m

Max Hinge Pin Height

3.60m

Loader Bucket Capacity

1.1

Loader Arm Breakout Force

4750kgf

Shovel Breakout Force

-

Overall Length

5.88m

Overall Width

2.27m

Overall Height

3.85m

Ground Clearance

380mm

Power Steering

Yes

Battery Voltage

12V

Front Axle Oscillation

21°

Standard Tyres (front/rear)

Front: 9x16 -16PR / Rear: 16.9x28 -12PR

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-

Bull HD96 4WD Backhoe Loader

Bull HD96 4WD Backhoe Loader

Get Latest Price
Rating
4.4

Hydraulic Pressure

240Bar

Max Digging Depth

-

Max Reach At Ground

-

Max Reach At Full Height

1.42 / 1.28m

Max Loading Height

-

Bucket Capacity

1.1

Bucket Breakout Force

-

Dipper Breakout Force

-

Engine Brand

KIRLOSKAR

Engine Model

4R 1040 T EU STAGE II (Diesel)

Engine Power

96HP

Max Torque

377Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

115 / 150L

Transmission Type

CARRARO synchroshuttle

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

40km/h

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

-

Turning Radius (unbraked)

-

Operating Weight

8.15Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

134L/min

Max Dump Height

2.93 / 2.96m

Max Load Over Height

-

Max Hinge Pin Height

3.61m

Loader Bucket Capacity

-

Loader Arm Breakout Force

5251kgf

Shovel Breakout Force

-

Overall Length

6.04m

Overall Width

2.35m

Overall Height

3.71m

Ground Clearance

480mm

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Standard Tyres (front/rear)

-

Emission Standard

Stage II

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

125L

Reach At Ground Level

1.60 / 1.47m

Dump Angle

45°

Lift Path

-

Wheelbase

2.22m

Turning Radius

8.8 / 11.6m

ESCORTS DIGMAX II Backhoe Loader

ESCORTS DIGMAX II Backhoe Loader

Get Latest Price
Rating
4.4

Hydraulic Pressure

225Bar

Max Digging Depth

4.80m

Max Reach At Ground

6.97m

Max Reach At Full Height

1.22m

Max Loading Height

-

Bucket Capacity

0.26

Bucket Breakout Force

6425kgf

Dipper Breakout Force

6174kgf

Engine Brand

Kirloskar

Engine Model

4R1190NA

Engine Power

75 HP

Max Torque

300 Nm

Rated Speed

-

Displacement

-

Fuel Tank Capacity

134L

Transmission Type

Syncro shift reversing shuttle

Number Of Gears (forward/reverse)

(4F/ 4R )

Torque Converter Stall Ratio

-

Max Travel Speed

36.6km/h

Service Brake Type

Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type

Parking Brake Type

Hand-operated caliper disc brakes

Steering Type

Hydrostatic power steering

Steering Angle

-

Oscillation Angle

16°

Turning Radius (braked)

-

Turning Radius (unbraked)

-

Operating Weight

8.19Ton

Max Lifting Capacity

1980kg

Hydraulic Flow Rate

117.5L/min

Max Dump Height

3.00m

Max Load Over Height

3.51m

Max Hinge Pin Height

3.70m

Loader Bucket Capacity

1.2

Loader Arm Breakout Force

5777kgf

Shovel Breakout Force

-

Overall Length

6.28m

Overall Width

-

Overall Height

3.78m

Ground Clearance

0.35mm

Power Steering

yes

Battery Voltage

-

Front Axle Oscillation

16°

Standard Tyres (front/rear)

9.00 x 16 - 16PR / 16.9 x 28 - 12PR

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-
