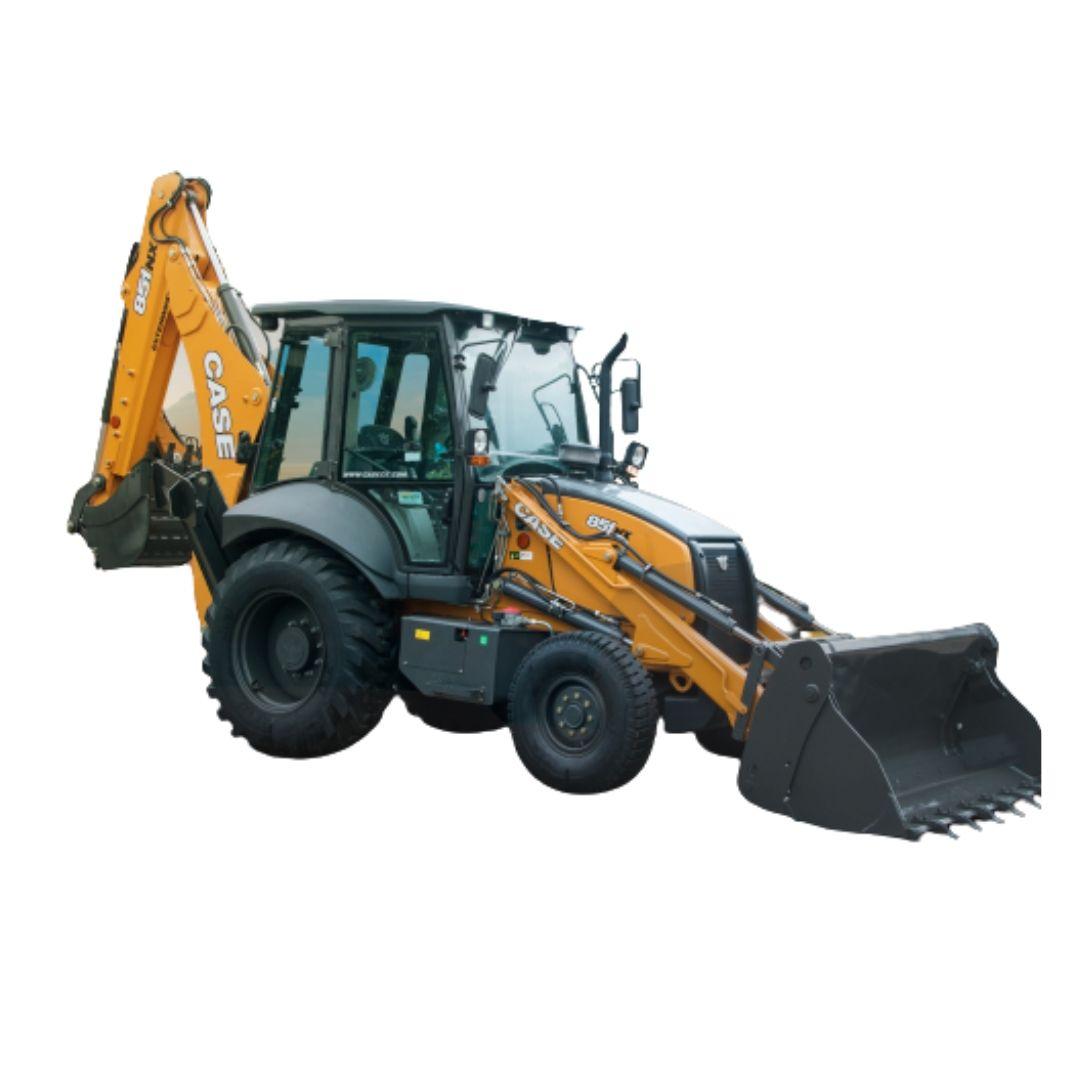

Case 851NX Backhoe Loader
CASE Construction Equipment
Madhya Pradesh
The CASE 851NX Backhoe Loader is a robust and high-performing machine built for demanding construction and infrastructure tasks. Powered by a CNH Industrial engine delivering 74 HP and a maximum torque of 375 Nm, it ensures efficient operations with CEV Stage V emission compliance. This versatile machine features a 1.1 m³ loader bucket with a breakout force of 49 kN and a lifting capacity of 3650 kg, making it ideal for heavy-duty loading tasks. On the backhoe side, it offers a digging depth of 4.7 meters and a powerful dipper tear-out force of 39.1 kN, suitable for trenching, excavation, and utility jobs. With a strong hydraulic system, 4WD drivetrain, and ergonomic design, the CASE 851NX guarantees productivity, durability, and operator comfort on every site.
Case 851NX Backhoe Loader
CASE Construction Equipment
Madhya Pradesh
The CASE 851NX Backhoe Loader is a robust and high-performing machine built for demanding construction and infrastructure tasks. Powered by a CNH Industrial engine delivering 74 HP and a maximum torque of 375 Nm, it ensures efficient operations with CEV Stage V emission compliance. This versatile machine features a 1.1 m³ loader bucket with a breakout force of 49 kN and a lifting capacity of 3650 kg, making it ideal for heavy-duty loading tasks. On the backhoe side, it offers a digging depth of 4.7 meters and a powerful dipper tear-out force of 39.1 kN, suitable for trenching, excavation, and utility jobs. With a strong hydraulic system, 4WD drivetrain, and ergonomic design, the CASE 851NX guarantees productivity, durability, and operator comfort on every site.
Product Description
The CASE 851NX Backhoe Loader is a robust and high-performing machine built for demanding constructi...
View the full brochure
Case 851NX Backhoe Loader Comparison with Similar Backhoe Loader
Case 851NX Backhoe Loader
Engine Model
F28-CF28A001A U
Rated Speed
2200rpm
Engine Power
74HP
Displacement
2.8L
Max Torque
375Nm
Engine Brand
CNH Industrial (India)
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
Max Travel Speed
34km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack
Steering Type
Power Steering
Steering Angle
°
Oscillation Angle
-
Turning Radius (braked)
4.6m
Turning Radius (unbraked)
5.55m
Max Lifting Capacity
3650kg
Operating Weight
7.8Ton
Hydraulic Flow Rate
143L/min
Hydraulic Pressure
240Bar
Max Digging Depth
4.7m
Max Reach At Ground
7.22m
Max Reach At Full Height
1.19m
Max Loading Height
3.8m
Bucket Capacity
0.36–0.40m³
Bucket Breakout Force
6550kgf
Dipper Breakout Force
3900kgf
Max Dump Height
2.72m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.6m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5250kgf
Shovel Breakout Force
5000kgf
Overall Length
6.00m
Overall Width
2.28m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V / 110AV
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5x18-12PR / 16.9x28-12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Engine Model
C3.6
Rated Speed
2200 rpm
Engine Power
75HP
Displacement
-
Max Torque
424Nm
Engine Brand
CAT
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Operating Weight
7.98 Ton
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

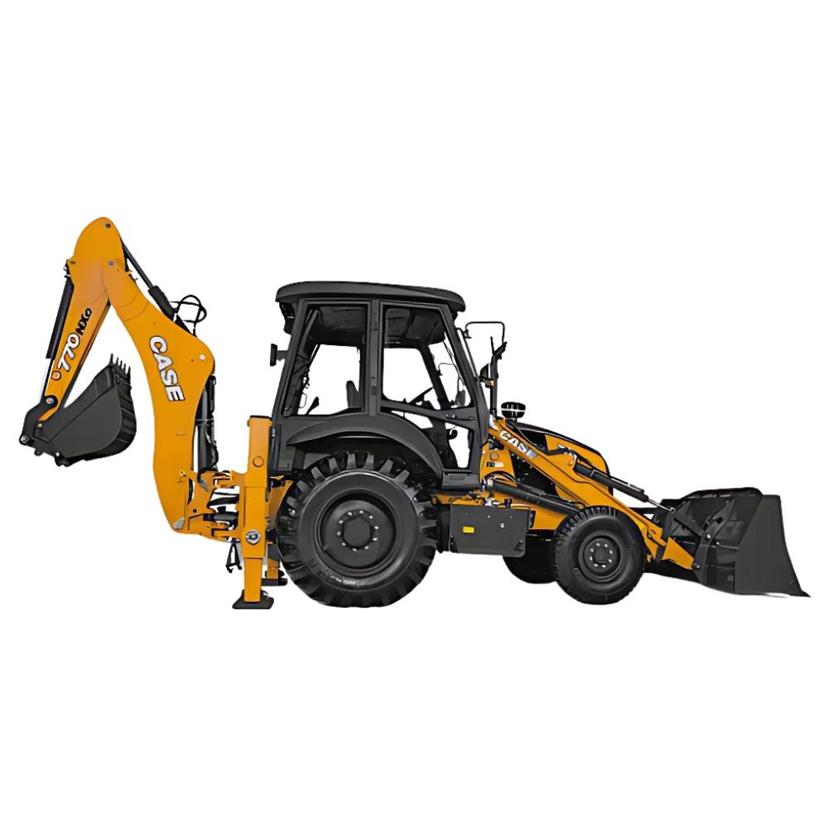

CASE 770EX Backhoe Loader
Engine Model
H4C4E7422*W
Rated Speed
2200rpm
Engine Power
74HP
Displacement
3.84L
Max Torque
340Nm
Engine Brand
Ashok Leyland
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Max Lifting Capacity
3515kg
Operating Weight
7.78Ton
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Engine Model
4R 1040 T EU STAGE II (Diesel)
Rated Speed
2200rpm
Engine Power
96HP
Displacement
-
Max Torque
377Nm
Engine Brand
KIRLOSKAR
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Operating Weight
8.15Ton
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m

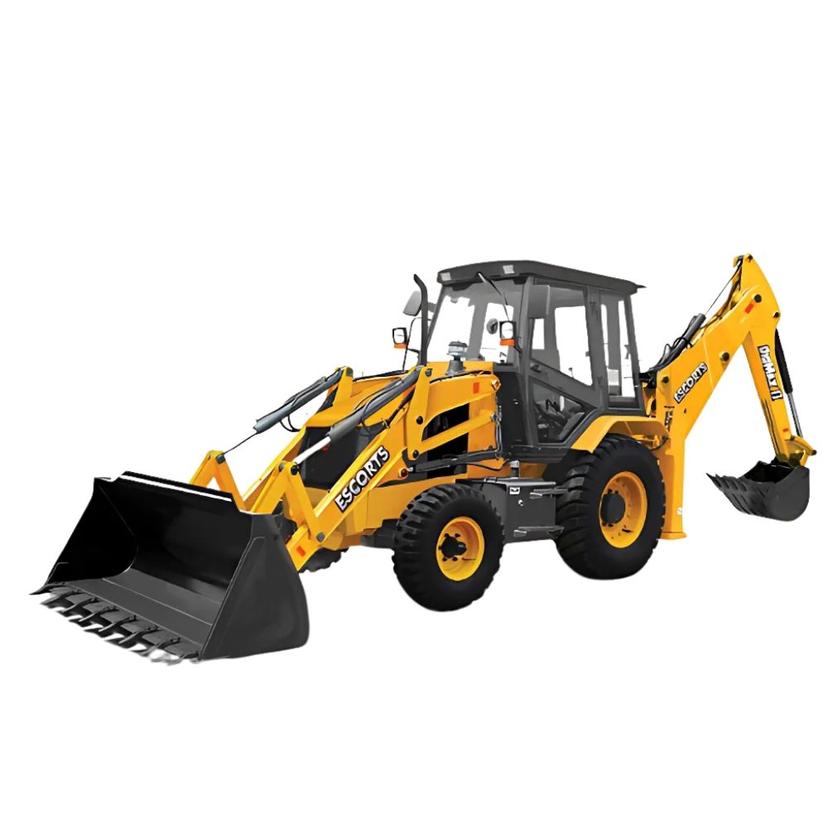

ESCORTS DIGMAX II Backhoe Loader
Engine Model
4R1190NA
Rated Speed
-
Engine Power
75 HP
Displacement
-
Max Torque
300 Nm
Engine Brand
Kirloskar
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
1980kg
Operating Weight
8.19Ton
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Reach At Full Height
1.22m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
