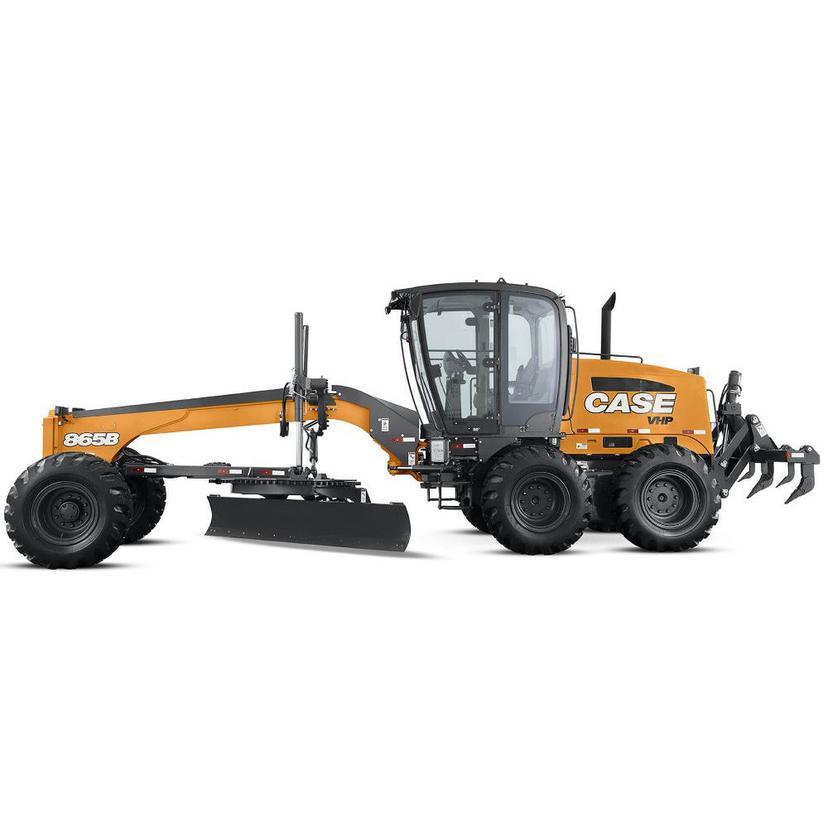

CASE 865B VHP Motor Grader
CASE Construction Equipment
Maharashtra
The CASE 865B VHP Motor Grader is a high-performance, heavy-duty machine engineered for precision, efficiency, and durability across a wide range of grading applications. Powered by a robust 6.7L FPT engine delivering up to 220 horsepower and 930 Nm of torque, it features an advanced electronic powershift transmission and automatic torque converter lockup for smooth operation. Its all-welded box frame, 360º circle rotation, and powerful hydraulic system with a rated flow of 186 L/min ensure superior control and maneuverability on rough terrain. With hydrostatic steering, 25º articulation, and integrated supplemental steering, the 865B VHP is built to handle road construction, land leveling, mining, and snow clearing with ease. Its efficient, load-sensing hydraulic system and on-board diagnostics enhance uptime, making it a reliable asset for demanding worksites.
CASE 865B VHP Motor Grader
CASE Construction Equipment
Maharashtra
The CASE 865B VHP Motor Grader is a high-performance, heavy-duty machine engineered for precision, efficiency, and durability across a wide range of grading applications. Powered by a robust 6.7L FPT engine delivering up to 220 horsepower and 930 Nm of torque, it features an advanced electronic powershift transmission and automatic torque converter lockup for smooth operation. Its all-welded box frame, 360º circle rotation, and powerful hydraulic system with a rated flow of 186 L/min ensure superior control and maneuverability on rough terrain. With hydrostatic steering, 25º articulation, and integrated supplemental steering, the 865B VHP is built to handle road construction, land leveling, mining, and snow clearing with ease. Its efficient, load-sensing hydraulic system and on-board diagnostics enhance uptime, making it a reliable asset for demanding worksites.
Product Description
The CASE 865B VHP Motor Grader is a high-performance, heavy-duty machine engineered for precision, e...
View the full brochure
CASE 865B VHP Motor Grader Comparison with Similar Motor Grader
CASE 865B VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE9687C
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
-
Transmission Type
Powershift, electronic shift control with auto lockup
Number Of Gears (fwd/rev)
6 forward / 3 reverse
Max Travel Speed
-
Service Brake Type
Disk, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic
Steering Angle
42°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
151Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
622mm
Blade Length
-
Blade Height
-
Max Lift Above Ground
-
Max Depth Of Cut
-
Blade Tilt Angle
-
Blade Pitch Angle
-
Blade Rotation Angle
360°
Liugong CLG 414 BSIII Motor Grader
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
-
Blade Height
-
Max Lift Above Ground
-
Max Depth Of Cut
-
Blade Tilt Angle
-
Blade Pitch Angle
-
Blade Rotation Angle
-
Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
SDLG G9138H Motor Grader
Engine Brand
-
Engine Model
WP4.6NG150E501
Engine Power
148HP
Max Torque
640Nm
Rated Speed
2200rpm
Displacement
4.58L
Fuel Tank Capacity
-
Transmission Type
Counter shaft power shift Auto manual
Number Of Gears (fwd/rev)
6F / 3R
Max Travel Speed
39km/h
Service Brake Type
MICO single-circuit, hydraulically operated
Parking Brake Type
Mechanical control on transmission
Steering Type
Load-sensing and hydraulic steering
Steering Angle
50°
Oscillation Angle
160°
Turning Radius
6.5m
Operating Weight
13.0Ton
Front Axle Load
3700kg
Rear Axle Load
9300kg
Hydraulic Flow Rate
25L/min
Hydraulic Pressure
180Bar
Overall Length
8.12m
Overall Width
2.41m
Overall Height
3.235m
Ground Clearance
0.59mm
Blade Length
3.658m
Blade Height
0.58m
Max Lift Above Ground
0.38m
Max Depth Of Cut
0.575m
Blade Tilt Angle
90°
Blade Pitch Angle
-
Blade Rotation Angle
-
Mahindra G75 Motor Grader
Engine Brand
BS TREM IV CEV
Engine Model
RoadMaster G75 Smart
Engine Power
74HP
Max Torque
345Nm
Rated Speed
2200rpm
Displacement
3.532L
Fuel Tank Capacity
100L
Transmission Type
-
Number Of Gears (fwd/rev)
4/2
Max Travel Speed
38km/h
Service Brake Type
Foot operated hydraulically actuated oil immersed disc
Parking Brake Type
Hand operated mechanically actuated caliper brakes
Steering Type
Power Steering
Steering Angle
45°
Oscillation Angle
25°
Turning Radius
10m
Operating Weight
7.16Ton
Front Axle Load
2490kg
Rear Axle Load
4670kg
Hydraulic Flow Rate
108L/min
Hydraulic Pressure
200Bar
Overall Length
6.88m
Overall Width
2.062m
Overall Height
3.3m
Ground Clearance
472mm
Blade Length
3m
Blade Height
0.516m
Max Lift Above Ground
0.395m
Max Depth Of Cut
0.3m
Blade Tilt Angle
20°
Blade Pitch Angle
40°
Blade Rotation Angle
50°
