CASE 952 EX Tandem Roller
CASE Construction Equipment
Madhya Pradesh
The CASE 952EX Tandem Roller combines advanced technology and robust design, making it a perfect choice for a variety of construction applications. With a 73 hp engine and an operating weight of 9050 kg, this machine delivers powerful compaction for roads, airports, railways, and more. Its ergonomic design ensures operator comfort, featuring a sliding and rotating suspended seat, and user-friendly controls. The sloping water tank and advanced vibratory technology enhance visibility and performance, while the Auto Idle feature boosts fuel efficiency by up to 5%. Safety is prioritized with an audio-visual warning system and multiple alerts, offering peace of mind during operation. Built with reliable components from top global brands, the CASE 952EX Tandem Roller ensures durability and peak performance, making it an essential tool for large-scale infrastructure projects.
CASE 952 EX Tandem Roller
CASE Construction Equipment
Madhya Pradesh
The CASE 952EX Tandem Roller combines advanced technology and robust design, making it a perfect choice for a variety of construction applications. With a 73 hp engine and an operating weight of 9050 kg, this machine delivers powerful compaction for roads, airports, railways, and more. Its ergonomic design ensures operator comfort, featuring a sliding and rotating suspended seat, and user-friendly controls. The sloping water tank and advanced vibratory technology enhance visibility and performance, while the Auto Idle feature boosts fuel efficiency by up to 5%. Safety is prioritized with an audio-visual warning system and multiple alerts, offering peace of mind during operation. Built with reliable components from top global brands, the CASE 952EX Tandem Roller ensures durability and peak performance, making it an essential tool for large-scale infrastructure projects.
Product Description
The CASE 952EX Tandem Roller combines advanced technology and robust design, making it a perfect cho...
View the full brochure
CASE 952 EX Tandem Roller Comparison with Similar Tandem Roller
CASE 952 EX Tandem Roller
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422
Engine Power
73.0HP
Max Torque
54.4Nm
Rated Speed
340rpm
Fuel Tank Capacity
140L
Displacement
3.83L
Transmission Type
-
Max Travel Speed
11.5km/h
Max Working Speed
5.5km/h
Gradeability Without Vibration
-
Gradeability With Vibration
36%
Service Brake Type
Hydrostatic
Parking Brake Type
SAHR (Spring Applied Hydraulically Released)
Steering Type
-
Steering Angle
-
Oscillation Angle
± 10˚°
Turning Radius
5.1m
Operating Weight
9050Ton
Front Axle Load
4410kg
Rear Axle Load
4640kg
Hydraulic Tank Capacity
70L
Frequency High
50Hz
Frequency Low
33Hz
Amplitude High
1.0mm
Amplitude Low
0.2mm
Overall Length
4.130m
Overall Width
1.905m
Overall Height
3.100m
Ground Clearance
244mm
Drum Width
-
Water Tank Capacity
-

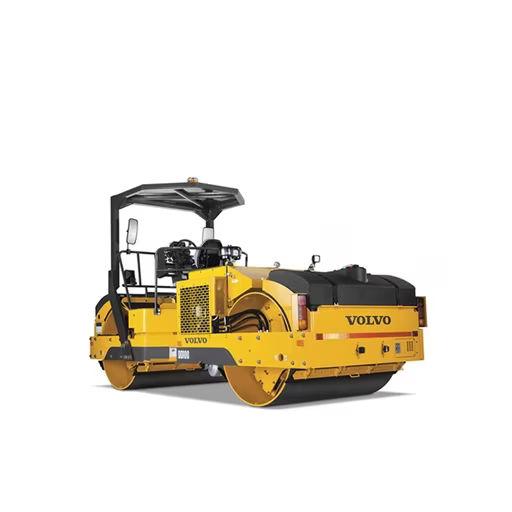

Volvo DD100 Tandem Roller
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
189L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Hamm HC 119iD Tandem Roller
Engine Brand
ASHOK LEYLAND
Engine Model
H4C510122
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
270L
Displacement
-
Transmission Type
-
Max Travel Speed
12.0km/h
Max Working Speed
7.0km/h
Gradeability Without Vibration
53%
Gradeability With Vibration
48%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated steering
Steering Angle
33°
Oscillation Angle
10°
Turning Radius
4.260m
Operating Weight
11.18Ton
Front Axle Load
6220kg
Rear Axle Load
4960kg
Hydraulic Tank Capacity
-
Frequency High
35Hz
Frequency Low
30Hz
Amplitude High
1.93mm
Amplitude Low
0.85mm
Overall Length
5.989m
Overall Width
2.280m
Overall Height
3.067m
Ground Clearance
470mm
Drum Width
2.140m
Water Tank Capacity
-
Wacker Neuson RD24 Tandem Roller
Engine Brand
Kubota
Engine Model
D1703
Engine Power
24.8HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
42.01L
Displacement
-
Transmission Type
-
Max Travel Speed
10.1km/h
Max Working Speed
-
Gradeability Without Vibration
40.0%
Gradeability With Vibration
30.0%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Turning Radius
-
Operating Weight
2.47Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Frequency High
65.0Hz
Frequency Low
51.0Hz
Amplitude High
0.44mm
Amplitude Low
0.44mm
Overall Length
2.52m
Overall Width
1.10m
Overall Height
2.37m
Ground Clearance
-
Drum Width
1.00m
Water Tank Capacity
180.18L
L&T 990HF Tandem Roller
Engine Brand
Mahindra & Mahindra
Engine Model
VNEF74
Engine Power
74.8HP
Max Torque
306Nm
Rated Speed
2200rpm
Fuel Tank Capacity
140L
Displacement
3.5L
Transmission Type
-
Max Travel Speed
12km/h
Max Working Speed
6km/h
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
Hydrostatic Brake
Parking Brake Type
Spring Applied Hydraulically Released (SAHR)
Steering Type
-
Steering Angle
±33°
Oscillation Angle
±10°
Turning Radius
5m
Operating Weight
9.2Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
65L
Frequency High
60Hz
Frequency Low
42Hz
Amplitude High
0.9mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.8m
Overall Height
3m
Ground Clearance
300mm
Drum Width
1.6m
Water Tank Capacity
750L
