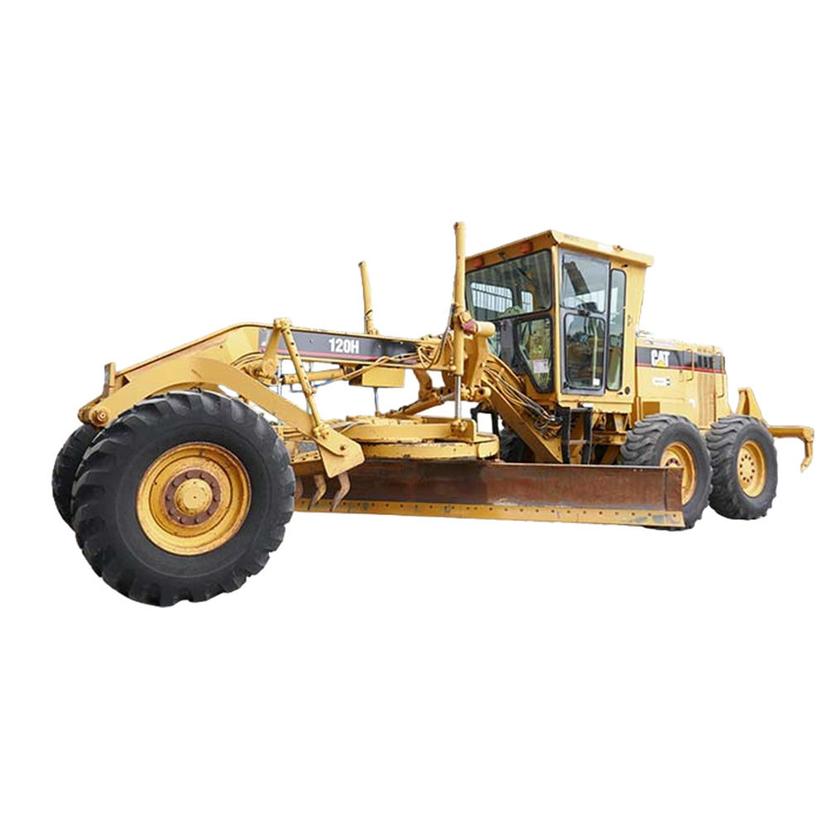

CAT 120H Motor Grader
Caterpillar
Haryana
The CAT 120H Motor Grader is a powerful and versatile machine designed to excel in heavy construction tasks. With a robust 125 Hp engine, it delivers exceptional performance for grading and leveling on construction sites. The 120H features a precise 7.3 mm turning radius, enabling smooth navigation through tight spaces, while its 3.6 mm moldboard width ensures optimal surface smoothness during paving projects. With a top forward speed of 42.6 kmph, this grader enhances productivity in large-scale earthmoving and road maintenance operations. Its impressive operating weight further boosts effectiveness in demanding tasks. Whether you're involved in road construction, site preparation, or maintenance, the CAT 120H Motor Grader offers the reliability and efficiency needed for top-quality results.
CAT 120H Motor Grader
Caterpillar
Haryana
The CAT 120H Motor Grader is a powerful and versatile machine designed to excel in heavy construction tasks. With a robust 125 Hp engine, it delivers exceptional performance for grading and leveling on construction sites. The 120H features a precise 7.3 mm turning radius, enabling smooth navigation through tight spaces, while its 3.6 mm moldboard width ensures optimal surface smoothness during paving projects. With a top forward speed of 42.6 kmph, this grader enhances productivity in large-scale earthmoving and road maintenance operations. Its impressive operating weight further boosts effectiveness in demanding tasks. Whether you're involved in road construction, site preparation, or maintenance, the CAT 120H Motor Grader offers the reliability and efficiency needed for top-quality results.
Product Description
The CAT 120H Motor Grader is a powerful and versatile machine designed to excel in heavy constructio...
View the full brochure
CAT 120H Motor Grader Comparison with Similar Motor Grader

CAT 120H Motor Grader
Engine Brand
-
Engine Model
Cat 7.1
Engine Power
-
Max Torque
822 Nm
Rated Speed
-
Displacement
7.01 L
Fuel Tank Capacity
246L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
17Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
2.592m
Overall Height
-
Ground Clearance
-
Blade Length
-
Blade Height
-
Max Lift Above Ground
-
Max Depth Of Cut
-
Blade Tilt Angle
-
Blade Pitch Angle
-
Blade Rotation Angle
-

Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°

Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°

FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°

CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
