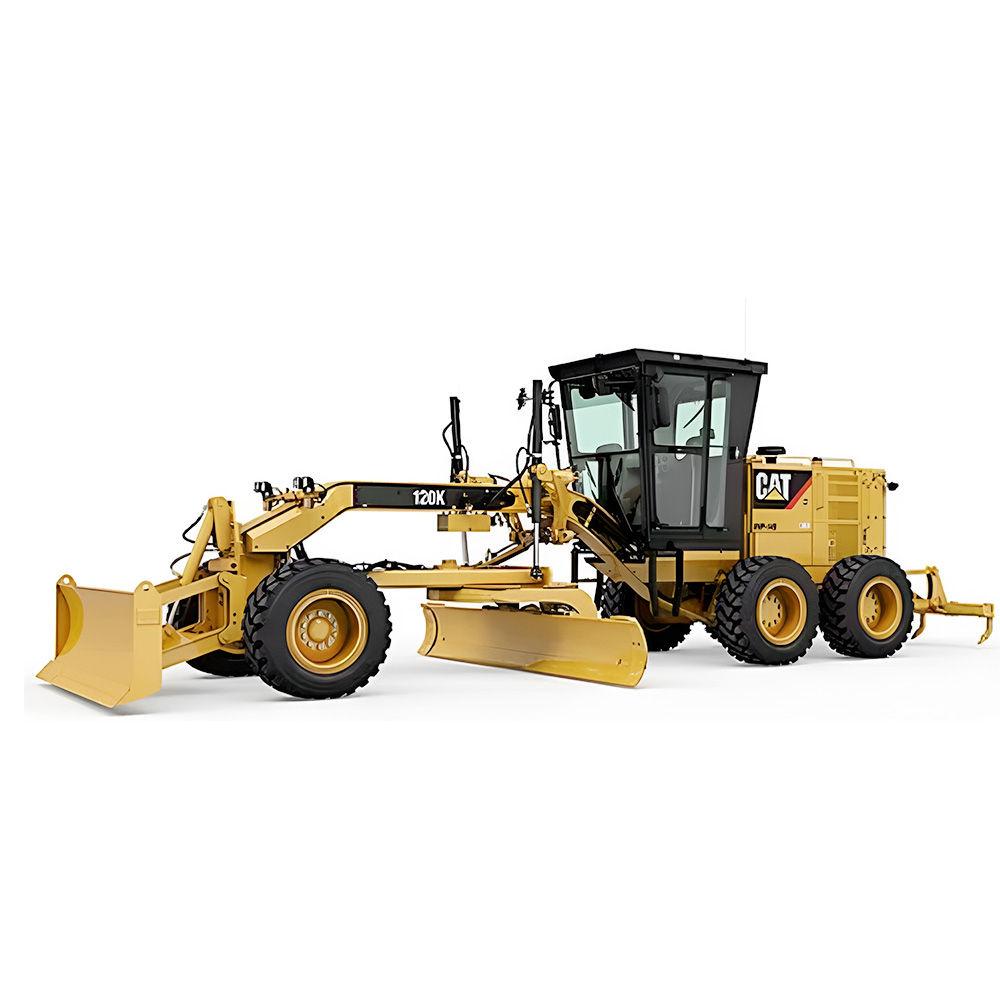

CAT 120K Motor Grader
Caterpillar
The CAT 120K Motor Grader is engineered for superior performance in heavy construction tasks. With a powerful 125 Hp engine, it delivers exceptional grading efficiency, making it ideal for road construction, earthmoving, and site preparation. The 120K boasts a top forward speed of 47.5 kmph, enhancing productivity in large-scale projects, while its precise 7300 mm turning radius allows for easy maneuvering in tight spaces. The 3.7 mm moldboard width ensures smooth and accurate surface finishing, crucial for paving and leveling tasks. Additionally, the CAT 120K's robust operating weight contributes to its effectiveness in demanding environments. Whether you're involved in road maintenance or complex construction projects, the CAT 120K Motor Grader offers the reliability and performance needed to achieve top-quality results efficiently.
CAT 120K Motor Grader
Caterpillar
The CAT 120K Motor Grader is engineered for superior performance in heavy construction tasks. With a powerful 125 Hp engine, it delivers exceptional grading efficiency, making it ideal for road construction, earthmoving, and site preparation. The 120K boasts a top forward speed of 47.5 kmph, enhancing productivity in large-scale projects, while its precise 7300 mm turning radius allows for easy maneuvering in tight spaces. The 3.7 mm moldboard width ensures smooth and accurate surface finishing, crucial for paving and leveling tasks. Additionally, the CAT 120K's robust operating weight contributes to its effectiveness in demanding environments. Whether you're involved in road maintenance or complex construction projects, the CAT 120K Motor Grader offers the reliability and performance needed to achieve top-quality results efficiently.
- •Boost productivity in heavy-duty earthmoving tasks with the CAT 120K's powerful 125 Hp engine.
- •Achieve superior grading results in paving projects with the CAT 120K's 3.7 mm moldboard width.
- •Enhance site preparation and maintenance with the CAT 120K's robust operating weight and high-speed performance.
- •Navigate tight construction sites with precision using the CAT 120K's 7300 mm turning radius.
- •Maximize efficiency in road construction with the CAT 120K's top forward speed of 47.5 kmph.
Product Description
The CAT 120K Motor Grader is engineered for superior performance in heavy construction tasks. With a...
View the full brochure
CAT 120K Motor Grader Comparison with Similar Motor Grader

CAT 120K Motor Grader
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Front Axle Load
-
Rear Axle Load
-
Operating Weight
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
-
Blade Height
-
Max Lift Above Ground
-
Max Depth Of Cut
-
Blade Tilt Angle
-
Blade Pitch Angle
-
Blade Rotation Angle
-

Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
14.3Ton
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°

Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
15.35Ton
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°

FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Front Axle Load
2710kg
Rear Axle Load
6750kg
Operating Weight
9.495Ton
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°

CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Front Axle Load
-
Rear Axle Load
-
Operating Weight
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
