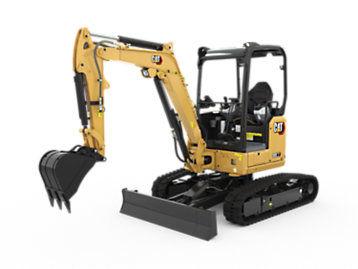

CAT 302.7 CR Mini Excavator
Caterpillar
The CAT 302.7 CR Mini Excavator is a powerhouse of performance in a compact package. Designed for a wide range of applications, this excavator delivers the power you need to get the job done. With a net power of 23.6 hp and 17.6 kW, this machine can handle demanding projects with ease. Weighing in at 6725 pounds or 3050 kg, the 302.7 CR is agile and easy to maneuver, making it perfect for working in tight spaces. With a dig depth of 106.7 inches or 2710 mm, this excavator can tackle a variety of tasks, from digging trenches to moving heavy materials. Whether you're a construction professional or a DIY enthusiast, the CAT 302.7 CR Mini Excavator is the perfect tool for the job.
CAT 302.7 CR Mini Excavator
Caterpillar
The CAT 302.7 CR Mini Excavator is a powerhouse of performance in a compact package. Designed for a wide range of applications, this excavator delivers the power you need to get the job done. With a net power of 23.6 hp and 17.6 kW, this machine can handle demanding projects with ease. Weighing in at 6725 pounds or 3050 kg, the 302.7 CR is agile and easy to maneuver, making it perfect for working in tight spaces. With a dig depth of 106.7 inches or 2710 mm, this excavator can tackle a variety of tasks, from digging trenches to moving heavy materials. Whether you're a construction professional or a DIY enthusiast, the CAT 302.7 CR Mini Excavator is the perfect tool for the job.
Product Description
The CAT 302.7 CR Mini Excavator is a powerhouse of performance in a compact package. Designed for a...
View the full brochure
CAT 302.7 CR Mini Excavator Comparison with Similar Mini Excavators
CAT 302.7 CR Mini Excavator
Engine Brand
caterpiller
Engine Model
C1.1 Turbo
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.13L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.05Ton
Max Digging Depth
2.71m
Max Reach At Ground
4.7m
Max Digging Height
4.38m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.23m
Overall Height
2.47m
Ground Clearance
-
JCB 37C Mini Excavator
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm
Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm
Sany SY35U Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
28HP
Max Torque
106Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Overall Length
4.910m
Overall Height
2.515m
Ground Clearance
295mm
Sany SY35 pro Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
24.41HP
Max Torque
71.1Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Overall Length
4.15m
Overall Height
1.55m
Ground Clearance
285mm
Compare Mini Excavators
CAT 302.7 CR Mini Excavator
JCB 37C Mini Excavator
Add any equipment
to compare
Get instant quotation on whatsapp
Connect with "Caterpillar"
Connect with Seller Instantly
