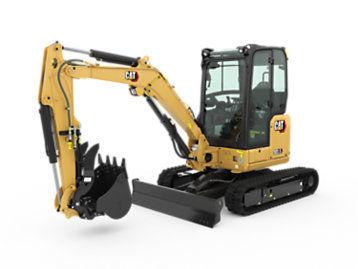

CAT 303.5 CR Mini Excavator
Caterpillar
The CAT 303.5 CR Mini Excavator is a powerful and versatile tool that excels in a variety of applications. This compact excavator boasts an impressive net power of 23.6 hp (17.6 kW) and an operating weight of 9,239 lbs (4,190 kg), making it perfect for working in tight spaces. With a maximum dig depth of 12.24 feet (3,110 mm), you can tackle projects with confidence. The 303.5 CR offers reliable performance, precise control, and low operating costs, making it an ideal choice for contractors, landscapers, and construction professionals. Whether you're digging trenches, moving dirt, or performing bulk excavation, the CAT 303.5 CR is a reliable and efficient addition to your fleet.
CAT 303.5 CR Mini Excavator
Caterpillar
The CAT 303.5 CR Mini Excavator is a powerful and versatile tool that excels in a variety of applications. This compact excavator boasts an impressive net power of 23.6 hp (17.6 kW) and an operating weight of 9,239 lbs (4,190 kg), making it perfect for working in tight spaces. With a maximum dig depth of 12.24 feet (3,110 mm), you can tackle projects with confidence. The 303.5 CR offers reliable performance, precise control, and low operating costs, making it an ideal choice for contractors, landscapers, and construction professionals. Whether you're digging trenches, moving dirt, or performing bulk excavation, the CAT 303.5 CR is a reliable and efficient addition to your fleet.
Product Description
The CAT 303.5 CR Mini Excavator is a powerful and versatile tool that excels in a variety of applica...
View the full brochure
CAT 303.5 CR Mini Excavator Comparison with Similar Mini Excavators
CAT 303.5 CR Mini Excavator
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
98.4L/min
Hydraulic Pressure (implement Circuit)
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
JCB 37C Mini Excavator
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Sany SY20U Mini Excavator
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Sany SY35U Mini Excavator
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Overall Length
4.910m
Overall Height
2.515m
Ground Clearance
295mm
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
28HP
Max Torque
106Nm
Sany SY35 pro Mini Excavator
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Overall Length
4.15m
Overall Height
1.55m
Ground Clearance
285mm
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
24.41HP
Max Torque
71.1Nm
Compare Mini Excavators
CAT 303.5 CR Mini Excavator
JCB 37C Mini Excavator
Add any equipment
to compare
