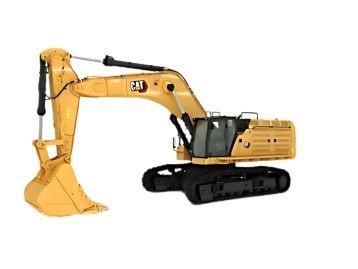

CAT 374 - Tier 3 Crawler Excavator
Caterpillar
The CAT 374 Excavator is designed to conquer any job, no matter the difficulty. With three operating modes - Power, Smart, and Eco - operators can optimize performance and reduce fuel consumption. Built for durability, the 374 features reinforced track rollers, booms, sticks, and frames for maximum structural integrity. Innovative onboard technology includes Cat Payload, Cat Grade with 2D, Lift Assist, and more, boosting efficiency and safety on the jobsite. Choose from deluxe or standard cab options, featuring ergonomic amenities like a front-facing control panel, keyless start, and touchscreen monitor. With a net power of 480 hp, operating weight of 162,900 lb, and maximum digging depth of 25.1 ft, the CAT 374 is the perfect machine for demanding excavation tasks.
CAT 374 - Tier 3 Crawler Excavator
Caterpillar
The CAT 374 Excavator is designed to conquer any job, no matter the difficulty. With three operating modes - Power, Smart, and Eco - operators can optimize performance and reduce fuel consumption. Built for durability, the 374 features reinforced track rollers, booms, sticks, and frames for maximum structural integrity. Innovative onboard technology includes Cat Payload, Cat Grade with 2D, Lift Assist, and more, boosting efficiency and safety on the jobsite. Choose from deluxe or standard cab options, featuring ergonomic amenities like a front-facing control panel, keyless start, and touchscreen monitor. With a net power of 480 hp, operating weight of 162,900 lb, and maximum digging depth of 25.1 ft, the CAT 374 is the perfect machine for demanding excavation tasks.
Product Description
The CAT 374 Excavator is designed to conquer any job, no matter the difficulty. With three operating...
View the full brochure
CAT 374 - Tier 3 Crawler Excavator Comparison with Similar Crawler Excavator
CAT 374 - Tier 3 Crawler Excavator
Engine Brand
Cat
Engine Model
C15
Engine Power
488HP
Max Torque
-
Rated Speed
-
Displacement
15.2L
Fuel Tank Capacity
-
Hydraulic Flow Rate
L/min
Hydraulic Pressure (implement Circuit)
896kgf/cm²
Hydraulic Pressure (swing Circuit)
356kgf/cm²
Hydraulic Pressure (travel Circuit)
356kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
73.89Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.66m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
4.4m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
782mm
Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm
Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
