CAT 424-2 Backhoe Loader
The CAT 424-2 Backhoe Loader is a robust and versatile machine engineered to deliver high productivity in a wide range of construction and infrastructure tasks. Powered by the fuel-efficient Cat C3.6 BS-V engine, it delivers 75 HP and 424 Nm torque, making it ideal for excavation, loading, trenching, and backfilling. Its variable displacement hydraulic system ensures smooth, responsive performance with a flow rate of 132 L/min. With an operating weight of 7.98 tons and a loader bucket capacity of 1.05 m³, the 424-2 is well-suited for roadwork, utility projects, and building construction. It offers a maximum digging depth of 4.73 meters and superior breakout forces for tough jobs. Designed for reliability and low operating costs, it's a preferred choice for contractors, municipalities, and rental fleets.
CAT 424-2 Backhoe Loader
The CAT 424-2 Backhoe Loader is a robust and versatile machine engineered to deliver high productivity in a wide range of construction and infrastructure tasks. Powered by the fuel-efficient Cat C3.6 BS-V engine, it delivers 75 HP and 424 Nm torque, making it ideal for excavation, loading, trenching, and backfilling. Its variable displacement hydraulic system ensures smooth, responsive performance with a flow rate of 132 L/min. With an operating weight of 7.98 tons and a loader bucket capacity of 1.05 m³, the 424-2 is well-suited for roadwork, utility projects, and building construction. It offers a maximum digging depth of 4.73 meters and superior breakout forces for tough jobs. Designed for reliability and low operating costs, it's a preferred choice for contractors, municipalities, and rental fleets.
Product Description
The CAT 424-2 Backhoe Loader is a robust and versatile machine engineered to deliver high productivi...
CAT 424-2 Backhoe Loader Comparison with Similar Backhoe Loader

CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

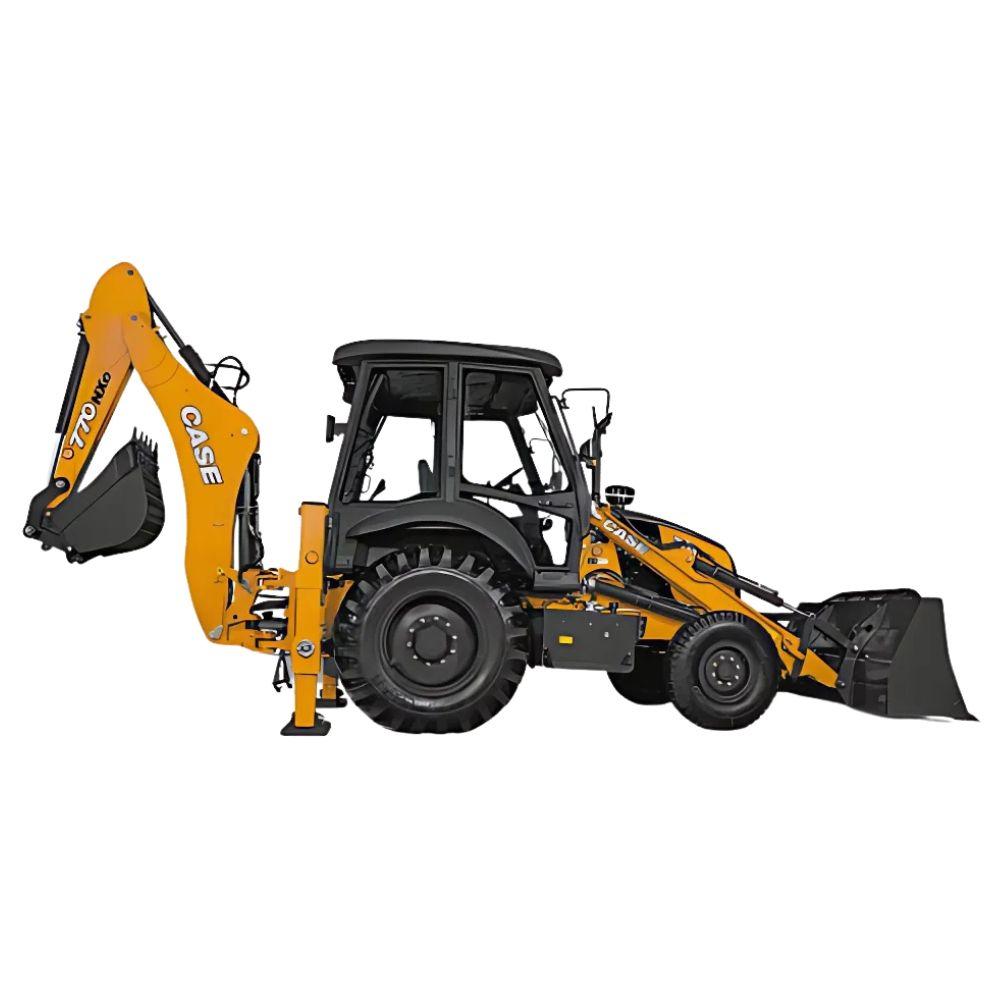

CASE 770EX Backhoe Loader
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422*W
Engine Power
74HP
Max Torque
340Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Operating Weight
7.78Ton
Max Lifting Capacity
3515kg
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

Bull HD96 4WD Backhoe Loader
Engine Brand
KIRLOSKAR
Engine Model
4R 1040 T EU STAGE II (Diesel)
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.15Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m

ESCORTS DIGMAX II Backhoe Loader
Engine Brand
Kirloskar
Engine Model
4R1190NA
Engine Power
75 HP
Max Torque
300 Nm
Rated Speed
-
Displacement
-
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.19Ton
Max Lifting Capacity
1980kg
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Reach At Full Height
1.22m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

ACE AX 124 Backhoe Loader
Engine Brand
TATA
Engine Model
497 TCIC (BS-V)
Engine Power
74HP
Max Torque
345Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
150L
Transmission Type
Synchro shuttle
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
28km/h
Service Brake Type
Hydraulically actuated wet disc
Parking Brake Type
Mechanically actuated disc
Steering Type
Hydrostatic
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
3.5m
Turning Radius (unbraked)
4.4m
Operating Weight
8.04Ton
Max Lifting Capacity
1900kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
210Bar
Max Digging Depth
4.25m
Max Reach At Ground
6.73m
Max Reach At Full Height
1.22m
Max Loading Height
3.79m
Bucket Capacity
0.24m³
Bucket Breakout Force
4950kgf
Dipper Breakout Force
4000kgf
Max Dump Height
2.76m
Max Load Over Height
3.34m
Max Hinge Pin Height
3.63m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4950kgf
Shovel Breakout Force
-
Overall Length
6.2m
Overall Width
-
Overall Height
3.6m
Ground Clearance
310mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
80-18-12/16.90-28-12
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
