Dynapac CA245 CEV-V Single drum vibratory rollers

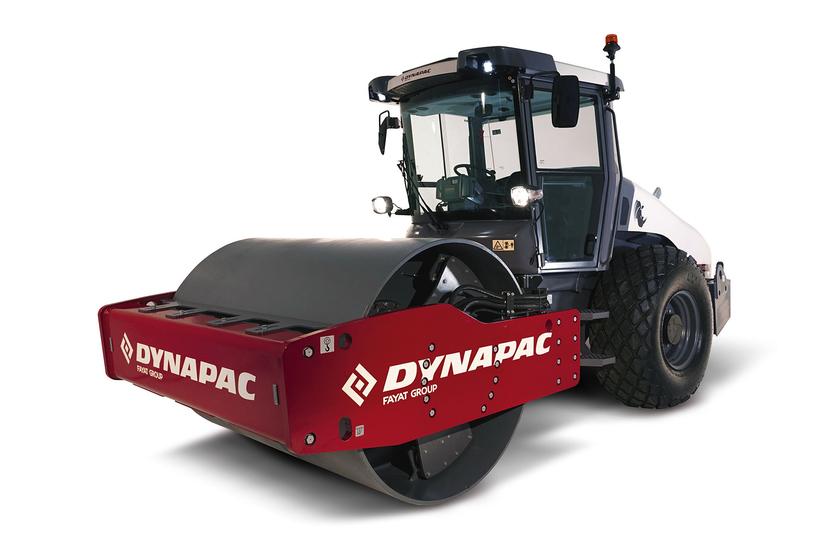

The **Dynapac CA245 CEV-V Single Drum Vibratory Roller** is a high-performance compactor designed for heavy-duty soil compaction tasks. With an operating mass of 9,700 kg and a static linear load of 25.5 kg/cm, it delivers exceptional ground penetration. Powered by a reliable 74.5 HP KOEL engine, this machine supports efficient operations with its hydrostatic drive, vibration, and steering systems. The roller offers dual amplitude settings (1.8/0.9 mm) and a strong centrifugal force of 204 kN, ensuring consistent compaction even in challenging terrains. It features a vertical oscillation of ±9°, a 29% gradeability, and a travel speed up to 11 km/h. Equipped with a 280L fuel tank and user-friendly ROPS platform, the CA245 is ideal for highways, foundations, and large infrastructure development projects.
Dynapac CA245 CEV-V Single drum vibratory rollers
The **Dynapac CA245 CEV-V Single Drum Vibratory Roller** is a high-performance compactor designed for heavy-duty soil compaction tasks. With an operating mass of 9,700 kg and a static linear load of 25.5 kg/cm, it delivers exceptional ground penetration. Powered by a reliable 74.5 HP KOEL engine, this machine supports efficient operations with its hydrostatic drive, vibration, and steering systems. The roller offers dual amplitude settings (1.8/0.9 mm) and a strong centrifugal force of 204 kN, ensuring consistent compaction even in challenging terrains. It features a vertical oscillation of ±9°, a 29% gradeability, and a travel speed up to 11 km/h. Equipped with a 280L fuel tank and user-friendly ROPS platform, the CA245 is ideal for highways, foundations, and large infrastructure development projects.
Product Description
The **Dynapac CA245 CEV-V Single Drum Vibratory Roller** is a high-performance compactor designed fo...
Dynapac CA245 CEV-V Single drum vibratory rollers Comparison with Similar Single Drum Soil Compactor
Dynapac CA245 CEV-V Single drum vibratory rollers
Engine Brand
KOEL
Engine Model
-
Engine Power
74.5HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
11km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
-
Operating Weight
9.7Ton
Front Axle Load
5440kg
Rear Axle Load
4260kg
Static Linear Load
25.5kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.9mm
Amplitude (high)
1.8mm
Centrifugal Force
204kN
Max Applied Force
-
Without Drum Drive
29%
With Drum Drive
-
Overall Length
5.6m
Overall Width
2.26m
Overall Height
2.977m
Ground Clearance
470mm
Drum Width
2.13m
Drum Diameter
1.5m
Drum Shell Thickness
0.02m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
LiuGong 611 Soil Compactor
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Operating Weight
11.0 Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Battery Voltage
12 V
Battery Capacity
150 Ah
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
11.2Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Ammann ARS 70 Single Drum Roller
Engine Brand
Kubota
Engine Model
V3307 CR-TE5
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
130L
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
30°
Oscillation Angle
9°
Turning Radius (inner)
2.58m
Turning Radius (outer)
-
Operating Weight
6.49Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
25Hz
Frequency (high)
36Hz
Amplitude (low)
1.6mm
Amplitude (high)
0.7mm
Centrifugal Force
131kN
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
1.68m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann ARS 150 Single Drum Roller
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Compare Single Drum Soil Compactor
Dynapac CA245 CEV-V Single drum vibratory rollers
LiuGong 611 Soil Compactor
