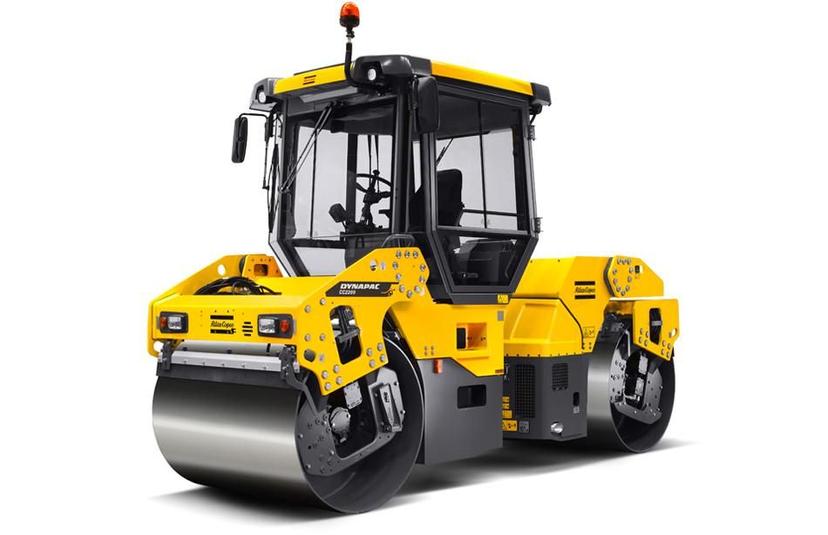

Dynapac CC2200 Double Drum Vibratory Roller
Dynapac Road Construction Equipment India Pvt Ltd
Madhya Pradesh
The Dynapac CC2200 Double Drum Vibratory Roller is a high-performance tandem roller designed for maximum efficiency, operator comfort, and precise compaction control. Built with advanced engineering, it features high-frequency vibration as standard, ensuring superior compaction on various surfaces. Its excellent visibility and intuitive controls make it user-friendly, while quick and easy servicing maximizes uptime and reduces maintenance costs.This versatile roller is perfect for highway construction, airport runways, urban street maintenance, industrial parking lots, and bridge surfacing, delivering smooth, durable, and long-lasting results. The environmentally friendly design further enhances its appeal, reducing emissions without compromising power. Whether for asphalt paving or road repairs, the Dynapac CC2200 ensures precision, efficiency, and reliability in every job. Experience unmatched performance with this next-generation vibratory roller.
Dynapac CC2200 Double Drum Vibratory Roller
Dynapac Road Construction Equipment India Pvt Ltd
Madhya Pradesh
The Dynapac CC2200 Double Drum Vibratory Roller is a high-performance tandem roller designed for maximum efficiency, operator comfort, and precise compaction control. Built with advanced engineering, it features high-frequency vibration as standard, ensuring superior compaction on various surfaces. Its excellent visibility and intuitive controls make it user-friendly, while quick and easy servicing maximizes uptime and reduces maintenance costs.This versatile roller is perfect for highway construction, airport runways, urban street maintenance, industrial parking lots, and bridge surfacing, delivering smooth, durable, and long-lasting results. The environmentally friendly design further enhances its appeal, reducing emissions without compromising power. Whether for asphalt paving or road repairs, the Dynapac CC2200 ensures precision, efficiency, and reliability in every job. Experience unmatched performance with this next-generation vibratory roller.
Product Description
The Dynapac CC2200 Double Drum Vibratory Roller is a high-performance tandem roller designed for max...
Dynapac CC2200 Double Drum Vibratory Roller Comparison with Similar Tandem Roller
Dynapac CC2200 Double Drum Vibratory Roller
Engine Brand
Cummins
Engine Model
QSB 3.3 IIIA/T3
Engine Power
99HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Displacement
-
Transmission Type
-
Max Travel Speed
-
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
Hydrostatic in forward and reverse lever.
Parking Brake Type
Failsafe multidisc brake in both drums.
Steering Type
Gear pump with constant displacem.
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Amplitude Low
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Water Tank Capacity
-
Volvo DD90C Tandem Roller
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
180 L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Volvo DD90B Tandem Roller
Engine Brand
Kirloskar
Engine Model
4R1040TC BS -III (CEV)
Engine Power
75.1HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
145L
Displacement
-
Transmission Type
closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
13km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
6.89m
Operating Weight
8.55Ton
Front Axle Load
4400kg
Rear Axle Load
4150kg
Hydraulic Tank Capacity
85L
Frequency High
50Hz
Frequency Low
36Hz
Amplitude High
1.0mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.835m
Overall Height
3.0m
Ground Clearance
305mm
Drum Width
1.675m
Water Tank Capacity
800L
Volvo DD100 Tandem Roller
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
189L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Volvo DD100C Tandem Roller
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
185L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
5.7m
Operating Weight
10.6Ton
Front Axle Load
5160kg
Rear Axle Load
4840kg
Hydraulic Tank Capacity
135L
Frequency High
42Hz
Frequency Low
30Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.25m
Overall Width
2.06m
Overall Height
2.87m
Ground Clearance
370mm
Drum Width
1.676m
Water Tank Capacity
492L
