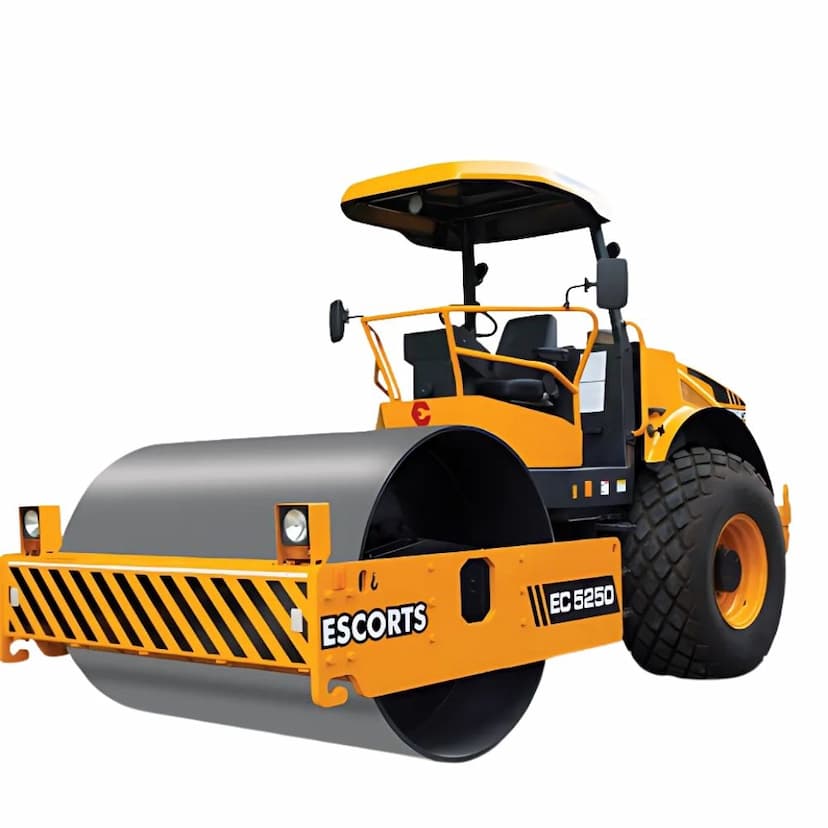

ESCORTS EC 5250 Soil Compactor

The ESCORTS EC 5250 Soil Compactor is a high-performance compaction machine designed for a variety of construction applications. Powered by a 110 HP engine, it ensures powerful operation with a drum width of 2130 mm and a drum diameter of 1523 mm (standard). Its impressive gradeability of up to 55% (depending on the model) and a ground clearance of 435 mm make it perfect for working on uneven terrains. With a turning radius as tight as 3370 mm, it offers exceptional maneuverability, making it ideal for narrow spaces. The EC 5250 also features a 265 L fuel tank, ensuring extended operation without frequent refueling, and a top speed of 23 km/h. Whether it's road construction, maintenance, or repairs, this roller delivers consistent results for smooth, high-quality finishes.

Product Description

The ESCORTS EC 5250 Soil Compactor is a high-performance compaction machine designed for a variety o...

ESCORTS EC 5250 Soil Compactor Comparison with Similar Single Drum Soil Compactor

ESCORTS EC 5250  Soil Compactor

ESCORTS EC 5250 Soil Compactor

Get Latest Price
Rating
4.4

Turning Radius (outer)

3.37m

Operating Weight

11950Ton

Front Axle Load

6650kg

Engine Brand

KOEL

Engine Model

4R1190TA1

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

265L

Transmission Type

-

Max Travel Speed

0-23km/h

Service Brake Type

Hydrostatic

Parking Brake Type

-

Steering Type

-

Steering Angle

36°

Oscillation Angle

10°

Turning Radius (inner)

5.5m

Rear Axle Load

4300kg

Static Linear Load

24.6kg/cm

Frequency (low)

30Hz

Frequency (high)

30Hz

Amplitude (low)

0.5mm

Amplitude (high)

1.72mm

Centrifugal Force

210.7kN

Max Applied Force

275.9kN

Without Drum Drive

-

With Drum Drive

-

Overall Length

5.46m

Overall Width

2.27m

Overall Height

3.04m

Ground Clearance

0.43mm

Drum Width

2.13m

Drum Diameter

1.52m

Drum Shell Thickness

-

Rear Departure Angle

-

Front Departure Angle

-

Hydraulic Oil Capacity

80L

Engine Oil Capacity

-

Coolant Capacity

-

Tyre Size

-

Battery Voltage

-

Battery Capacity

-

Currently Viewing
LiuGong 611 Soil Compactor

LiuGong 611 Soil Compactor

Get Latest Price
Rating
4.4

Turning Radius (outer)

<6.75 m

Operating Weight

11.0 Ton

Front Axle Load

-

Engine Brand

Kirloskar

Engine Model

4R1190TA1

Engine Power

110 HP

Max Torque

450 Nm

Rated Speed

2200 rpm

Displacement

4.76 L

Fuel Tank Capacity

280 L

Transmission Type

Hydrostatic

Max Travel Speed

13 km/h

Service Brake Type

Hydrostatic Propulsion System

Parking Brake Type

Spring Applied, Hydraulic Release

Steering Type

Articulation

Steering Angle

70 (±35°) °

Oscillation Angle

-

Turning Radius (inner)

-

Rear Axle Load

-

Static Linear Load

-

Frequency (low)

32Hz

Frequency (high)

34 Hz

Amplitude (low)

0.8 mm

Amplitude (high)

1.8 mm

Centrifugal Force

125 kN

Max Applied Force

385.32 kN

Without Drum Drive

-

With Drum Drive

35 %

Overall Length

5.9 m

Overall Width

2.3 m

Overall Height

3.232 m

Ground Clearance

460 mm

Drum Width

2.13 m

Drum Diameter

1.5 m

Drum Shell Thickness

-

Rear Departure Angle

-

Front Departure Angle

-

Hydraulic Oil Capacity

90 L

Engine Oil Capacity

8.5 L

Coolant Capacity

18 L

Tyre Size

23.1-26-12PR

Battery Voltage

12 V

Battery Capacity

150 Ah

Dynapac CA405D CEV-V Single drum vibratory rollers

Dynapac CA405D CEV-V Single drum vibratory rollers

Get Latest Price
Rating
4.4

Turning Radius (outer)

5.515m

Operating Weight

13.960Ton

Front Axle Load

8580kg

Engine Brand

Cummins

Engine Model

-

Engine Power

121HP

Max Torque

-

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

280L

Transmission Type

Hydrostatic

Max Travel Speed

10.8km/h

Service Brake Type

Hydrostatic in forward and reverse lever

Parking Brake Type

Failsafe multidisc brake in rear axle and front drum motor

Steering Type

Hydrostatic

Steering Angle

38°

Oscillation Angle

9°

Turning Radius (inner)

3.385m

Rear Axle Load

5260kg

Static Linear Load

40.3kg/cm

Frequency (low)

33Hz

Frequency (high)

33Hz

Amplitude (low)

0.8mm

Amplitude (high)

1.7mm

Centrifugal Force

300kN

Max Applied Force

-

Without Drum Drive

50%

With Drum Drive

-

Overall Length

5.600m

Overall Width

2.300m

Overall Height

2.977m

Ground Clearance

520mm

Drum Width

2.130m

Drum Diameter

1.543m

Drum Shell Thickness

0.035m

Rear Departure Angle

-

Front Departure Angle

-

Hydraulic Oil Capacity

-

Engine Oil Capacity

-

Coolant Capacity

-

Tyre Size

23.1-26 TL

Battery Voltage

-

Battery Capacity

-

Ammann ARS 30 PD Single Drum Roller

Ammann ARS 30 PD Single Drum Roller

Get Latest Price
Rating
4.4

Turning Radius (outer)

-

Operating Weight

3.49Ton

Front Axle Load

-

Engine Brand

Kubota

Engine Model

V2403-CR-T

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

98L

Transmission Type

-

Max Travel Speed

9.5km/h

Service Brake Type

-

Parking Brake Type

Multi Disc

Steering Type

-

Steering Angle

30°

Oscillation Angle

10°

Turning Radius (inner)

2.8m

Rear Axle Load

-

Static Linear Load

-

Frequency (low)

29Hz

Frequency (high)

38Hz

Amplitude (low)

1.5mm

Amplitude (high)

-

Centrifugal Force

68kN

Max Applied Force

-

Without Drum Drive

-

With Drum Drive

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Drum Width

1.2m

Drum Diameter

-

Drum Shell Thickness

-

Rear Departure Angle

-

Front Departure Angle

-

Hydraulic Oil Capacity

-

Engine Oil Capacity

-

Coolant Capacity

-

Tyre Size

-

Battery Voltage

-

Battery Capacity

-

Ammann ARS 110.2 Single Drum Roller

Ammann ARS 110.2 Single Drum Roller

Get Latest Price
Rating
4.4

Turning Radius (outer)

-

Operating Weight

11.1Ton

Front Axle Load

-

Engine Brand

Ashok Leyland

Engine Model

H4C410122

Engine Power

99.2HP

Max Torque

-

Rated Speed

1400rpm

Displacement

-

Fuel Tank Capacity

310L

Transmission Type

Hydrostatic

Max Travel Speed

11.5km/h

Service Brake Type

Hydrostatic

Parking Brake Type

Multi Disc

Steering Type

-

Steering Angle

36°

Oscillation Angle

10°

Turning Radius (inner)

3.25m

Rear Axle Load

-

Static Linear Load

29.1kg/cm

Frequency (low)

32Hz

Frequency (high)

35Hz

Amplitude (low)

0.9mm

Amplitude (high)

1.85mm

Centrifugal Force

275kN

Max Applied Force

275kN

Without Drum Drive

35%

With Drum Drive

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Drum Width

2.13m

Drum Diameter

-

Drum Shell Thickness

-

Rear Departure Angle

-

Front Departure Angle

-

Hydraulic Oil Capacity

-

Engine Oil Capacity

-

Coolant Capacity

-

Tyre Size

-

Battery Voltage

-

Battery Capacity

-
