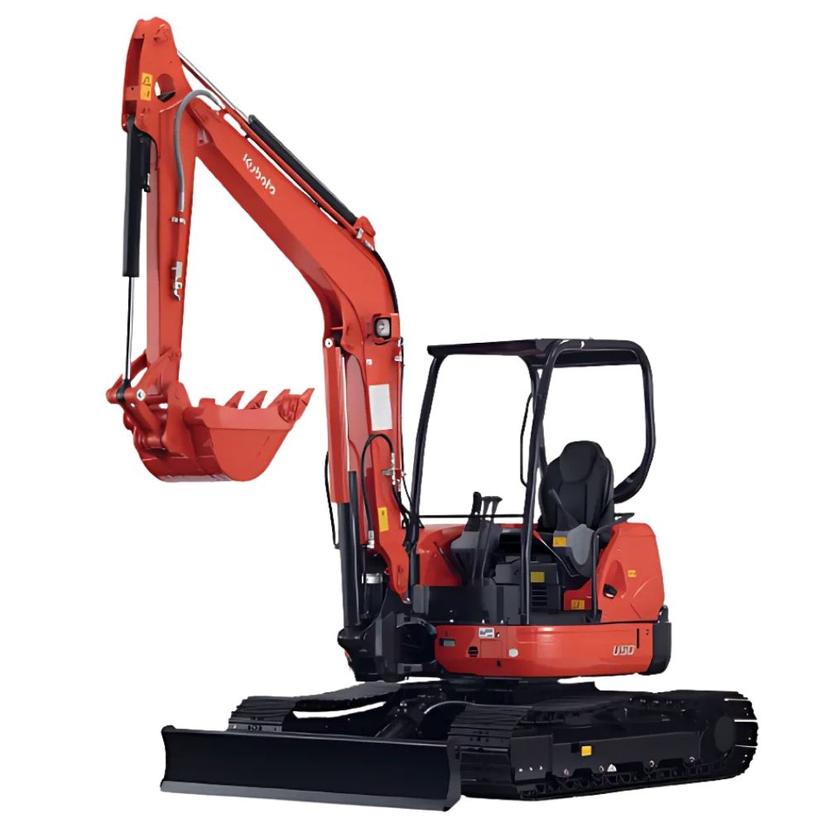

ESCORTS KUBOTA U50-5S Mini Excavator

The ESCORTS Kubota U50-5S is a highly versatile mini excavator designed for a wide range of applications. With a powerful 28.8 kW engine and a dig depth of 3.56 meters, it excels in excavation tasks, making it ideal for trenching and foundation work. Its compact design, with a minimum turning radius of 2375 mm, allows for precise maneuvering in tight spaces, making it perfect for landscaping and utility installation. The 0.16 cu m loader bucket and a maximum climbing angle of 30° enhance its performance in material handling and roadwork. With travel speeds of 2.5 km/h and 4.4 km/h, the Kubota U50-5S is well-suited for both small-scale and large-scale projects, offering efficiency and ease of use. Its excellent dump height of 4000 mm and swing speed of 8.6 rpm ensure quick and effective operation in various work environments.

Operating Weight
4.855Ton

Product Description

The ESCORTS Kubota U50-5S is a highly versatile mini excavator designed for a wide range of applicat...

View the full brochure

ESCORTS KUBOTA U50-5S Mini Excavator Comparison with Similar Mini Excavators

ESCORTS KUBOTA U50-5S Mini Excavator

ESCORTS KUBOTA U50-5S Mini Excavator

Get Latest Price
Rating
4.4

Hydraulic Pressure (travel Circuit)

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Overall Height

2.54m

Ground Clearance

320mm

Overall Length

5.51m

Engine Brand

Kubota

Engine Model

V2203-M-E3-BH-BR2/BR1

Engine Power

38.6HP

Max Torque

-

Rated Speed

2250rpm

Displacement

2.197L

Fuel Tank Capacity

64L

Operating Weight

4.855Ton

Max Digging Depth

3.56m

Max Reach At Ground

-

Max Digging Height

5.63m

Max Dumping Height

4m

Bucket Capacity

0.16

Bucket Breakout Force

3720kgf

Arm Crowd Force

-

Currently Viewing
JCB	37C Mini Excavator

JCB 37C Mini Excavator

Get Latest Price
Rating
4.4

Hydraulic Pressure (travel Circuit)

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

255kgf/cm²

Hydraulic Pressure (swing Circuit)

220kgf/cm²

Hydraulic Pressure (pilot Circuit)

-

Overall Height

2.48m

Ground Clearance

275mm

Overall Length

4.81m

Engine Brand

JCB

Engine Model

Perkins 403J-17

Engine Power

25.3HP

Max Torque

91.9Nm

Rated Speed

-

Displacement

1.662L

Fuel Tank Capacity

50L

Operating Weight

4.05Ton

Max Digging Depth

3.34m

Max Reach At Ground

5.02m

Max Digging Height

4.73m

Max Dumping Height

3.54m

Bucket Capacity

-

Bucket Breakout Force

3304kgf

Arm Crowd Force

2009kgf

Sany SY20U Mini Excavator

Sany SY20U Mini Excavator

Get Latest Price
Rating
4.4

Hydraulic Pressure (travel Circuit)

250kgf/cm²

Hydraulic Flow Rate

70L/min

Hydraulic Pressure (implement Circuit)

250kgf/cm²

Hydraulic Pressure (swing Circuit)

166kgf/cm²

Hydraulic Pressure (pilot Circuit)

41kgf/cm²

Overall Height

2.49m

Ground Clearance

160mm

Overall Length

3.515m

Engine Brand

YANMAR

Engine Model

3TNV80F

Engine Power

19.8HP

Max Torque

67.4Nm

Rated Speed

2400rpm

Displacement

1.22L

Fuel Tank Capacity

21L

Operating Weight

1.95Ton

Max Digging Depth

2.38m

Max Reach At Ground

4.01m

Max Digging Height

3.41m

Max Dumping Height

2.35m

Bucket Capacity

0.05

Bucket Breakout Force

1692.72kgf

Arm Crowd Force

938.13kgf

Sany SY35U Mini Excavator

Sany SY35U Mini Excavator

Get Latest Price
Rating
4.4

Hydraulic Pressure (travel Circuit)

250kgf/cm²

Hydraulic Flow Rate

99L/min

Hydraulic Pressure (implement Circuit)

250kgf/cm²

Hydraulic Pressure (swing Circuit)

210kgf/cm²

Hydraulic Pressure (pilot Circuit)

35.7kgf/cm²

Overall Height

2.515m

Ground Clearance

295mm

Overall Length

4.910m

Engine Brand

Yanmar

Engine Model

3TNV88-BSSY

Engine Power

28HP

Max Torque

106Nm

Rated Speed

2200rpm

Displacement

1.642L

Fuel Tank Capacity

40L

Operating Weight

-

Max Digging Depth

3.105m

Max Reach At Ground

5.465m

Max Digging Height

4.855m

Max Dumping Height

3.460m

Bucket Capacity

0.12

Bucket Breakout Force

3099.93kgf

Arm Crowd Force

1855.88kgf

Sany SY35 pro Mini Excavator

Sany SY35 pro Mini Excavator

Get Latest Price
Rating
4.4

Hydraulic Pressure (travel Circuit)

249.83kgf/cm²

Hydraulic Flow Rate

84L/min

Hydraulic Pressure (implement Circuit)

249.83kgf/cm²

Hydraulic Pressure (swing Circuit)

249.83kgf/cm²

Hydraulic Pressure (pilot Circuit)

35.69kgf/cm²

Overall Height

1.55m

Ground Clearance

285mm

Overall Length

4.15m

Engine Brand

Yanmar

Engine Model

3TNV88-BSSY

Engine Power

24.41HP

Max Torque

71.1Nm

Rated Speed

2200rpm

Displacement

1.642L

Fuel Tank Capacity

40L

Operating Weight

-

Max Digging Depth

2.71m

Max Reach At Ground

4.645m

Max Digging Height

4.845m

Max Dumping Height

3.505m

Bucket Capacity

0.072

Bucket Breakout Force

1662.14kgf

Arm Crowd Force

1346.03kgf
