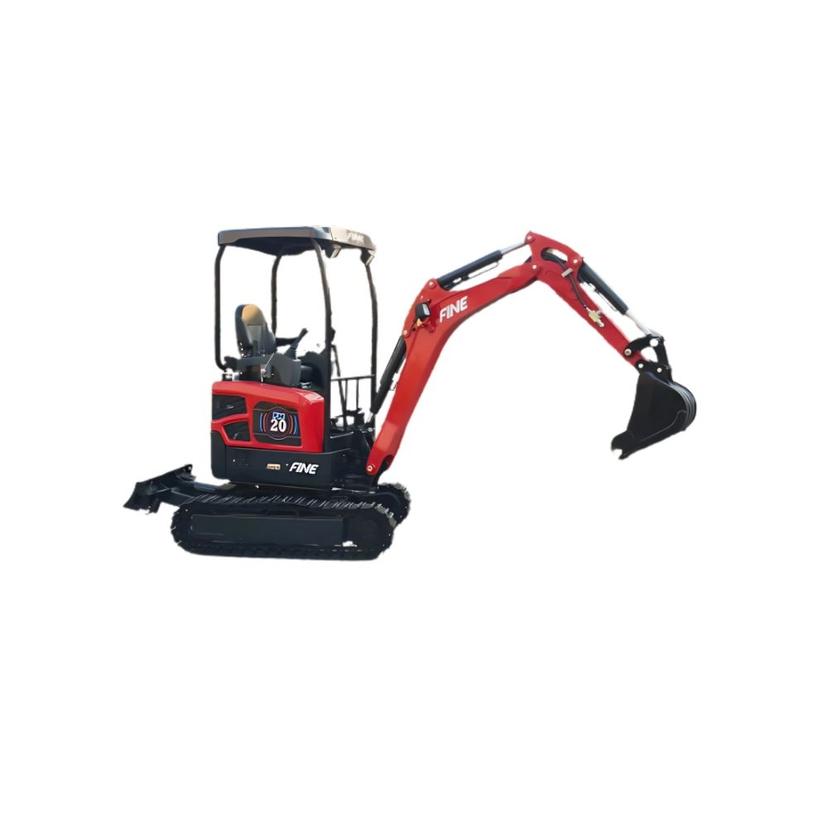

FINE FM20 Mini Excavator
Fine Equipments India Pvt. Ltd.
The FINE FM 20 Mini Excavator is a versatile and compact machine designed for efficiency and precision across various applications. With an operating weight of 2000 kg and a zero-tail swing design, it is perfect for confined spaces and urban construction projects. Powered by a 19 hp Kubota D 1105 engine, it delivers reliable performance with a fuel-efficient operation. The excavator features a maximum digging depth of 2400 mm and a bucket digging force of 18 kN, making it ideal for trenching, utility installations, and landscaping tasks. Its adjustable width (990 mm to 1300 mm) and hydraulic lifting dozer blade enhance flexibility and precision. With a digging radius of 4040 mm and vertical digging depth of 2025 mm, the FM 20 is a robust solution for construction, agriculture, and infrastructure projects.
FINE FM20 Mini Excavator
Fine Equipments India Pvt. Ltd.
The FINE FM 20 Mini Excavator is a versatile and compact machine designed for efficiency and precision across various applications. With an operating weight of 2000 kg and a zero-tail swing design, it is perfect for confined spaces and urban construction projects. Powered by a 19 hp Kubota D 1105 engine, it delivers reliable performance with a fuel-efficient operation. The excavator features a maximum digging depth of 2400 mm and a bucket digging force of 18 kN, making it ideal for trenching, utility installations, and landscaping tasks. Its adjustable width (990 mm to 1300 mm) and hydraulic lifting dozer blade enhance flexibility and precision. With a digging radius of 4040 mm and vertical digging depth of 2025 mm, the FM 20 is a robust solution for construction, agriculture, and infrastructure projects.
Product Description
The FINE FM 20 Mini Excavator is a versatile and compact machine designed for efficiency and precisi...
View the full brochure
FINE FM20 Mini Excavator Comparison with Similar Mini Excavators

FINE FM20 Mini Excavator
Engine Brand
kubota
Engine Model
Kubota D 1105
Engine Power
24.41HP
Max Torque
-
Rated Speed
2200rpm
Displacement
1.123L
Fuel Tank Capacity
17L
Hydraulic Flow Rate
25L/min
Hydraulic Pressure (implement Circuit)
209.0kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
2.15m
Max Reach At Ground
3.65m
Max Digging Height
3.365m
Max Dumping Height
2.29m
Bucket Capacity
0.07m³
Bucket Breakout Force
1835.5kgf
Arm Crowd Force
1121.7kgf
Overall Length
3.955m
Overall Height
2.35m
Ground Clearance
175mm

JCB 37C Mini Excavator
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm

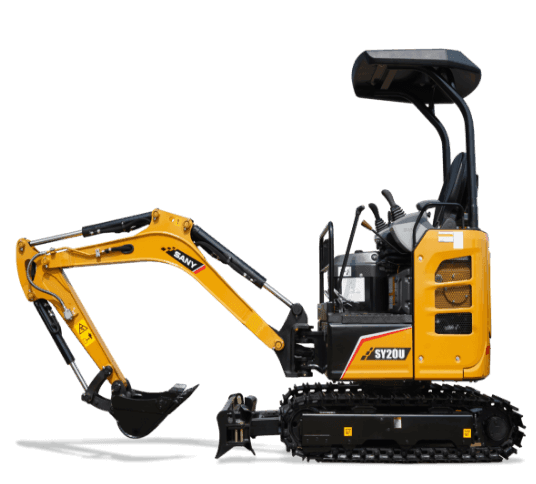

Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm

Sany SY35U Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
28HP
Max Torque
106Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Overall Length
4.910m
Overall Height
2.515m
Ground Clearance
295mm

Sany SY35 pro Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
24.41HP
Max Torque
71.1Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Overall Length
4.15m
Overall Height
1.55m
Ground Clearance
285mm
Compare Mini Excavators

FINE FM20 Mini Excavator

JCB 37C Mini Excavator
Add any equipment
to compare

Get instant quotation on whatsapp
Connect with "Fine Equipments India Pvt. Ltd."
Connect with Seller Instantly
Related Products
More Products from Fine Equipments India Pvt. Ltd.
About Company
Company Name
Fine Equipments India Pvt. Ltd.
GST Number
27AAACF7791C1ZL
Since
January 2002
Address
Baner, Pune, Maharashtra
Fine Equipments India Pvt. Ltd., established in 2002, is a recognized leader in the construction and demolition equipment sector. The company offers a wide range of products, including rock breakers, motor graders, mini excavators, sand wash plants, mobile crushers, and truck-mounted cranes. Known for its proactive sales and service network, Fine ensures reliable support even in remote locations across India. The company’s growth is driven by its commitment to understanding customer needs and delivering durable, high-performance equipment. Fine’s products are known for their endurance, productivity, safety, and environmental standards, making them a preferred choice for contractors and equipment hirers.
