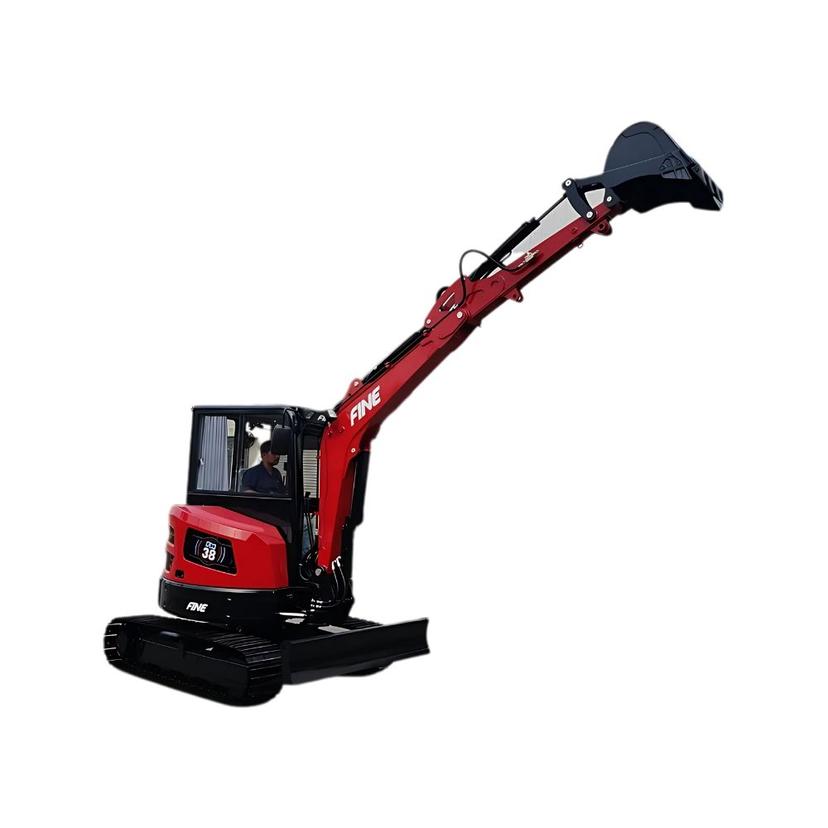

FINE FM38 Mini Excavator
Fine Equipments India Pvt. Ltd.
The FINE FM 38 Mini Excavator is a robust and versatile machine designed to handle heavy-duty excavation tasks with precision and efficiency. With an operating weight of 3810 kg and a zero-tail swing design, it excels in confined spaces, making it ideal for urban construction and maintenance projects. Powered by a 24.40 hp Kubota D1703 engine, it delivers reliable performance with exceptional fuel efficiency. The excavator offers a maximum digging depth of 4540 mm and a bucket digging force of 30 kN, making it suitable for deep excavation, trenching, and utility installations. Its hydraulic lifting dozer blade enhances landscaping and grading tasks, while the spacious AC cabin ensures operator comfort. Whether for construction, agriculture, or infrastructure projects, the FM 38 delivers outstanding performance and versatility in challenging environments.
FINE FM38 Mini Excavator
Fine Equipments India Pvt. Ltd.
The FINE FM 38 Mini Excavator is a robust and versatile machine designed to handle heavy-duty excavation tasks with precision and efficiency. With an operating weight of 3810 kg and a zero-tail swing design, it excels in confined spaces, making it ideal for urban construction and maintenance projects. Powered by a 24.40 hp Kubota D1703 engine, it delivers reliable performance with exceptional fuel efficiency. The excavator offers a maximum digging depth of 4540 mm and a bucket digging force of 30 kN, making it suitable for deep excavation, trenching, and utility installations. Its hydraulic lifting dozer blade enhances landscaping and grading tasks, while the spacious AC cabin ensures operator comfort. Whether for construction, agriculture, or infrastructure projects, the FM 38 delivers outstanding performance and versatility in challenging environments.
Product Description
The FINE FM 38 Mini Excavator is a robust and versatile machine designed to handle heavy-duty excava...
View the full brochure
FINE FM38 Mini Excavator Comparison with Similar Mini Excavators

FINE FM38 Mini Excavator
Engine Brand
Kubota
Engine Model
D1703
Engine Power
33.3HP
Max Torque
-
Max Dumping Height
3.720m
Bucket Capacity
0.12m³
Bucket Breakout Force
3059.3 kgf
Arm Crowd Force
1835.6kgf
Ground Clearance
380mm
Rated Speed
2200rpm
Displacement
1.647 L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
45.0L/min
Hydraulic Pressure (implement Circuit)
220kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
3.480m
Max Reach At Ground
5.295m
Max Digging Height
5.480m
Overall Length
4.945m
Overall Height
2.525m

JCB 37C Mini Excavator
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Ground Clearance
275mm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Overall Length
4.81m
Overall Height
2.48m

Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Ground Clearance
160mm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Overall Length
3.515m
Overall Height
2.49m

Sany SY35U Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
28HP
Max Torque
106Nm
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Ground Clearance
295mm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Overall Length
4.910m
Overall Height
2.515m

Sany SY35 pro Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
24.41HP
Max Torque
71.1Nm
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Ground Clearance
285mm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Overall Length
4.15m
Overall Height
1.55m
