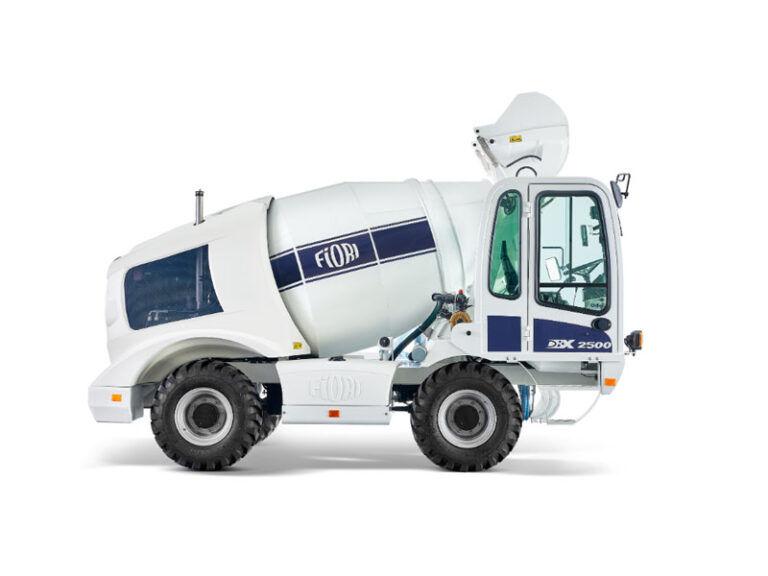

Fiori DBX 2500 Front Loading Mixer
The Fiori DBX 2500 Front Loading Mixer is a compact, efficient, and reliable self-loading concrete mixer designed for on-site concrete production. With a drum capacity suited for small to mid-scale projects, it ensures consistent mixing quality and fast discharge. Ideal for construction sites with limited infrastructure, this front-loading mixer simplifies operations by combining loading, mixing, and transporting into one machine. It’s widely used in road repairs, irrigation works, housing projects, and rural infrastructure development. The DBX 2500 is especially favored by rental fleets due to its versatility, ease of operation, and low maintenance needs. Its mobility and self-sufficiency reduce dependency on external batching plants, making it a go-to solution for cost-effective and timely concrete delivery. Built to handle diverse terrains, it delivers performance where it’s needed most.
Fiori DBX 2500 Front Loading Mixer
The Fiori DBX 2500 Front Loading Mixer is a compact, efficient, and reliable self-loading concrete mixer designed for on-site concrete production. With a drum capacity suited for small to mid-scale projects, it ensures consistent mixing quality and fast discharge. Ideal for construction sites with limited infrastructure, this front-loading mixer simplifies operations by combining loading, mixing, and transporting into one machine. It’s widely used in road repairs, irrigation works, housing projects, and rural infrastructure development. The DBX 2500 is especially favored by rental fleets due to its versatility, ease of operation, and low maintenance needs. Its mobility and self-sufficiency reduce dependency on external batching plants, making it a go-to solution for cost-effective and timely concrete delivery. Built to handle diverse terrains, it delivers performance where it’s needed most.
Product Description
The Fiori DBX 2500 Front Loading Mixer is a compact, efficient, and reliable self-loading concrete m...
Fiori DBX 2500 Front Loading Mixer Comparison with Similar Self Loading Concrete Mixer
Fiori DBX 2500 Front Loading Mixer
Engine Brand
Mahindra
Engine Model
CEV Stage IV Turbocharged Intercool 4-Cylinder CRDI
Engine Power
74HP
Rated Speed
-
Cooling System
-
Emission Compliance
CEV Stage IV
Fuel Tank Capacity
90L
Max Travel Speed
28km/h
Working Speed
-
Gradeability
23° / %
Drive Type
Hydrostatic 4x4 Four-Wheel Drive
Service Brake Type
Internal oil-bath disc (dual circuit, servo-assisted)
Parking Brake Type
Negative type, oil-bath discs on rear axle
Steering Type
Load-sensing power steering
Steering Modes
2WS, 4WS, Crab Steering
Turning Radius
-
Drum Output Per Batch
2.5Cu.M
Drum Volume
-
Drum Rotation
Constant Speed Drive RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
560 L
Loading Shovel System
Grab bucket with lifting arms & electro-hydraulic trap door
Hydraulic Oil Capacity
125L
Hydraulic Flow Rate
40L/min
Hydraulic Pressure
230Bar
Wheelbase
-
Operating Weight
5.4kg
Laden Weight
11.4kg
Tyre Size
12.5-18 16PR
Tyre Type
-
Water Tank Capacity
570L
Water Pump Capacity
-
Water System Features
Self-priming pump, electromagnetic flow meter, quick suction, cab control
Battery Voltage
12V
Battery Capacity
150Ah
Additional Features
CBV 2.0 Batch Controller, ROPS/FOPS Cabin, LCD display with camera (optional)
Schwing SLM BEE 2.1 Self Loading Concrete Mixer
Engine Brand
-
Engine Model
-
Engine Power
49.5HP
Rated Speed
-
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
-
Max Travel Speed
-
Working Speed
-
Gradeability
280 (54%)° / %
Drive Type
-
Service Brake Type
Master cylinder actuated disc brakes
Parking Brake Type
Master cylinder actuated disc brakes
Steering Type
Hydrostatic steering (Fully Powered)
Steering Modes
Turning Radius
-
Drum Output Per Batch
-
Drum Volume
-
Drum Rotation
-
Concrete Output Efficiency
-
Loader Bucket Capacity
-
Loading Shovel System
-
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
kg
Laden Weight
5690kg
Tyre Size
-
Tyre Type
-
Water Tank Capacity
380L
Water Pump Capacity
-
Water System Features
-
Battery Voltage
-
Battery Capacity
-
Additional Features
-
Schwing SLM 2100 Self Loading Concrete Mixer
Engine Brand
-
Engine Model
-
Engine Power
49.5HP
Rated Speed
-
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
-
Max Travel Speed
22 km/h
Working Speed
-
Gradeability
280 (54%)° / %
Drive Type
-
Service Brake Type
Master cylinder actuated disc brakes
Parking Brake Type
-
Steering Type
-
Steering Modes
-
Turning Radius
-
Drum Output Per Batch
2.3Cu.M
Drum Volume
-
Drum Rotation
0 to 20RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
-
Loading Shovel System
-
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
-
Laden Weight
6290kg
Tyre Size
-
Tyre Type
-
Water Tank Capacity
380L
Water Pump Capacity
-
Water System Features
-
Battery Voltage
-
Battery Capacity
-
Additional Features
-
Schwing SLM 2600 Self Loading Concrete Mixer
Engine Brand
-
Engine Model
-
Engine Power
74.5HP
Rated Speed
-
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
-
Max Travel Speed
27km/h
Working Speed
-
Gradeability
24 (44%)° / %
Drive Type
-
Service Brake Type
Master cylinder actuated disc brakes
Parking Brake Type
-
Steering Type
2 stage gear reduction
Steering Modes
Hydrostatic steering
Turning Radius
-
Drum Output Per Batch
2.8Cu.M
Drum Volume
-
Drum Rotation
0 to 20RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
-
Loading Shovel System
415
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
-
Laden Weight
-
Tyre Size
-
Tyre Type
-
Water Tank Capacity
380L
Water Pump Capacity
-
Water System Features
-
Battery Voltage
-
Battery Capacity
-
Additional Features
-
Schwing SLM 4600 Self Loading Concrete Mixer
Engine Brand
-
Engine Model
-
Engine Power
110 HP
Rated Speed
-
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
-
Max Travel Speed
27km/h
Working Speed
-
Gradeability
24 (44%)° / %
Drive Type
-
Service Brake Type
Master cylinder actuated disc brakes
Parking Brake Type
-
Steering Type
Hydrostatic steering (Fully Powered)
Steering Modes
2 stage gear reduction
Turning Radius
-
Drum Output Per Batch
4.6Cu.M
Drum Volume
-
Drum Rotation
0 to 18RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
-
Loading Shovel System
600
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
-
Laden Weight
-
Tyre Size
-
Tyre Type
-
Water Tank Capacity
750L
Water Pump Capacity
-
Water System Features
-
Battery Voltage
-
Battery Capacity
-
Additional Features
-
