Gamzen 5050 Ex Skid Steer Loader
Gamzen - Construction Equipment Manufacturer In India
Maharashtra
The Gamzen 5050 Ex Skid Steer Loader is a high-performance machine designed for enhanced productivity and versatility on job sites. Powered by a reliable Hyundai or Cummins engine, it offers an operating weight of 2680 kg and a rated capacity of 730 kg, making it ideal for heavy-duty applications. Its standout feature is the extended bucket, which boosts the dump height to 3274 mm—perfect for loading into high-sided trucks and containers. With a compact design (3220 mm length, 1690 mm width) and 360-degree rotation, it excels in confined spaces. Built for operator comfort and efficiency, it also features a triple filtration system for longer engine life. The Gamzen 5050 Ex is the ultimate solution for construction, landscaping, and industrial loading tasks.
Gamzen 5050 Ex Skid Steer Loader
Gamzen - Construction Equipment Manufacturer In India
Maharashtra
The Gamzen 5050 Ex Skid Steer Loader is a high-performance machine designed for enhanced productivity and versatility on job sites. Powered by a reliable Hyundai or Cummins engine, it offers an operating weight of 2680 kg and a rated capacity of 730 kg, making it ideal for heavy-duty applications. Its standout feature is the extended bucket, which boosts the dump height to 3274 mm—perfect for loading into high-sided trucks and containers. With a compact design (3220 mm length, 1690 mm width) and 360-degree rotation, it excels in confined spaces. Built for operator comfort and efficiency, it also features a triple filtration system for longer engine life. The Gamzen 5050 Ex is the ultimate solution for construction, landscaping, and industrial loading tasks.
Product Description
The Gamzen 5050 Ex Skid Steer Loader is a high-performance machine designed for enhanced productivit...
View the full brochure
Gamzen 5050 Ex Skid Steer Loader Comparison with Similar Skid Steer Loader
Gamzen 5050 Ex Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.954194Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
730kg
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.274m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
0.817m
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.519m
Overall Width
1.69m
Overall Height
2.027m
Wheelbase
1.045m
Ground Clearance
174mm
Turning Radius
1.956m
Manitou 1050RT Skid Steer Loader
Engine Brand
Yanmar
Engine Model
3TNV88C-KMSV
Engine Power
34.20HP
Max Torque
109.40Nm
Rated Speed
2800rpm
Fuel Tank Capacity
36L
Emission Standard
-
Transmission Type
-
Max Travel Speed
10.10km/h
Operating Weight
2.14Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
1361kg
Hydraulic Flow Rate
55L/min
Hydraulic Pressure
-
Hydraulic System Capacity
30L
Max Dump Height
2.134m
Max Hinge Pin Height
2.769m
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
2.985m
Overall Width
1.290m
Overall Height
1.816m
Wheelbase
1.283m
Ground Clearance
0.191mm
Turning Radius
-
ACE SS 75 Skid Steer Loader
Engine Brand
ACE / Simpson
Engine Model
A50 / TSJ436
Engine Power
50 / 60 / 75HP
Max Torque
-
Rated Speed
2100 / 2200rpm
Fuel Tank Capacity
55L
Emission Standard
Bharat (TREM) Stage III A / CEV / BSIII / Tier 2 / BS-III
Transmission Type
Infinitely variable hydrostatic drive
Max Travel Speed
10km/h
Operating Weight
2.85Ton
Rated Operating Capacity
750kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1500kg
Hydraulic Flow Rate
82L/min
Hydraulic Pressure
-
Hydraulic System Capacity
65L
Max Dump Height
2.29m
Max Hinge Pin Height
3.15m
Max Reach At Full Height
0.68m
Reach At Ground Level
-
Bucket Capacity
0.4m³
Loader Arm Breakout Force
-
Dump Angle
40°
Lift Path
-
Overall Length
3.62m
Overall Width
1.645m
Overall Height
2.11m
Wheelbase
1.01m
Ground Clearance
185mm
Turning Radius
-
Gamzen 5050 Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.88Ton
Rated Operating Capacity
850kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.236m
Max Hinge Pin Height
2.87m
Max Reach At Full Height
0.686m
Reach At Ground Level
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.27m
Overall Width
1.69m
Overall Height
2.025m
Wheelbase
1.045m
Ground Clearance
203mm
Turning Radius
1.858m

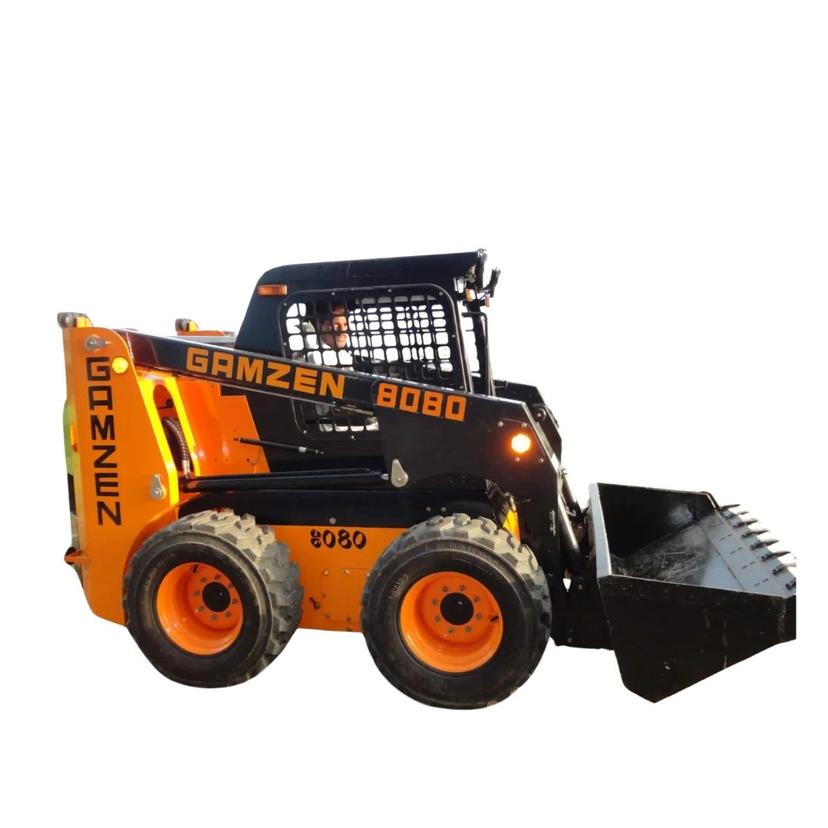

Gamzen 8080 EX Skid Steer Loader
Engine Brand
Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
-
Operating Weight
3.659674Ton
Rated Operating Capacity
1140kg
Rated Operating Capacity (optional)
-
Max Tipping Load
2280kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.532m
Max Hinge Pin Height
-
Max Reach At Full Height
1.021m
Reach At Ground Level
-
Bucket Capacity
0.7m³
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
3509m
Overall Width
1.886m
Overall Height
2.055m
Wheelbase
1.181m
Ground Clearance
195mm
Turning Radius
-
