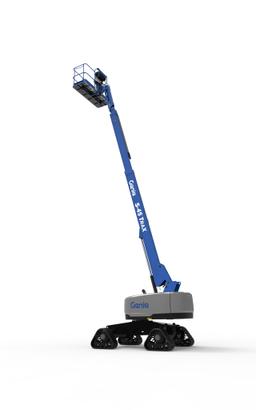

Genie S-45 Trax Telescopic Boom Lift

The Genie S-45 Trax Telescopic Boom Lift is designed to provide exceptional performance in challenging outdoor environments. With its 12.19 m maximum working height and 9.67 m horizontal reach, this lift ensures safe and efficient access to elevated areas, even in rough terrain. Powered by a 48 hp diesel engine, it offers superior performance with a 45% gradeability, making it ideal for construction sites, industrial facilities, and maintenance tasks. The 360° turntable rotation and a stable platform with a 2-person capacity further enhance its versatility. Equipped with a powerful hydraulic system and robust track system, the Genie S-45 Trax is perfect for high-reach tasks in hard-to-access areas, including infrastructure projects, tree trimming, and more. Whether for construction, maintenance, or inspection, this boom lift provides unparalleled reliability and mobility.

Product Description

The Genie S-45 Trax Telescopic Boom Lift is designed to provide exceptional performance in challengi...

View the full brochure

Genie S-45 Trax Telescopic Boom Lift Comparison with Similar Telescopic Boom Lift

Genie S-45 Trax Telescopic Boom Lift

Genie S-45 Trax Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

Deutz

Engine Model

D2011

Engine Power

48 HP

Fuel Tank Capacity

132L

Battery Voltage/cap.

-

Transmission Type

-

Drive Type

4WD

Max Travel Speed

6.40km/h

Travel Speed (raised)

1.1km/h

Gradeability

45 %

Service Brake Type

-

Parking Brake Type

-

Steering Type

Dual axis joystick steering

Turning Radius (inside)

2.08m

Turning Radius (outside)

5.23m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

454kg

Operating Weight

8.623Ton

Hydraulic Oil Capacity

144L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

9.47m

Overall Width

2.49m

Overall Height

2.51m

Ground Clearance

0.32m

Wheelbase

2.46m

Turntable Tail Swing

0.97m

Max Platform Height

13.56m

Max Working Height

15.56m

Max Horizontal Outreach

11.02m

Platform Rotation

160°

Turntable Rotation

360°

Jib Articulation

133°

Platform Size (l×w)

2.44×1.83 m

Max Platform Occupants

2Persons

Tilt Alarm / Sensor

7° / 5°

Platform Entry Type

Side swing gate

Tyres

315/55D20

Power Steering

Yes

Drive Enable / Alarms

Yes

Currently Viewing
Genie S-40 Trax Telescopic Boom Lift

Genie S-40 Trax Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

Perkins

Engine Model

404F-E22T

Engine Power

49HP

Fuel Tank Capacity

-

Battery Voltage/cap.

Dual Battery System

Transmission Type

Diesel

Drive Type

4WD

Max Travel Speed

4km/h

Travel Speed (raised)

1.1km/h

Gradeability

45 %

Service Brake Type

Dual Axis Joystick

Parking Brake Type

-

Steering Type

Dual Axis Joystick

Turning Radius (inside)

2.03 m

Turning Radius (outside)

5.18m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

454 kg

Operating Weight

6,969 Ton

Hydraulic Oil Capacity

144L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

0.30 m

Wheelbase

-

Turntable Tail Swing

0.97 m

Max Platform Height

12.04m

Max Working Height

14.04m

Max Horizontal Outreach

9.47 m

Platform Rotation

160°

Turntable Rotation

360 °

Jib Articulation

-

Platform Size (l×w)

2.44×1.83 m

Max Platform Occupants

2Persons

Tilt Alarm / Sensor

-

Platform Entry Type

-

Tyres

-

Power Steering

-

Drive Enable / Alarms

-

SANY SPT22 Telescopic Boom Lift

SANY SPT22 Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

DEUTZ / KUBOTA

Engine Model

D2.9 / V2607-DI-T

Engine Power

48.8 / 49.0 HP

Fuel Tank Capacity

160L

Battery Voltage/cap.

-

Transmission Type

-

Drive Type

4WD

Max Travel Speed

5.5km/h

Travel Speed (raised)

1.1km/h

Gradeability

45 %

Service Brake Type

-

Parking Brake Type

-

Steering Type

2WS

Turning Radius (inside)

2.40m

Turning Radius (outside)

5.50m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

480kg

Operating Weight

12.7Ton

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

11.0 m

Overall Width

2.45m

Overall Height

2.70m

Ground Clearance

0.31m

Wheelbase

2.50m

Turntable Tail Swing

1.50m

Max Platform Height

22.4m

Max Working Height

24.4m

Max Horizontal Outreach

16.5m

Platform Rotation

180°

Turntable Rotation

360 (Continuous) °

Jib Articulation

+70 / -65 °

Platform Size (l×w)

2.44 × 0.91 m

Max Platform Occupants

3Persons

Tilt Alarm / Sensor

X-5° / Y-5°

Platform Entry Type

-

Tyres

-

Power Steering

-

Drive Enable / Alarms

-

SANY SPT26 Telescopic Boom Lift

SANY SPT26 Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

DEUTZ / KUBOTA

Engine Model

TD2.9 / V3307-TE5B

Engine Power

74.29HP

Fuel Tank Capacity

2600L

Battery Voltage/cap.

160

Transmission Type

-

Drive Type

4WD

Max Travel Speed

6.0km/h

Travel Speed (raised)

0.8km/h

Gradeability

45%

Service Brake Type

-

Parking Brake Type

-

Steering Type

2WS

Turning Radius (inside)

3.66m

Turning Radius (outside)

6.86m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

400kg

Operating Weight

15.7Ton

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

12.3m

Overall Width

2.49m

Overall Height

3.05m

Ground Clearance

0.41m

Wheelbase

3.05m

Turntable Tail Swing

1.5m

Max Platform Height

26.7m

Max Working Height

28.7m

Max Horizontal Outreach

20.3m

Platform Rotation

180°

Turntable Rotation

360 Continuous°

Jib Articulation

+70° / -65°°

Platform Size (l×w)

2.44×0.91m

Max Platform Occupants

3Persons

Tilt Alarm / Sensor

X-5° / Y-5°

Platform Entry Type

-

Tyres

-

Power Steering

-

Drive Enable / Alarms

-

Genie S-40 XC Telescopic Boom Lift

Genie S-40 XC Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

Perkins

Engine Model

404F-E22T

Engine Power

49HP

Fuel Tank Capacity

-

Battery Voltage/cap.

Dual Battery System

Transmission Type

Diesel

Drive Type

4WD

Max Travel Speed

6.40 km/h

Travel Speed (raised)

1.1km/h

Gradeability

45%

Service Brake Type

-

Parking Brake Type

-

Steering Type

Dual axis joystick steering

Turning Radius (inside)

2.08 m

Turning Radius (outside)

5.23m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

454kg

Operating Weight

6,325 Ton

Hydraulic Oil Capacity

144L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

0.32m

Wheelbase

-

Turntable Tail Swing

0.97 m

Max Platform Height

12.04m

Max Working Height

14.04 m

Max Horizontal Outreach

9.47 m

Platform Rotation

160°

Turntable Rotation

360°

Jib Articulation

-

Platform Size (l×w)

2.44×1.83 m

Max Platform Occupants

3 Persons

Tilt Alarm / Sensor

-

Platform Entry Type

-

Tyres

-

Power Steering

-

Drive Enable / Alarms

-
