Genie Z™-45/25J DC Articulating Boom Lift
The Genie Z™-45/25J DC Articulating Boom Lift is a versatile access solution designed for both indoor and outdoor applications. With a maximum working height of 51 ft 9 in (15.94 m) and a horizontal outreach of 25 ft 1 in (7.65 m), it offers exceptional reach and flexibility. Powered by a 48V DC system with a diesel generator as a 100-amp battery charger, it ensures reliable operation in demanding environments. Its 6 ft inside turning radius and 180° powered platform rotation deliver precise manoeuvrability in tight spaces. Capable of lifting up to 500 lbs (227 kg), it’s perfect for maintenance, electrical installations, façade work, and industrial inspections. The boom’s self-leveling platform and 30% gradeability further enhance safety and productivity on every job site.
Genie Z™-45/25J DC Articulating Boom Lift
The Genie Z™-45/25J DC Articulating Boom Lift is a versatile access solution designed for both indoor and outdoor applications. With a maximum working height of 51 ft 9 in (15.94 m) and a horizontal outreach of 25 ft 1 in (7.65 m), it offers exceptional reach and flexibility. Powered by a 48V DC system with a diesel generator as a 100-amp battery charger, it ensures reliable operation in demanding environments. Its 6 ft inside turning radius and 180° powered platform rotation deliver precise manoeuvrability in tight spaces. Capable of lifting up to 500 lbs (227 kg), it’s perfect for maintenance, electrical installations, façade work, and industrial inspections. The boom’s self-leveling platform and 30% gradeability further enhance safety and productivity on every job site.
Product Description
The Genie Z™-45/25J DC Articulating Boom Lift is a versatile access solution designed for both indoo...
View the full brochure
Genie Z™-45/25J DC Articulating Boom Lift Comparison with Similar Articulating Boom Lift

Genie Z™-45/25J DC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
30.3L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.8km/h
Max Travel Speed (r)
1.0km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.27m
Operating Weight
7.40kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.83m
Overall Width
1.79m
Overall Height
2.00m
Ground Clearance
240mm
Platform Height
13.94m
Horizontal Outreach
7.65m
Up And Over Clearance
7.24m
Platform Rotation
160°
Battery Voltage / Capacity
48V / 350AhV
Turning Radius (inside)
1.8m

Genie Z™-40/23 N Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
30.3L
Transmission Type
48V 3-Phase AC
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.6km/h
Max Travel Speed (r)
1.1km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
Electric brake release
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
2.26m
Operating Weight
6.908kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.53m
Overall Width
1.5m
Overall Height
1.98m
Ground Clearance
240mm
Platform Height
12.3m
Horizontal Outreach
6.91m
Up And Over Clearance
6.48m
Platform Rotation
128°
Battery Voltage / Capacity
48V
Turning Radius (inside)
0.89m

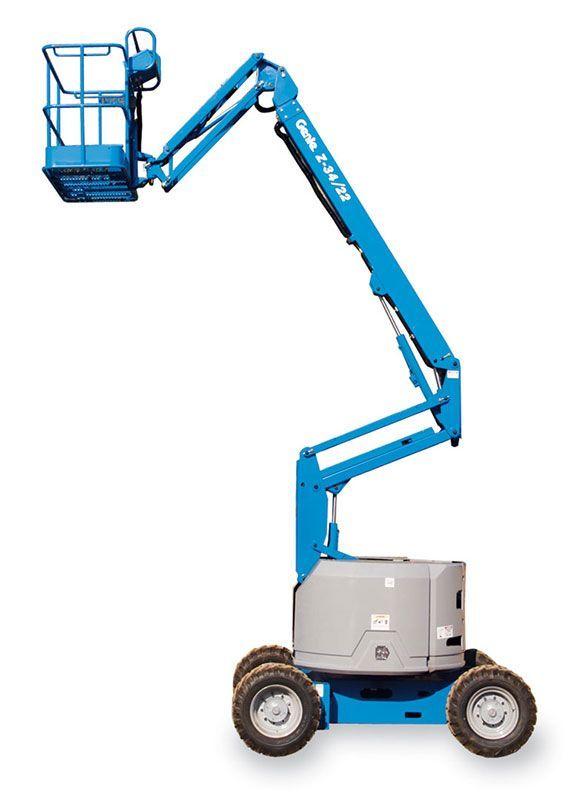

Genie Z™-34/22 IC Articulating Boom Lift
Engine Brand
Kubota
Engine Model
D1105
Engine Power
18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
34L
Hydraulic Oil Capacity
71.9L
Transmission Type
Hydrostatic Drive
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.8 km/h
Max Travel Speed (r)
1.1 km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2-wheel steering
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.11 m
Operating Weight
4.994kg
Max Platform Capacity
0.227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5.66 m
Overall Width
1.85 m
Overall Height
2.06m
Ground Clearance
170mm
Platform Height
10.54m
Horizontal Outreach
6.78m
Up And Over Clearance
4.60m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
1.80 m

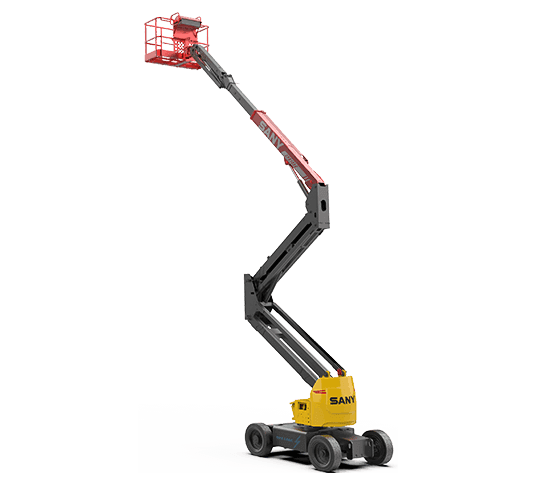

SANY SPA14AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
3.81m
Operating Weight
6.5kg
Max Platform Capacity
248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15m
Overall Width
2.0m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.0m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2V / 315AhV
Turning Radius (inside)
1.48m

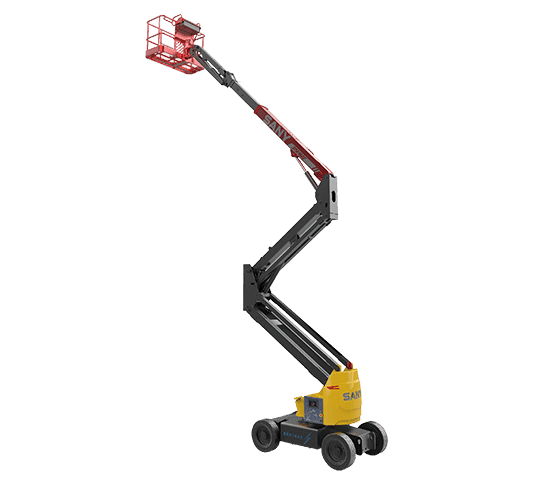

SANY SPA16AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
2WD
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8 km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.10 m
Operating Weight
7.0 kg
Max Platform Capacity
0.248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15 m
Overall Width
2.00m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.00m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2 / 315 V
Turning Radius (inside)
1.55m
