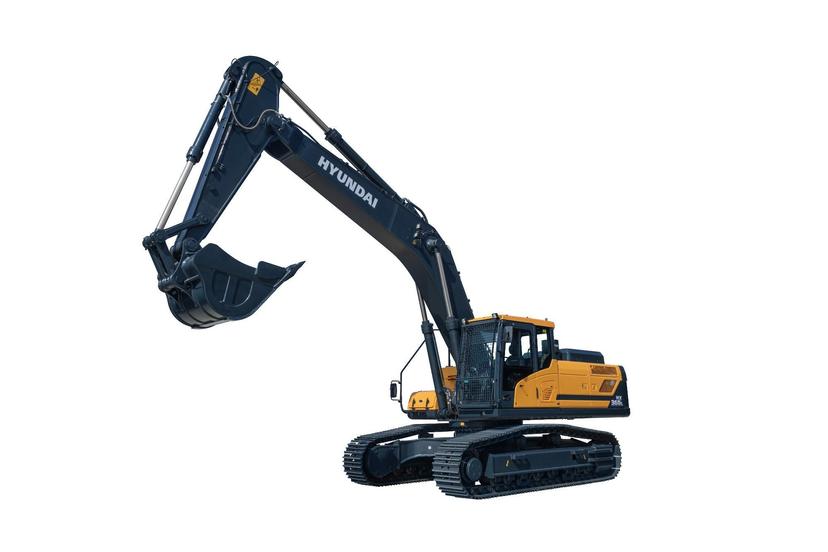

Hyundai HX360L Crawler Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX360L Crawler Excavator is designed to excel in demanding construction and mining environments. Powered by a robust 260 HP engine at 2200 rpm and weighing 35,500 kg, it provides the strength and stability needed for high-performance tasks. With a versatile bucket capacity range of 2.1 to 2.3 m³ for general-purpose tasks and 1.86 m³ for heavy-duty needs, the HX360L is perfect for efficiently handling large volumes of earth, rock, and other materials. Its advanced hydraulic systems ensure smooth operation, enabling precise excavation, loading, and bulk material handling on challenging terrains. This excavator is an ideal choice for large-scale infrastructure, mining, and quarrying projects, maximizing productivity while withstanding the rigors of tough job sites.
Hyundai HX360L Crawler Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX360L Crawler Excavator is designed to excel in demanding construction and mining environments. Powered by a robust 260 HP engine at 2200 rpm and weighing 35,500 kg, it provides the strength and stability needed for high-performance tasks. With a versatile bucket capacity range of 2.1 to 2.3 m³ for general-purpose tasks and 1.86 m³ for heavy-duty needs, the HX360L is perfect for efficiently handling large volumes of earth, rock, and other materials. Its advanced hydraulic systems ensure smooth operation, enabling precise excavation, loading, and bulk material handling on challenging terrains. This excavator is an ideal choice for large-scale infrastructure, mining, and quarrying projects, maximizing productivity while withstanding the rigors of tough job sites.
Product Description
The Hyundai HX360L Crawler Excavator is designed to excel in demanding construction and mining envir...
View the full brochure
Hyundai HX360L Crawler Excavator Comparison with Similar Crawler Excavator

Hyundai HX360L Crawler Excavator
Engine Brand
hyundai
Engine Model
HM8.3
Engine Power
260HP
Max Torque
1150Nm
Rated Speed
-
Displacement
8.2L
Fuel Tank Capacity
600L
Hydraulic Flow Rate
2 × 315L/min
Hydraulic Pressure (implement Circuit)
350kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
350kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
35.5Ton
Ground Pressure (600mm Track)
0.68kgf/cm²
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
2.1 -2.3m³
Bucket Breakout Force
-
Arm Crowd Force
19400kgf
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
