Machan X

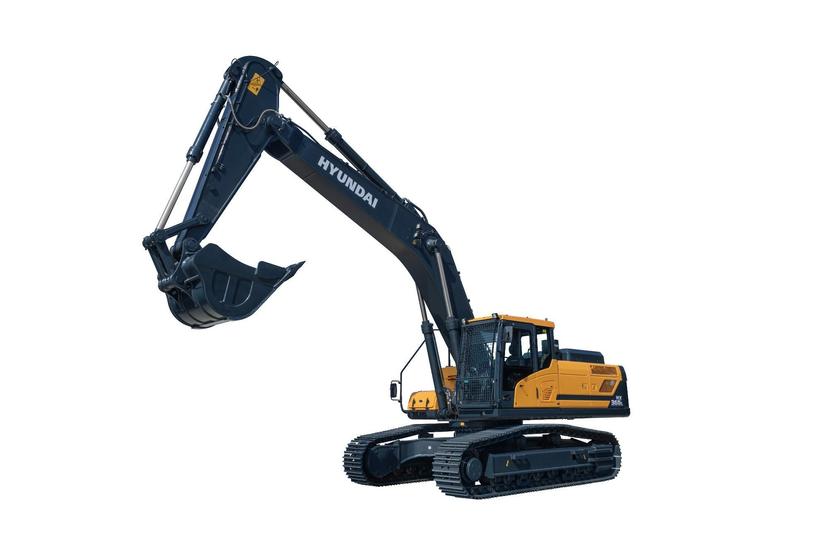

Hyundai HX380L Crawler Excavator

HD Hyundai Construction Equipment India Private Limited

Maharashtra

The Hyundai HX380L Crawler Excavator is a high-performance machine designed for heavy-duty applications across construction, mining, and infrastructure projects. Powered by a robust 260 HP engine, it provides strong and reliable performance for large-scale earthmoving tasks. With an operating weight of 37,200 kg, it combines power and stability, making it ideal for challenging terrains and heavy loads. The HX380L comes with versatile bucket options, ranging from 2.1 to 2.3 m³ for general-purpose work and specialized heavy-duty and rock buckets up to 1.8 m³, ensuring adaptability across excavation, trenching, and loading tasks. Built for durability, precision, and efficiency, the Hyundai HX380L delivers dependable results, maximizing productivity and minimizing downtime on demanding job sites.

Operating Weight
38.920Ton
Product Brochure

Product Description

The Hyundai HX380L Crawler Excavator is a high-performance machine designed for heavy-duty applicati...

View the full brochure

Hyundai HX380L Crawler Excavator Comparison with Similar Crawler Excavator

Hyundai HX380L Crawler Excavator

Hyundai HX380L Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSL9

Engine Power

359HP

Max Torque

-

Rated Speed

1650rpm

Displacement

-

Fuel Tank Capacity

550L

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

330kgf/cm²

Hydraulic Pressure (swing Circuit)

290kgf/cm²

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

38.920Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

8.22m

Max Reach At Ground

11.2m

Max Dumping Height

7.5m

Bucket Capacity

-

Bucket Breakout Force

-

Arm Crowd Force

16900kgf

Overall Length

11.4m

Overall Width

3.64m

Overall Height

3.7m

Ground Clearance

550mm

Currently Viewing
Zoomlion ZE375G Crawler Excavator

Zoomlion ZE375G Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

CUMMINS

Engine Model

QSL

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

8.9 L

Fuel Tank Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

37.5Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

7.075m

Max Reach At Ground

-

Max Dumping Height

7.075m

Bucket Capacity

1.9

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

11.23m

Overall Width

3.19m

Overall Height

3.78m

Ground Clearance

-

Zoomlion ZE960G Crawler Excavator

Zoomlion ZE960G Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

SCANIA

Engine Model

DC16

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

16L

Fuel Tank Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

95Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

0.725m

Max Reach At Ground

-

Max Dumping Height

7.815m

Bucket Capacity

7 m³

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

13.695m

Overall Width

4.44m

Overall Height

5.445m

Ground Clearance

-

XCMG XE80U Crawler Excavator

XCMG XE80U Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

Kubota

Engine Model

V3307CRTE5

Engine Power

-

Max Torque

9.31 Nm

Rated Speed

1500rpm

Displacement

3.3L

Fuel Tank Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

9.5Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

-

Max Reach At Ground

-

Max Dumping Height

-

Bucket Capacity

0.35

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Tata Hitachi EX 2600-7 Crawler Excavator

Tata Hitachi EX 2600-7 Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSKTA50-CE (FCO, T4F/EU Stage V)

Engine Power

1500HP

Max Torque

-

Rated Speed

1800rpm

Displacement

50L

Fuel Tank Capacity

5300L

Hydraulic Flow Rate

4 x 375 L/min

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

257Ton

Ground Pressure (600mm Track)

1.91kgf/cm²

Max Digging Depth

8.2m

Max Reach At Ground

16m

Max Dumping Height

10.1m

Bucket Capacity

19.5

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

10.3m

Overall Width

8m

Overall Height

7.2m

Ground Clearance

770mm

Compare Crawler Excavator

Hyundai HX380L Crawler Excavator

Hyundai HX380L Crawler Excavator

Zoomlion ZE375G Crawler Excavator

Zoomlion ZE375G Crawler Excavator

Add any equipment
to compare

Product

Get instant quotation on whatsapp

Connect with "HD Hyundai Construction Equipment India Private Limited"

Connect with Seller Instantly

About Company

Company Name

HD Hyundai Construction Equipment India Private Limited

GST Number

27AABCH8756Q1ZQ

Since

January 2007

Address

Pune, Maharashtra

HD Hyundai Construction Equipment India Private Limited, a leading provider of construction and earthmoving equipment, began operations in India in 2007 and quickly established itself as a key player in the industry. Operating out of its manufacturing facility in Chakan, Pune, HD Hyundai CE India offers a broad lineup of 36 models across six product categories, including crawler excavators, mini-excavators, and material handling equipment. As India’s top exporter of excavators, the company serves over 45 countries across SAARC, the Middle East, and beyond. Supported by a network of 225+ branches and warehouses, HD Hyundai CE India is committed to top-notch service and genuine parts availability.
