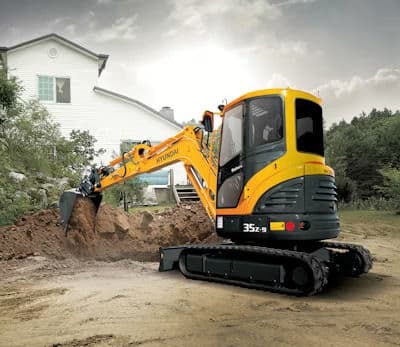

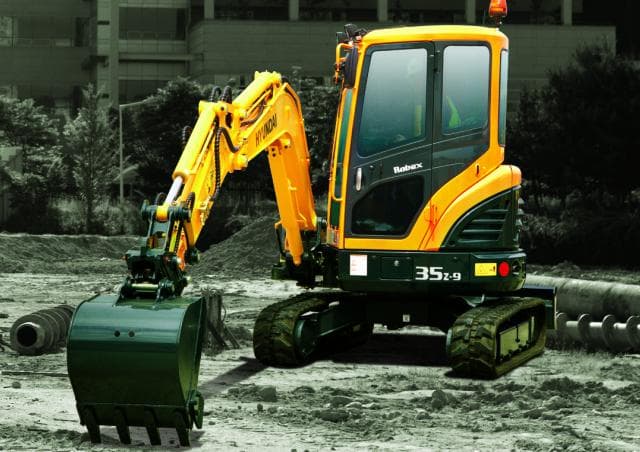

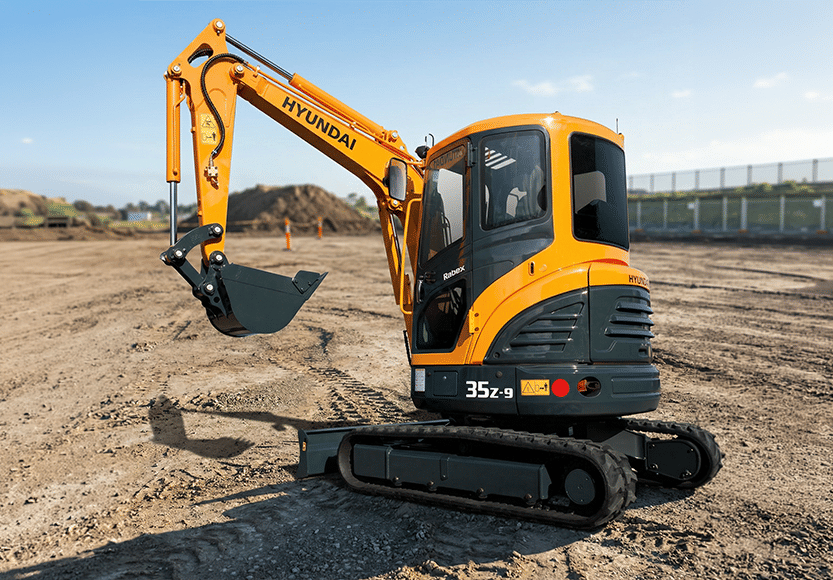

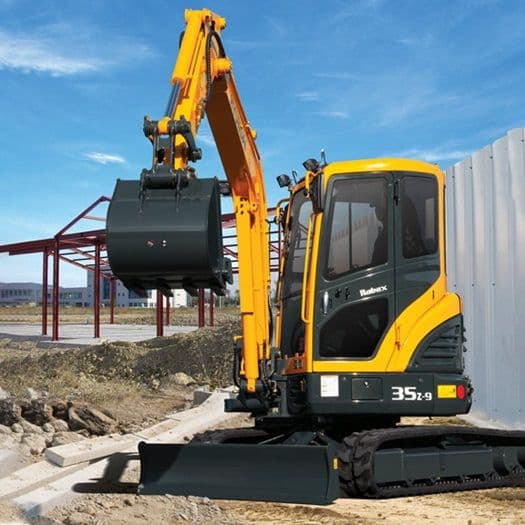

Hyundai R35Z-9 Mini Excavator

HD Hyundai Construction Equipment India Private Limited

Maharashtra

The Hyundai R35Z-9 Mini Excavator is a versatile and efficient machine designed for a wide range of construction and landscaping tasks. Powered by the reliable Yanmar 3TNV88 engine, it delivers 27.3 horsepower at 2200 RPM, providing excellent performance in tight spaces. With an operating weight of 3750kg and a compact design featuring a tail swing radius of just 870mm, it is perfect for urban construction projects where space is limited. The excavator offers impressive digging capabilities, with a 3150mm max digging depth and 5240mm max digging reach on the ground. Its 3200kgf bucket digging force and 1990kgf arm crowd force make it ideal for tough soil conditions. Additionally, the 4.5km/h high-speed travel ensures efficient mobility on the job site, making the Hyundai R35Z-9 a reliable and powerful solution for any construction need.

Operating Weight
3.75Ton

Product Description

The Hyundai R35Z-9 Mini Excavator is a versatile and efficient machine designed for a wide range of ...

View the full brochure

Hyundai R35Z-9 Mini Excavator Comparison with Similar Mini Excavators

Hyundai R35Z-9 Mini Excavator

Hyundai R35Z-9 Mini Excavator

Get Latest Price
Rating
4.4

Arm Crowd Force

1990kgf

Max Digging Depth

3.15m

Max Reach At Ground

5.24m

Max Digging Height

-

Max Dumping Height

-

Bucket Capacity

-

Bucket Breakout Force

-

Overall Length

4.79m

Overall Height

-

Ground Clearance

290mm

Engine Brand

Yanmar

Engine Model

3TNV88

Engine Power

-

Max Torque

106.8Nm

Rated Speed

-

Displacement

1.642L

Fuel Tank Capacity

42L

Hydraulic Flow Rate

111.7L/min

Hydraulic Pressure (implement Circuit)

230kgf/cm²

Hydraulic Pressure (swing Circuit)

200kgf/cm²

Hydraulic Pressure (travel Circuit)

230kgf/cm²

Hydraulic Pressure (pilot Circuit)

30kgf/cm²

Operating Weight

3.75Ton

Currently Viewing
Empower Mini Excavator

Empower Mini Excavator

Get Latest Price
Rating
4.4

Arm Crowd Force

-

Max Digging Depth

-

Max Reach At Ground

-

Max Digging Height

-

Max Dumping Height

-

Bucket Capacity

-

Bucket Breakout Force

-

Overall Length

-

Overall Height

-

Ground Clearance

-

Engine Brand

-

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

-

Tata Hitachi ZAXIS 33U Mini Excavator

Tata Hitachi ZAXIS 33U Mini Excavator

Get Latest Price
Rating
4.4

Arm Crowd Force

1499kgf

Max Digging Depth

3.13m

Max Reach At Ground

5.04m

Max Digging Height

-

Max Dumping Height

3.31m

Bucket Capacity

0.09

Bucket Breakout Force

-

Overall Length

4.45m

Overall Height

2.47m

Ground Clearance

270mm

Engine Brand

Yanmar

Engine Model

EDM-3TNV88

Engine Power

28.41HP

Max Torque

105.5Nm

Rated Speed

2200rpm

Displacement

1.642L

Fuel Tank Capacity

42L

Hydraulic Flow Rate

2×38.4L/min

Hydraulic Pressure (implement Circuit)

250kgf/cm²

Hydraulic Pressure (swing Circuit)

170kgf/cm²

Hydraulic Pressure (travel Circuit)

250kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

3.65Ton

Kobelco SK30SR Mini Excavator

Kobelco SK30SR Mini Excavator

Get Latest Price
Rating
4.4

Arm Crowd Force

1,947.9 / 1,682.0 kgf

Max Digging Depth

-

Max Reach At Ground

-

Max Digging Height

-

Max Dumping Height

-

Bucket Capacity

0.12

Bucket Breakout Force

2,823.4 kgf

Overall Length

-

Overall Height

-

Ground Clearance

-

Engine Brand

YANMAR

Engine Model

3TNV82A-8

Engine Power

24.27 HP

Max Torque

79.4Nm

Rated Speed

2400rpm

Displacement

-

Fuel Tank Capacity

42L

Hydraulic Flow Rate

96.0L/min

Hydraulic Pressure (implement Circuit)

234.6 kgf/cm²

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

3.57 / 3.41 Ton

CAT 303.5 CR Mini Excavator

CAT 303.5 CR Mini Excavator

Get Latest Price
Rating
4.4

Arm Crowd Force

-

Max Digging Depth

3.1m

Max Reach At Ground

5.38m

Max Digging Height

5.02m

Max Dumping Height

-

Bucket Capacity

-

Bucket Breakout Force

-

Overall Length

4.85m

Overall Height

2.48m

Ground Clearance

310mm

Engine Brand

Caterpillar

Engine Model

C1.7

Engine Power

23.6HP

Max Torque

-

Rated Speed

-

Displacement

1.7L

Fuel Tank Capacity

45L

Hydraulic Flow Rate

98.4L/min

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

4.19Ton
