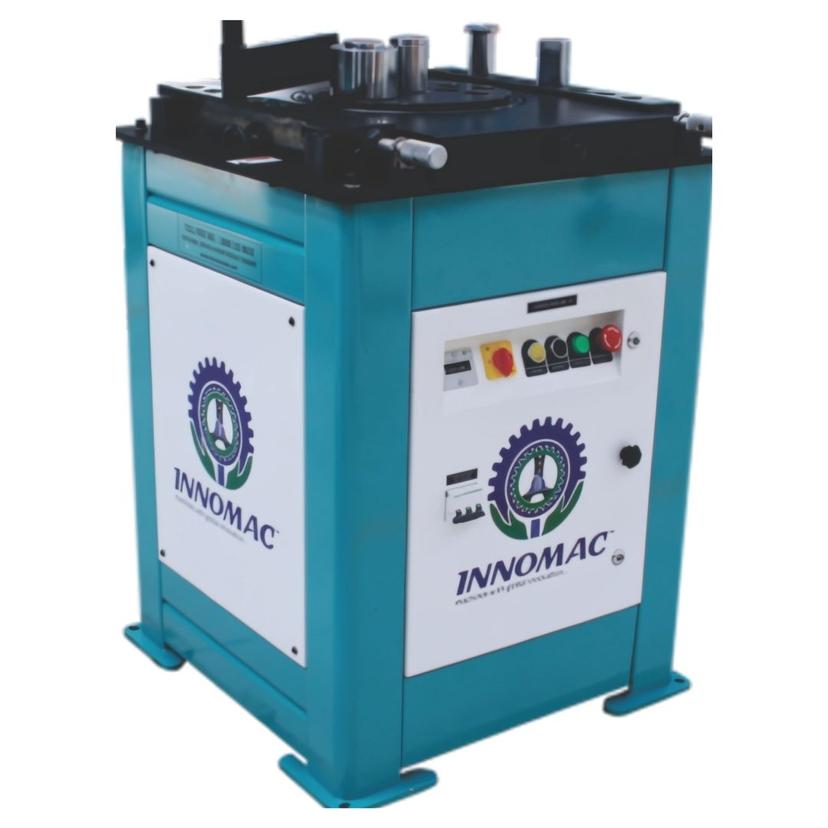

Innomac IBM 52 Rebar Bending Machine
INNOMAC
Karnataka
The Innomac IBM 52 Rebar Bending Machine is a powerful and reliable solution engineered for heavy-duty bending of TMT bars up to 36mm diameter. Equipped with a robust 4.0kW (5.5HP) motor operating at 1440 RPM, it ensures efficient and consistent bending with high torque output. The machine features a large 426 mm bend wheel and supports a maximum bend radius of 5D for ᶲ32 and 4D for ᶲ36, making it ideal for high-capacity jobs. With a solid build weighing 410 kg and dimensions of 868x950x963 mm, it is suitable for demanding applications at bridges, metros, high-rise buildings, and precast plants. Supplied with multiple bush sizes (ᶲ60, ᶲ70, ᶲ100), the IBM 52 delivers flexibility, durability, and precision in rebar bending tasks.
Innomac IBM 52 Rebar Bending Machine
INNOMAC
Karnataka
The Innomac IBM 52 Rebar Bending Machine is a powerful and reliable solution engineered for heavy-duty bending of TMT bars up to 36mm diameter. Equipped with a robust 4.0kW (5.5HP) motor operating at 1440 RPM, it ensures efficient and consistent bending with high torque output. The machine features a large 426 mm bend wheel and supports a maximum bend radius of 5D for ᶲ32 and 4D for ᶲ36, making it ideal for high-capacity jobs. With a solid build weighing 410 kg and dimensions of 868x950x963 mm, it is suitable for demanding applications at bridges, metros, high-rise buildings, and precast plants. Supplied with multiple bush sizes (ᶲ60, ᶲ70, ᶲ100), the IBM 52 delivers flexibility, durability, and precision in rebar bending tasks.
- •Preferred at metro, railway, and bridge construction sites for heavy-duty rebar shaping.
- •Effortlessly bends TMT bars up to 36mm for industrial-grade construction.
- •Ideal for large-scale infrastructure projects like flyovers, dams, and high-rises.
- •Essential for contractors needing accurate, high-capacity bending at demanding job sites.
- •Used in rebar processing plants for high-volume bar bending with precision.
Product Description
The Innomac IBM 52 Rebar Bending Machine is a powerful and reliable solution engineered for heavy-du...
View the full brochure
Innomac IBM 52 Rebar Bending Machine Comparison with Similar Bar Bending Machine
Innomac IBM 52 Rebar Bending Machine
Max Rebar Diameter
-
Bending Speed
-
Bending Plate Diameter
-
Table Thickness
-
Drive Mode / Operation
-
Production Capacity
-
Motor Power
-
Motor Speed (rpm)
-
Voltage
-
Machine Weight (kg)
-
Machine Weight
-
Overall Length
-
Overall Width
-
Overall Height
-
JAYMAC B 40 Rebar Bending Machine
Max Rebar Diameter
32mm
Bending Speed
-
Bending Plate Diameter
-
Table Thickness
-
Drive Mode / Operation
-
Production Capacity
-
Motor Power
-
Motor Speed (rpm)
-
Voltage
-
Machine Weight (kg)
500kg
Machine Weight
0.5Tons
Overall Length
0.860m
Overall Width
0.910m
Overall Height
0.880m
Avirat GW-42J/40 Rebar Bending Machine
Max Rebar Diameter
32mm
Bending Speed
-
Bending Plate Diameter
-
Table Thickness
-
Drive Mode / Operation
Pulley Belt Driven
Production Capacity
-
Motor Power
3kW (HP)
Motor Speed (rpm)
1440rpm
Voltage
415V
Machine Weight (kg)
315kg
Machine Weight
0.315Tons
Overall Length
0.8m
Overall Width
0.72m
Overall Height
0.85m
Avirat MC AI - 45 Rebar Bending Machine
Max Rebar Diameter
36mm
Bending Speed
-
Bending Plate Diameter
-
Table Thickness
-
Drive Mode / Operation
Planetary Gear Box
Production Capacity
-
Motor Power
5kW (HP)
Motor Speed (rpm)
1440rpm
Voltage
24V
Machine Weight (kg)
330kg
Machine Weight
0.330Tons
Overall Length
-
Overall Width
-
Overall Height
-
Winget 40mm Rebar Bending Machine
Max Rebar Diameter
-
Bending Speed
-
Bending Plate Diameter
-
Table Thickness
-
Drive Mode / Operation
-
Production Capacity
-
Motor Power
-
Motor Speed (rpm)
-
Voltage
-
Machine Weight (kg)
-
Machine Weight
-
Overall Length
-
Overall Width
-
Overall Height
-
