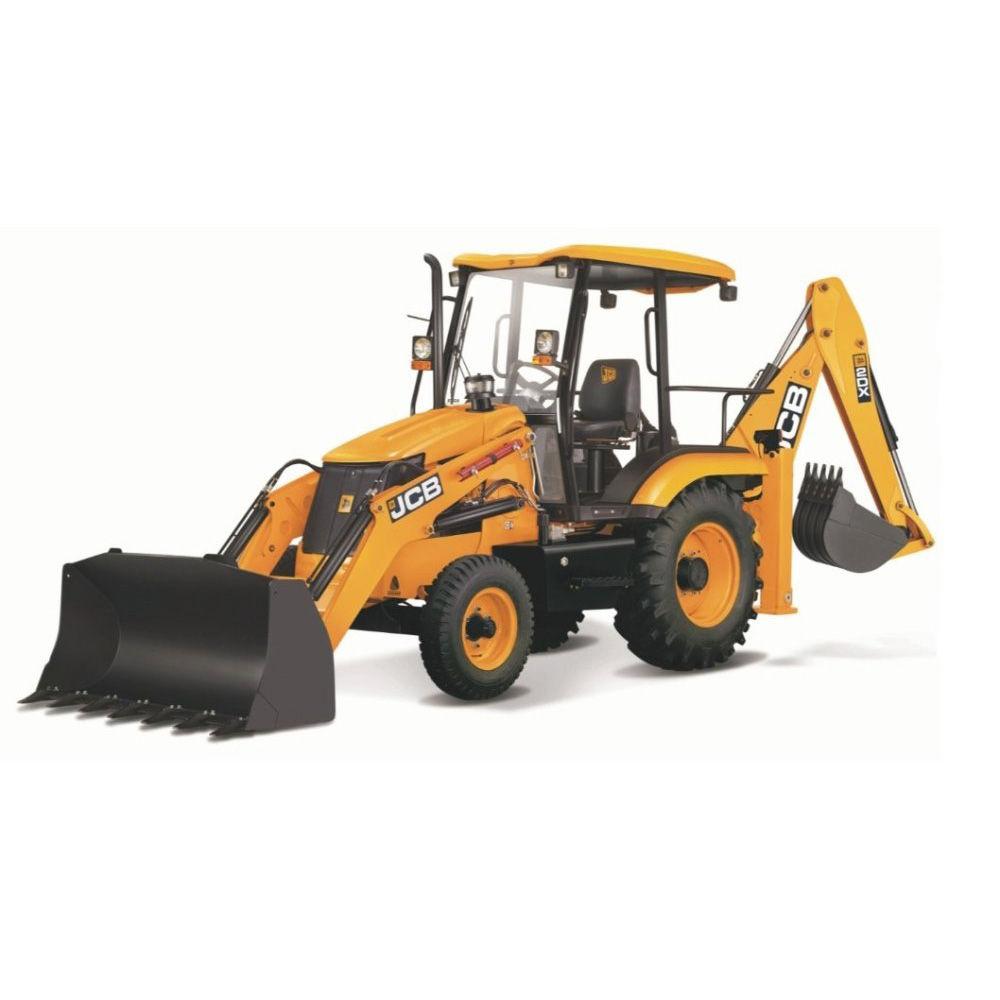

JCB 2DX Backhoe Loader
JCB India Limited
Chhattisgarh
The JCB 2DX Backhoe Loader is engineered for exceptional efficiency and versatility in compact spaces. With a maximum dig depth of 3.02 meters and a loader shovel capacity of 0.6 cubic meters, it excels in both excavation and material handling tasks. The 36 kW engine provides powerful performance while maintaining excellent fuel efficiency, making it a cost-effective choice for various applications. Its robust design features, including a durable loader arm and high break-out force, ensure reliable operation in tough conditions. The JCB 2DX also supports a range of attachments, such as high dump buckets and dozer blades, enhancing its adaptability. With long service intervals of 500 hours, this backhoe loader offers low maintenance costs and high productivity, delivering substantial value and performance.
JCB 2DX Backhoe Loader
JCB India Limited
Chhattisgarh
The JCB 2DX Backhoe Loader is engineered for exceptional efficiency and versatility in compact spaces. With a maximum dig depth of 3.02 meters and a loader shovel capacity of 0.6 cubic meters, it excels in both excavation and material handling tasks. The 36 kW engine provides powerful performance while maintaining excellent fuel efficiency, making it a cost-effective choice for various applications. Its robust design features, including a durable loader arm and high break-out force, ensure reliable operation in tough conditions. The JCB 2DX also supports a range of attachments, such as high dump buckets and dozer blades, enhancing its adaptability. With long service intervals of 500 hours, this backhoe loader offers low maintenance costs and high productivity, delivering substantial value and performance.
Product Description
The JCB 2DX Backhoe Loader is engineered for exceptional efficiency and versatility in compact space...
View the full brochure
JCB 2DX Backhoe Loader Comparison with Similar Backhoe Loader
JCB 2DX Backhoe Loader
Max Load Over Height
2.74m
Max Hinge Pin Height
-m
Max Reach At Full Height
1.12m
Loader Bucket Capacity
0.18m³
Loader Arm Breakout Force
1834kgf
Shovel Breakout Force
3370kgf
Max Dump Height
2.3m
Overall Length
5.5m
Overall Width
-m
Overall Height
2.65m
Ground Clearance
-
Power Steering
-
Battery Voltage
-V
Front Axle Oscillation
16°°
Standard Tyres (front/rear)
2200
Engine Brand
JCB
Engine Model
KOEL
Engine Power
49 HP
Max Torque
203Nm
Rated Speed
1400 rpm
Displacement
3.2 L
Fuel Tank Capacity
60.0L
Transmission Type
SS 700 svncbroshuttle
Number Of Gears (forward/reverse)
4
Torque Converter Stall Ratio
3.01:1
Max Travel Speed
28.8 km/h
Service Brake Type
Hydraulically actuated
Parking Brake Type
Hand-operated disc brakes on the rear axle input disc
Steering Type
Full power, front wheel hydrostatic power steering
Steering Angle
16°°
Oscillation Angle
16°°
Turning Radius (braked)
10.3 m
Turning Radius (unbraked)
10.9 m
Operating Weight
5.22Ton
Max Lifting Capacity
-kg
Hydraulic Flow Rate
70.4L/min
Hydraulic Pressure
180Bar
Max Digging Depth
3.02 m
Max Reach At Ground
4 to 7 m
Max Loading Height
2. 74m
Bucket Capacity
0.18m³
Bucket Breakout Force
3120 kgf
Dipper Breakout Force
1750 kgf
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Max Load Over Height
-
Max Hinge Pin Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Max Dump Height
2.794m
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CASE 770EX Backhoe Loader
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Max Reach At Full Height
2.15m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Max Dump Height
2.73m
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422*W
Engine Power
74HP
Max Torque
340Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Operating Weight
7.78Ton
Max Lifting Capacity
3515kg
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Max Reach At Full Height
1.42 / 1.28m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Max Dump Height
2.93 / 2.96m
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Engine Brand
KIRLOSKAR
Engine Model
4R 1040 T EU STAGE II (Diesel)
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.15Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m
ESCORTS DIGMAX II Backhoe Loader
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Max Reach At Full Height
1.22m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Max Dump Height
3.00m
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Engine Brand
Kirloskar
Engine Model
4R1190NA
Engine Power
75 HP
Max Torque
300 Nm
Rated Speed
-
Displacement
-
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.19Ton
Max Lifting Capacity
1980kg
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Compare Backhoe Loader
JCB 2DX Backhoe Loader
CAT 424-2 Backhoe Loader
Add any equipment
to compare
Get instant quotation on whatsapp
Connect with "JCB India Limited"
Connect with Seller Instantly
Related Products
More Products from JCB India Limited
JCB NXT 215LC Fuel Master Crawler Excavator
Get Latest Price
Chhattisgarh
About Company
Company Name
JCB India Limited
GST Number
19AAACE0078P1ZA
Since
January 1979
Address
Ballabgarh, Haryana
JCB India Limited is a prominent manufacturer of earthmoving and construction equipment, established in India as a joint venture in 1979. Now a fully owned subsidiary of J.C Bamford Excavators in the UK, JCB operates five advanced factories in India, producing a variety of equipment for both domestic and international markets. Known for introducing Backhoe Loaders to India, JCB now offers 48 models across eight product categories. Its state-of-the-art facilities, including the largest Backhoe Loader factory in Delhi-NCR, and factories in Pune and Jaipur, enable JCB to deliver high-quality equipment globally, supported by a robust dealer network of 650 outlets across India.
