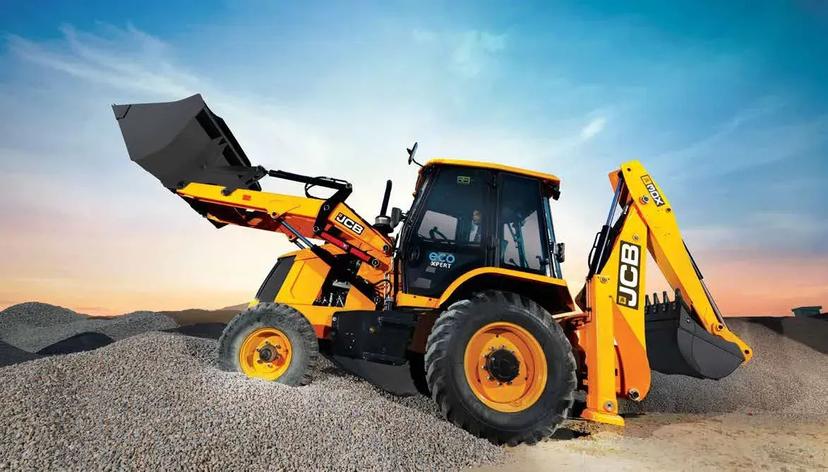

JCB 3DX Plus Backhoe Loader
JCB India Limited
Delhi
The JCB 3DX Plus Backhoe Loader combines advanced technology with robust performance for diverse applications. Featuring a powerful 55 kW engine and a maximum dig depth of 4.77 meters, it excels in heavy-duty excavation and material handling. Its CRDI technology and variable displacement hydraulic pump enhance fuel efficiency, while the 4WD model offers 15% higher output and all-terrain capability for challenging tasks. The 4WD High Dump Bucket version provides a 45% higher dump height, improving loading efficiency and productivity. Designed for operator comfort, the 3DX Plus includes a spacious cabin with a new roof, reduced noise, LED rear work lamps, and an elegant digital display. Supported by extensive service networks and advanced JCB Live Link for real-time updates, the 3DX Plus ensures reliable and efficient operation.
JCB 3DX Plus Backhoe Loader
JCB India Limited
Delhi
The JCB 3DX Plus Backhoe Loader combines advanced technology with robust performance for diverse applications. Featuring a powerful 55 kW engine and a maximum dig depth of 4.77 meters, it excels in heavy-duty excavation and material handling. Its CRDI technology and variable displacement hydraulic pump enhance fuel efficiency, while the 4WD model offers 15% higher output and all-terrain capability for challenging tasks. The 4WD High Dump Bucket version provides a 45% higher dump height, improving loading efficiency and productivity. Designed for operator comfort, the 3DX Plus includes a spacious cabin with a new roof, reduced noise, LED rear work lamps, and an elegant digital display. Supported by extensive service networks and advanced JCB Live Link for real-time updates, the 3DX Plus ensures reliable and efficient operation.
Product Description
The JCB 3DX Plus Backhoe Loader combines advanced technology with robust performance for diverse app...
JCB 3DX Plus Backhoe Loader Comparison with Similar Backhoe Loader
JCB 3DX Plus Backhoe Loader
Max Torque
440Nm
Rated Speed
-
Displacement
3.0L
Fuel Tank Capacity
128 L
Engine Brand
JCB
Engine Model
444
Engine Power
74HP
Transmission Type
2WD/4WD
Number Of Gears (forward/reverse)
4
Torque Converter Stall Ratio
3.01:1
Max Travel Speed
36km/h
Bucket Capacity
0.26m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Digging Depth
4.77m
Max Reach At Ground
6.72m
Max Reach At Full Height
1.15m
Max Loading Height
4.18m
Max Dump Height
4.0 m
Max Load Over Height
3.32 m
Max Hinge Pin Height
-
Loader Bucket Capacity
0.26m³
Loader Arm Breakout Force
5635kgf
Shovel Breakout Force
5272kgf
Power Steering
Power track steering rod system provides equal turn steering & quick response with less operating force.
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
16/12
Service Brake Type
Q hydraulically actuated,dual line
Parking Brake Type
Hand operated, disc brakes on rear axle input disc
Steering Type
Power track steering rod system provides equal turn steering & quick response with less operating force
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7 510 kgTon
Max Lifting Capacity
-
Hydraulic Flow Rate
114L/min
Hydraulic Pressure
270 Bar
Overall Length
6.0m
Overall Width
-
Overall Height
3.61m
Ground Clearance
0.51mm
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

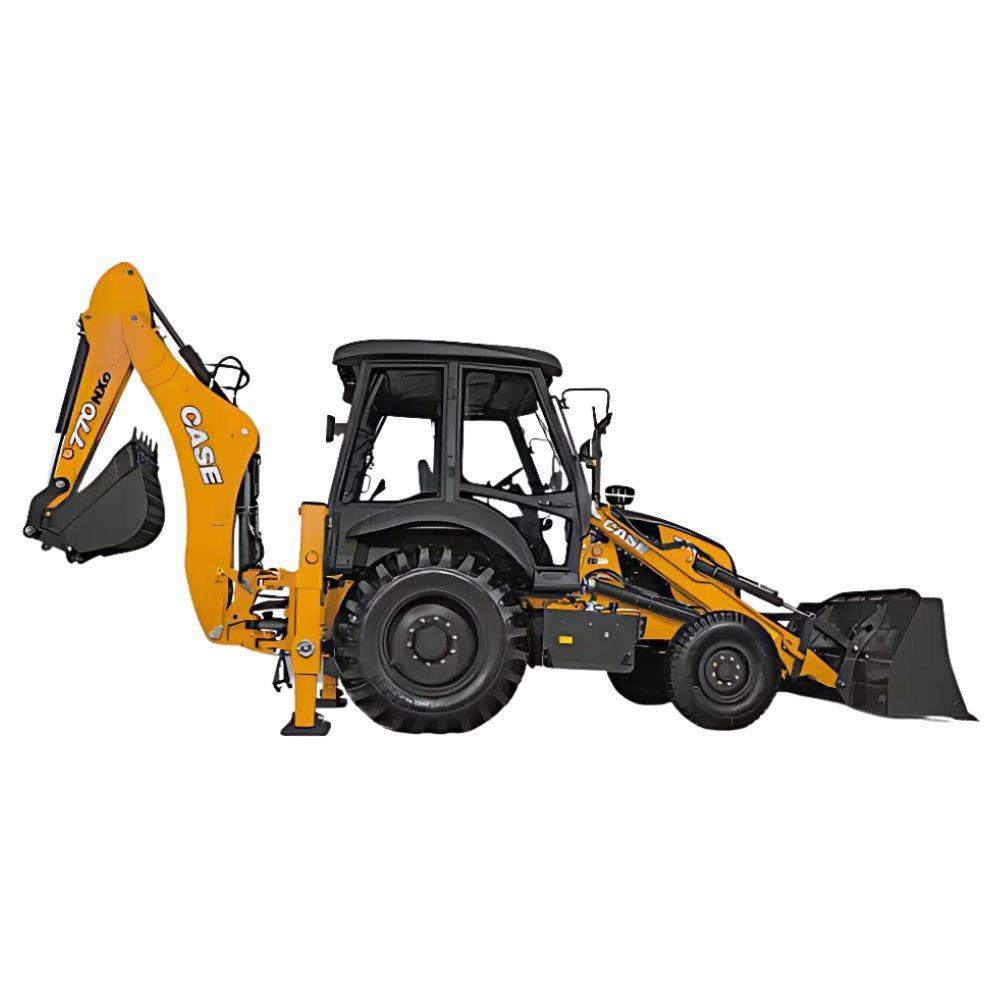

CASE 770EX Backhoe Loader
Max Torque
340Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
129L
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422*W
Engine Power
74HP
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Operating Weight
7.78Ton
Max Lifting Capacity
3515kg
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
115 / 150L
Engine Brand
KIRLOSKAR
Engine Model
4R 1040 T EU STAGE II (Diesel)
Engine Power
96HP
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.15Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m

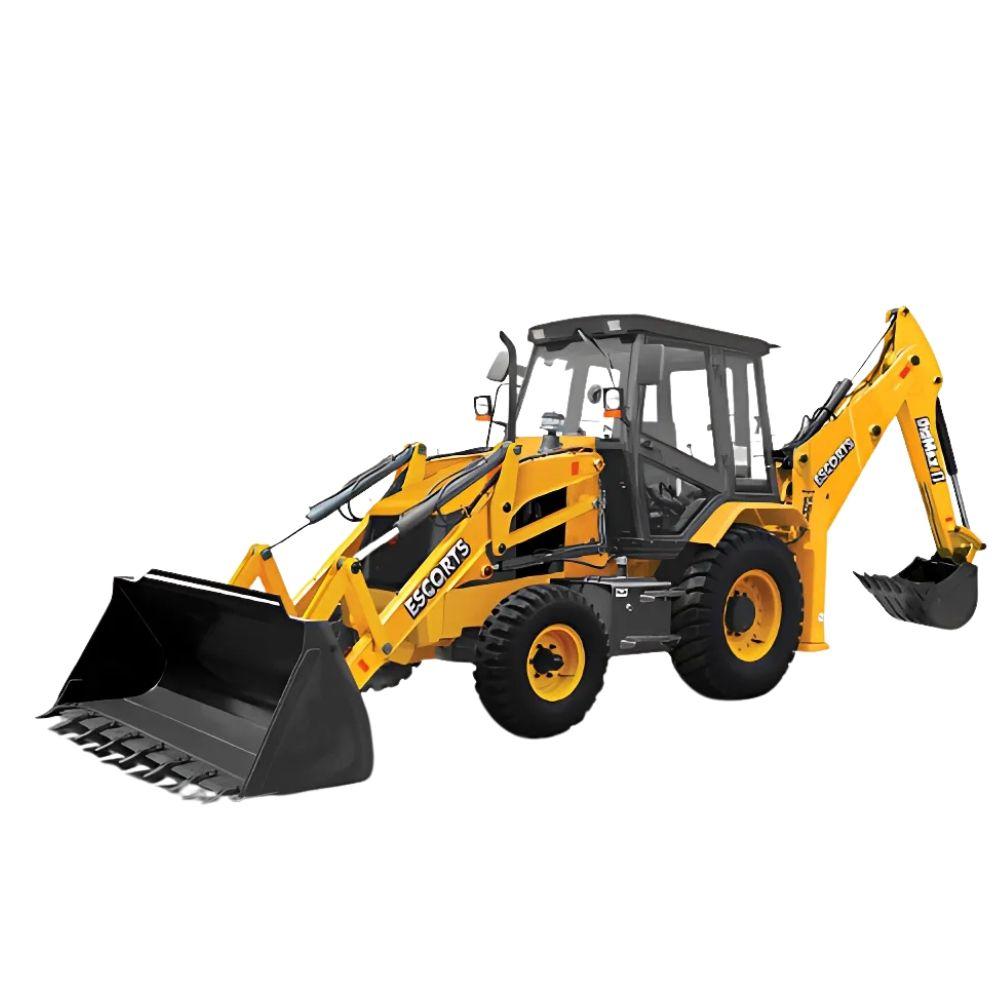

ESCORTS DIGMAX II Backhoe Loader
Max Torque
300 Nm
Rated Speed
-
Displacement
-
Fuel Tank Capacity
134L
Engine Brand
Kirloskar
Engine Model
4R1190NA
Engine Power
75 HP
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Reach At Full Height
1.22m
Max Loading Height
-
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.19Ton
Max Lifting Capacity
1980kg
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
