JCB 50Z Mini Excavator
JCB India Limited
Delhi

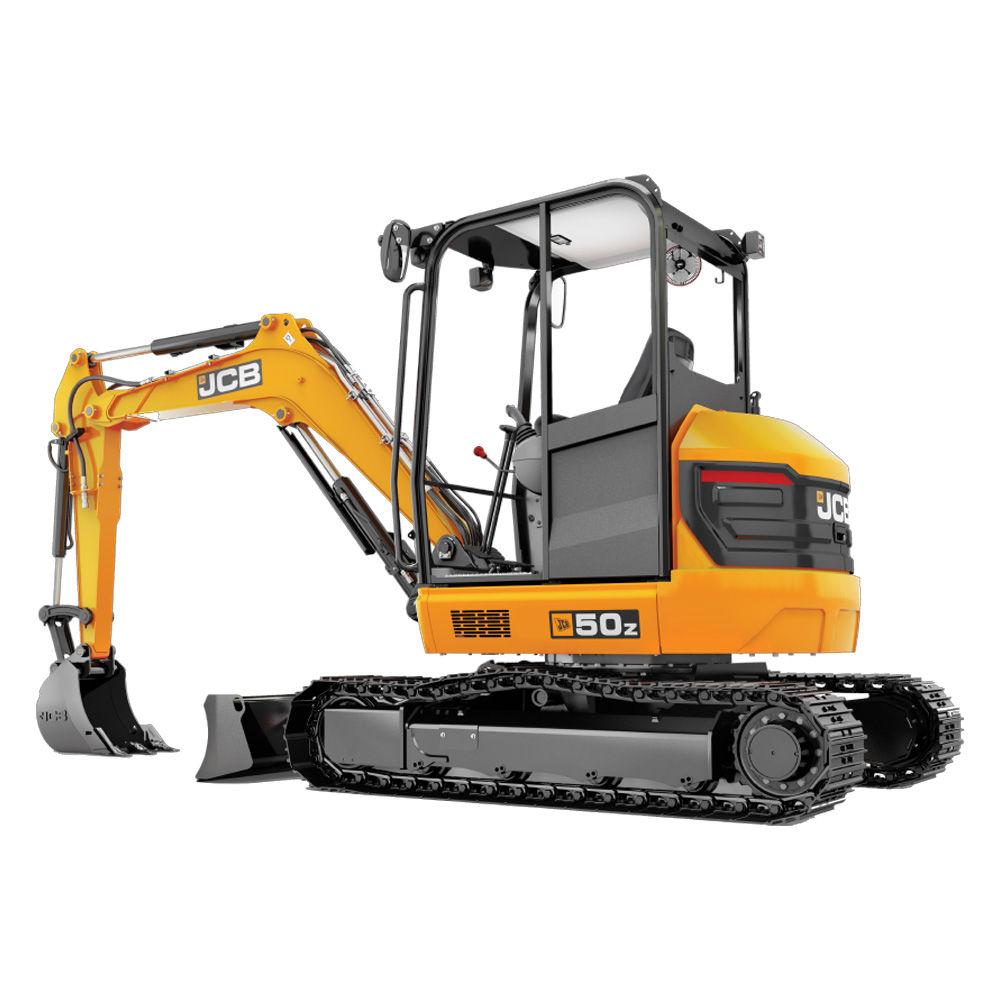

Introducing the JCB 50Z Mini Excavator, a compact and versatile machine designed for the demanding urban landscapes of India. With its zero tail swing, high structural stability, and advanced LiveLink technology, the 50Z excels in various applications such as pipe laying, trenching, and utility work in industrial settings. Equipped with a powerful 35.7 kW engine, it offers high productivity with an operating weight of 4,946 kg and a digging depth of 3.53 m. The JCB 50Z ensures reliability with its robust construction and operator comfort through its adjustable suspension seat and smooth controls. Additionally, the excavator is designed for low and easy maintenance, making it a reliable partner for multiple industries.
JCB 50Z Mini Excavator
JCB India Limited
Delhi
Introducing the JCB 50Z Mini Excavator, a compact and versatile machine designed for the demanding urban landscapes of India. With its zero tail swing, high structural stability, and advanced LiveLink technology, the 50Z excels in various applications such as pipe laying, trenching, and utility work in industrial settings. Equipped with a powerful 35.7 kW engine, it offers high productivity with an operating weight of 4,946 kg and a digging depth of 3.53 m. The JCB 50Z ensures reliability with its robust construction and operator comfort through its adjustable suspension seat and smooth controls. Additionally, the excavator is designed for low and easy maintenance, making it a reliable partner for multiple industries.
Product Description
Introducing the JCB 50Z Mini Excavator, a compact and versatile machine designed for the demanding u...
View the full brochure
JCB 50Z Mini Excavator Comparison with Similar Mini Excavators
JCB 50Z Mini Excavator
Engine Brand
JCB
Engine Model
Stage 3A 404D-22
Engine Power
44.38HP
Max Torque
143Nm
Rated Speed
-
Displacement
2.179L
Fuel Tank Capacity
76L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.946Ton
Max Digging Depth
3.33m
Max Reach At Ground
5.72m
Max Digging Height
5.39m
Max Dumping Height
4.00m
Bucket Capacity
-
Bucket Breakout Force
3874.92kgf
Arm Crowd Force
2243.38kgf
Overall Length
5.35m
Overall Height
2.55m
Ground Clearance
300mm
JCB 37C Mini Excavator
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm
Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm
Sany SY35U Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
28HP
Max Torque
106Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Overall Length
4.910m
Overall Height
2.515m
Ground Clearance
295mm
Sany SY35 pro Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
24.41HP
Max Torque
71.1Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Overall Length
4.15m
Overall Height
1.55m
Ground Clearance
285mm
Compare Mini Excavators
JCB 50Z Mini Excavator
JCB 37C Mini Excavator
Add any equipment
to compare
Get instant quotation on whatsapp
Connect with "JCB India Limited"
Connect with Seller Instantly
Related Products
More Products from JCB India Limited
About Company
Company Name
JCB India Limited
GST Number
19AAACE0078P1ZA
Since
January 1979
Address
Ballabgarh, Haryana
JCB India Limited is a prominent manufacturer of earthmoving and construction equipment, established in India as a joint venture in 1979. Now a fully owned subsidiary of J.C Bamford Excavators in the UK, JCB operates five advanced factories in India, producing a variety of equipment for both domestic and international markets. Known for introducing Backhoe Loaders to India, JCB now offers 48 models across eight product categories. Its state-of-the-art facilities, including the largest Backhoe Loader factory in Delhi-NCR, and factories in Pune and Jaipur, enable JCB to deliver high-quality equipment globally, supported by a robust dealer network of 650 outlets across India.
