JCB 540-70 Telehandler
Satya Earth Movers
Delhi
The JCB 540-70 Telehandler is a powerful and versatile machine designed for heavy-duty lifting across various industries. With a maximum lift capacity of 4,000 kg and a lift height of 7 meters, it efficiently handles construction materials, industrial equipment, and agricultural loads. Its 6.5-meter placing height and 3.8-meter forward reach allow for precise material positioning in challenging work environments. Powered by a 55 kW engine, the telehandler ensures reliable performance while maintaining fuel efficiency. Its rugged design and 8,498 kg operating weight provide stability and durability for demanding tasks. Whether in construction, warehousing, roadwork, or agriculture, the JCB 540-70 enhances productivity, reduces manual labor, and ensures safe material handling. A perfect choice for businesses looking for efficiency and reliability in material lifting and placement.
JCB 540-70 Telehandler
Satya Earth Movers
Delhi
The JCB 540-70 Telehandler is a powerful and versatile machine designed for heavy-duty lifting across various industries. With a maximum lift capacity of 4,000 kg and a lift height of 7 meters, it efficiently handles construction materials, industrial equipment, and agricultural loads. Its 6.5-meter placing height and 3.8-meter forward reach allow for precise material positioning in challenging work environments. Powered by a 55 kW engine, the telehandler ensures reliable performance while maintaining fuel efficiency. Its rugged design and 8,498 kg operating weight provide stability and durability for demanding tasks. Whether in construction, warehousing, roadwork, or agriculture, the JCB 540-70 enhances productivity, reduces manual labor, and ensures safe material handling. A perfect choice for businesses looking for efficiency and reliability in material lifting and placement.
Product Description
The JCB 540-70 Telehandler is a powerful and versatile machine designed for heavy-duty lifting acros...
View the full brochure
JCB 540-70 Telehandler Comparison with Similar Telehandler

JCB 540-70 Telehandler
Engine Brand
JCB
Engine Model
430 CRDi
Engine Power
74HP
Max Torque
440Nm
Rated Speed
2200rpm
Displacement
3.0L
Fuel Tank Capacity
110L
Hydraulic Oil Capacity
120L
Engine Cooling System
Water cooled
Transmission Type
Synchro Shuttle
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
3.01:1
Max Travel Speed
30km/h
Service Brake Type
Oil-immersed multi-disc
Parking Brake Type
Cable-actuated disc
Steering Type
Rear-wheel hydrostaticm
Oscillation Angle
-
Operating Weight
8.498Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
2500kg
Lift Capacity At Full Reach
1500kg
Load Center
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic Pump Type
Variable displacement piston pump
Max Lift Height
-
Max Forward Reach
3.8m
Frame Levelling Angle
-
Boom Raise / Lower Time
-
Boom Extend / Retract Time
7.4sec
Tilt Angle (up / Down)
-
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
4.13m
Overall Width
2.4m
Overall Height
2.64m
Wheelbase
2.54m
Ground Clearance
0.34mm
Battery Voltage
12V
Tyres
Front: 330x610 mm, Rear: 318x457 mm
Fork Dimensions
-
Cab Certification
ROPS ISO 3471, FOPS ISO 3449
Controls
Ergonomic
Seat
Adjustable seat with seatbelt
Noise Level At Operator
-
Noise To Environment (lwa)
-

Manitou MT-X 1033 A Mining Telehandler
Engine Brand
Perkins
Engine Model
1104D-44 TA
Engine Power
101HP
Max Torque
410Nm
Rated Speed
1400rpm
Displacement
4.4L
Fuel Tank Capacity
120L
Hydraulic Oil Capacity
128L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
27km/h
Service Brake Type
Oil-immersed multi-discs
Parking Brake Type
Manual
Steering Type
3.66m
Oscillation Angle
-
Operating Weight
7.745Ton
Max Lifting Capacity
3300kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
106L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
9.98m
Max Forward Reach
7.15m
Frame Levelling Angle
-
Boom Raise / Lower Time
6.7 / 5.4sec
Boom Extend / Retract Time
13.6 / 8.7sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
9100daN
Gradeability (laden)
-
Overall Length
4.93m
Overall Width
2.25m
Overall Height
2.30m
Wheelbase
2.69m
Ground Clearance
440mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 45mm
Cab Certification
EN 15000 / ROPS-FOPS Level 2
Controls
JSM
Seat
-
Noise Level At Operator
76dB
Noise To Environment (lwa)
104dB

Manitou MXT 840 IND Telehandler
Engine Brand
Kirloskar
Engine Model
4R1190NA1
Engine Power
74.5HP
Max Torque
300Nm
Rated Speed
1320rpm
Displacement
4.76L
Fuel Tank Capacity
78.5L
Hydraulic Oil Capacity
120L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
28km/h
Service Brake Type
Oil-immersed multi-discs on front & rear axles
Parking Brake Type
-
Steering Type
2 / 2m
Oscillation Angle
-
Operating Weight
8.45Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
91.4L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
7.6m
Max Forward Reach
4.23m
Frame Levelling Angle
-
Boom Raise / Lower Time
4.36sec
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
12 / 134°
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
5.876m
Overall Width
2.387m
Overall Height
2.586m
Wheelbase
2.58m
Ground Clearance
372mm
Battery Voltage
12V
Tyres
BKT 16.0/70-20 14PR- EM936 SPL
Fork Dimensions
1200 x 125 x 49mm
Cab Certification
Cabin ROPS - FOPS level 2
Controls
-
Seat
-
Noise Level At Operator
90dB
Noise To Environment (lwa)
110dB

Manitou MT-X 1440 Telehandler
Engine Brand
Perkins
Engine Model
1104D-44TA
Engine Power
101HP
Max Torque
400Nm
Rated Speed
1400rpm
Displacement
4.4L
Fuel Tank Capacity
140L
Hydraulic Oil Capacity
135L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
24.90km/h
Service Brake Type
Oil-immersed multi-discs
Parking Brake Type
Automatic Negative Hand-brake
Steering Type
2WS (2 front wheels) m
Oscillation Angle
-
Operating Weight
11.115Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
167L/min
Hydraulic Pressure
270 bar
Hydraulic Pump Type
Gear pump
Max Lift Height
13.53m
Max Forward Reach
9.46m
Frame Levelling Angle
-
Boom Raise / Lower Time
15.50 / 11.60sec
Boom Extend / Retract Time
16.50 / 11.90sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
8250daN
Gradeability (laden)
-
Overall Length
6.13m
Overall Width
2.42m
Overall Height
2.45m
Wheelbase
3.07m
Ground Clearance
370mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 50mm
Cab Certification
ROPS
Controls
JSM
Seat
-
Noise Level At Operator
82dB
Noise To Environment (lwa)
105dB

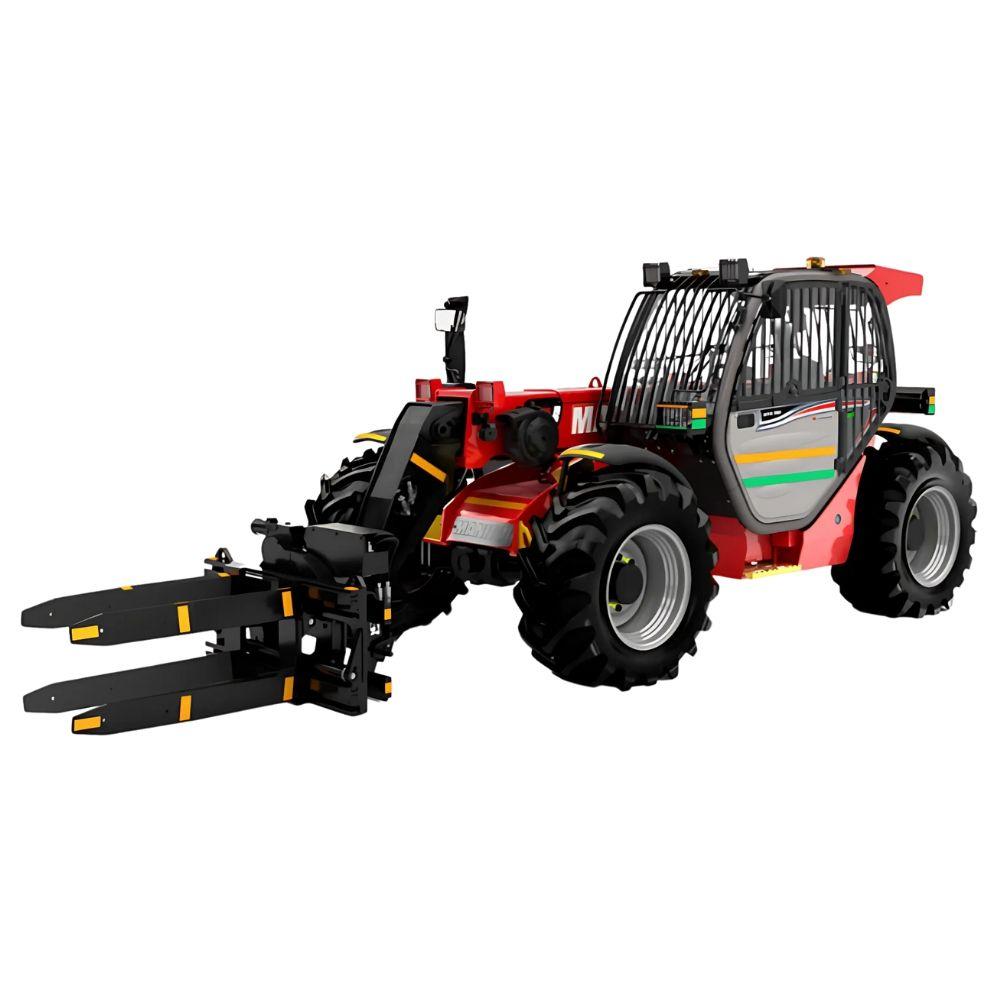

Manitou MT-X 733 Mining Telehandler
Engine Brand
Perkins
Engine Model
1104D-44 T
Engine Power
95HP
Max Torque
392Nm
Rated Speed
-
Displacement
4.4L
Fuel Tank Capacity
120L
Hydraulic Oil Capacity
128L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
3 / 3
Torque Converter Stall Ratio
-
Max Travel Speed
15km/h
Service Brake Type
Oil-immersed multi-discs (front & rear axles)
Parking Brake Type
Manual
Steering Type
2 / 2 (front/rear)m
Oscillation Angle
-
Operating Weight
6.62Ton
Max Lifting Capacity
3300kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
104L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
6.90m
Max Forward Reach
3.90m
Frame Levelling Angle
-
Boom Raise / Lower Time
7.20 / 5.50sec
Boom Extend / Retract Time
6.50 / 5.40sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
9000daN
Gradeability (laden)
-
Overall Length
4.74m
Overall Width
2.26m
Overall Height
2.30m
Wheelbase
2.81m
Ground Clearance
450mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 45mm
Cab Certification
Standard EN 15000 / ROPS - FOPS level 2
Controls
JSM
Seat
-
Noise Level At Operator
78dB
Noise To Environment (lwa)
104dB
