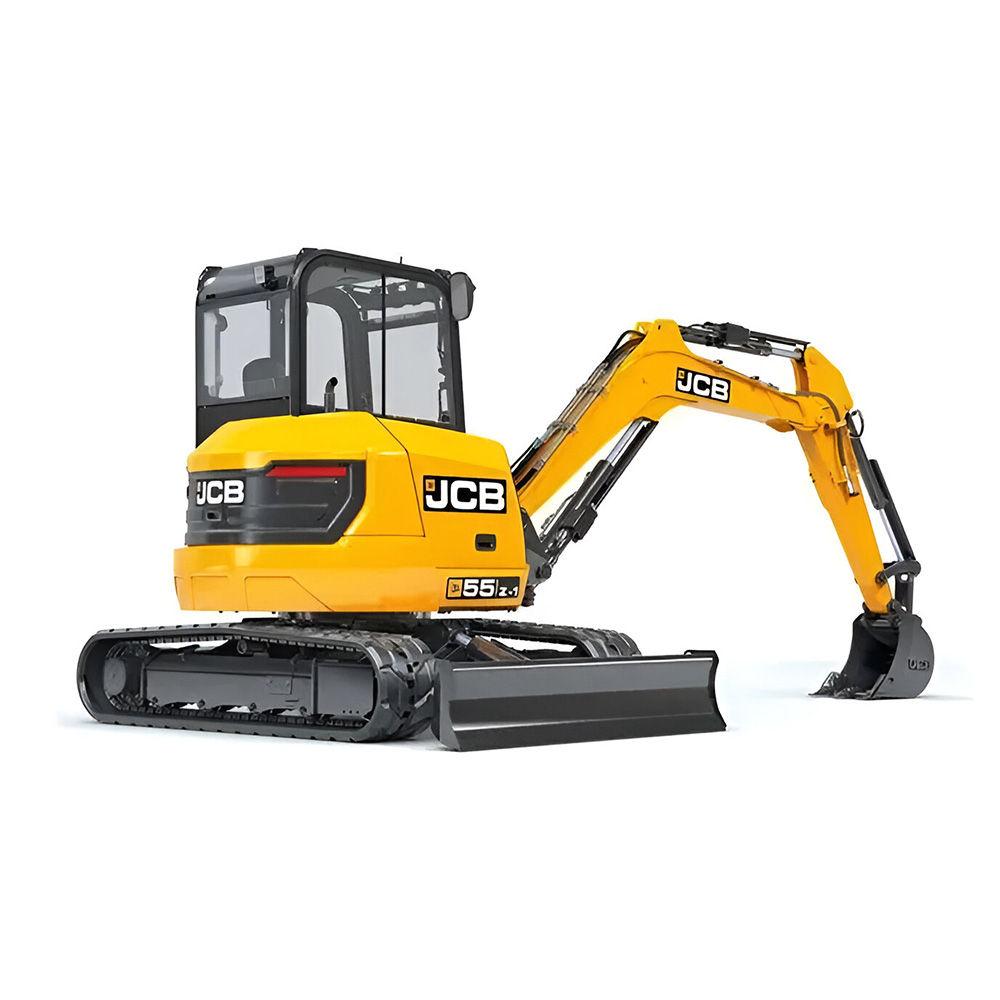

JCB 55z Mini Excavator
JCB India Limited
Delhi
The JCB 55Z Mini Excavator is a powerful, fuel-efficient machine designed to tackle various tasks with ease. Its compact size makes it ideal for diverse applications, from construction site clearing to canal cleaning and foundation digging. With a max engine power of 35.7 kW and a digging depth of 3.84 meters, the 55Z offers excellent performance. Its zero tail swing and boom swing with offset ensure maneuverability in tight spaces, while the heavy-duty undercarriage and reinforced bucket provide durability. Operator comfort is prioritized with features like a fully adjustable suspension seat, joystick control, and optional AC cabin. The JCB 55Z is also designed for low maintenance, with indigenized spares and a smartly engineered design that keeps costs down.
JCB 55z Mini Excavator
JCB India Limited
Delhi
The JCB 55Z Mini Excavator is a powerful, fuel-efficient machine designed to tackle various tasks with ease. Its compact size makes it ideal for diverse applications, from construction site clearing to canal cleaning and foundation digging. With a max engine power of 35.7 kW and a digging depth of 3.84 meters, the 55Z offers excellent performance. Its zero tail swing and boom swing with offset ensure maneuverability in tight spaces, while the heavy-duty undercarriage and reinforced bucket provide durability. Operator comfort is prioritized with features like a fully adjustable suspension seat, joystick control, and optional AC cabin. The JCB 55Z is also designed for low maintenance, with indigenized spares and a smartly engineered design that keeps costs down.
Product Description
The JCB 55Z Mini Excavator is a powerful, fuel-efficient machine designed to tackle various tasks wi...
View the full brochure
JCB 55z Mini Excavator Comparison with Similar Mini Excavators

JCB 55z Mini Excavator
Engine Power
44.38HP
Max Torque
143Nm
Displacement
2.179L
Fuel Tank Capacity
76L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Engine Brand
JCB
Engine Model
Stage 3A 404D-22
Rated Speed
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
5.520Ton
Max Digging Depth
3.61m
Max Reach At Ground
6.0m
Max Digging Height
5.66m
Max Dumping Height
4.27m
Bucket Capacity
-
Bucket Breakout Force
4282.81kgf
Arm Crowd Force
2957.18kgf
Overall Length
5.52m
Overall Height
2.55m
Ground Clearance
300mm

JCB 37C Mini Excavator
Engine Power
25.3HP
Max Torque
91.9Nm
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Engine Brand
JCB
Engine Model
Perkins 403J-17
Rated Speed
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm

Sany SY20U Mini Excavator
Engine Power
19.8HP
Max Torque
67.4Nm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Engine Brand
YANMAR
Engine Model
3TNV80F
Rated Speed
2400rpm
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm

Sany SY35U Mini Excavator
Engine Power
28HP
Max Torque
106Nm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Rated Speed
2200rpm
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Overall Length
4.910m
Overall Height
2.515m
Ground Clearance
295mm

Sany SY35 pro Mini Excavator
Engine Power
24.41HP
Max Torque
71.1Nm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Rated Speed
2200rpm
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Overall Length
4.15m
Overall Height
1.55m
Ground Clearance
285mm
