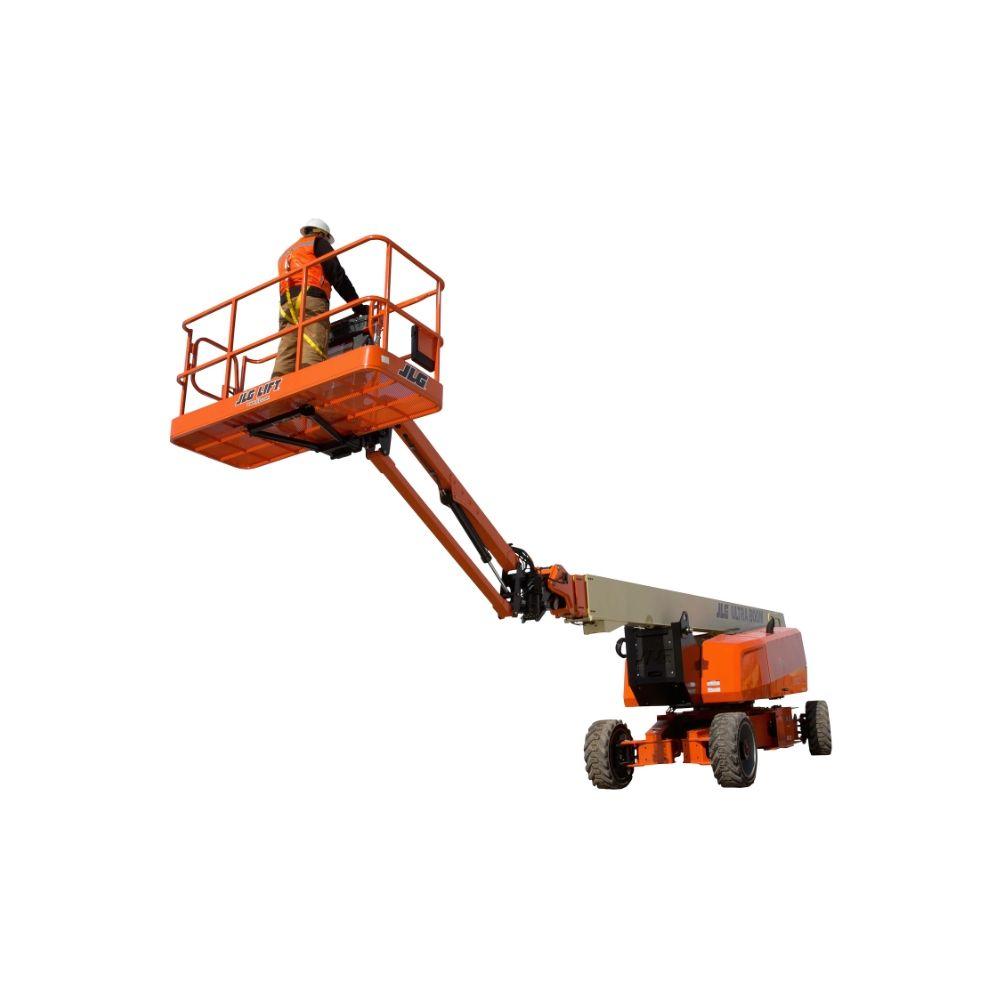

JLG 1500AJP Boom Lift
The JLG 1500AJP Boom Lift is a high-performance aerial platform designed to tackle the most challenging tasks at exceptional heights. With a remarkable working height of 48.15 meters and a horizontal outreach of 23.55 meters, this lift is perfect for large-scale construction, infrastructure maintenance, and industrial applications. Its 130-degree jib articulation and 360-degree continuous swing provide exceptional maneuverability, ensuring precise access to difficult-to-reach areas. The powerful 4WD drive system offers 40% gradeability, allowing smooth operation on rough terrains. The platform can safely support up to 450 kg for heavy-duty tasks, while the 18.40-meter up-and-over height provides versatility for complex work environments. Whether used for high-rise building construction, bridge repairs, or industrial facility maintenance, the JLG 1500AJP offers durability, safety, and unmatched reach for a wide range of applications.
JLG 1500AJP Boom Lift
The JLG 1500AJP Boom Lift is a high-performance aerial platform designed to tackle the most challenging tasks at exceptional heights. With a remarkable working height of 48.15 meters and a horizontal outreach of 23.55 meters, this lift is perfect for large-scale construction, infrastructure maintenance, and industrial applications. Its 130-degree jib articulation and 360-degree continuous swing provide exceptional maneuverability, ensuring precise access to difficult-to-reach areas. The powerful 4WD drive system offers 40% gradeability, allowing smooth operation on rough terrains. The platform can safely support up to 450 kg for heavy-duty tasks, while the 18.40-meter up-and-over height provides versatility for complex work environments. Whether used for high-rise building construction, bridge repairs, or industrial facility maintenance, the JLG 1500AJP offers durability, safety, and unmatched reach for a wide range of applications.
Product Description
The JLG 1500AJP Boom Lift is a high-performance aerial platform designed to tackle the most challeng...
View the full brochure
JLG 1500AJP Boom Lift Comparison with Similar Articulating Boom Lift

JLG 1500AJP Boom Lift
Engine Brand
Deutz
Engine Model
TCD 3.6L Tier IV F
Engine Power
74.4kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
170L
Hydraulic Oil Capacity
352L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.5km/h
Max Travel Speed (r)
km/h
Gradeability
40%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Axle-based
Steering Angle
-
Oscillation Angle
-
Turning Radius
2.3 / 7.12m
Operating Weight
26027kg
Max Platform Capacity
272kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
8.24Bar
Overall Length
12.09 / 15.1m
Overall Width
2.49 / 5.0m
Overall Height
3.1m
Ground Clearance
380 (Axle) / 400 (Chassis)mm
Platform Height
45.72m
Horizontal Outreach
22.86m
Up And Over Clearance
18.4m
Platform Rotation
180°
Battery Voltage / Capacity
-
Turning Radius (inside)
-

SANY SPA16AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
2WD
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8 km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.10 m
Operating Weight
7.0 kg
Max Platform Capacity
0.248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15 m
Overall Width
2.00m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.00m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2 / 315 V
Turning Radius (inside)
1.55m

Haulotte HA16 RTJ Articulating Boom
Engine Brand
Kubota / Perkins
Engine Model
Stage 5 (EU) / Stage 3A (NRC)
Engine Power
18.5 / 26.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
Hydrostatic
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.2km/h
Max Travel Speed (r)
-
Gradeability
40%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
5°
Oscillation Angle
-
Turning Radius
4.5m
Operating Weight
6095 kg
Max Platform Capacity
230kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.75m
Overall Width
2.3m
Overall Height
2.3m
Ground Clearance
370mm
Platform Height
14m
Horizontal Outreach
8.3m
Up And Over Clearance
7.65m
Platform Rotation
165°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-

Haulotte HA20 RTJ PRO Articulating Boom
Engine Brand
KUBOTA
Engine Model
-
Engine Power
18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
5km/h
Max Travel Speed (r)
-
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
4 wheel drive and 4 wheel steering (PRO model)
Steering Angle
-
Oscillation Angle
4 (option 6°) °
Turning Radius
5.2m
Operating Weight
9.43kg
Max Platform Capacity
250kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
8.60m
Overall Width
2.43m
Overall Height
2.47m
Ground Clearance
360mm
Platform Height
18.5m
Horizontal Outreach
11.9m
Up And Over Clearance
8.5m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-

JLG 340AJ Boom Lift
Engine Brand
PSI/GM / Kubota
Engine Model
L4 EFI / D1105
Engine Power
21.4 / 18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
49.21L
Hydraulic Oil Capacity
77.9L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.98km/h
Max Travel Speed (r)
-
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
1.52m
Operating Weight
4615kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Platform Height
10.33m
Horizontal Outreach
6.06m
Up And Over Clearance
5.17m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-
