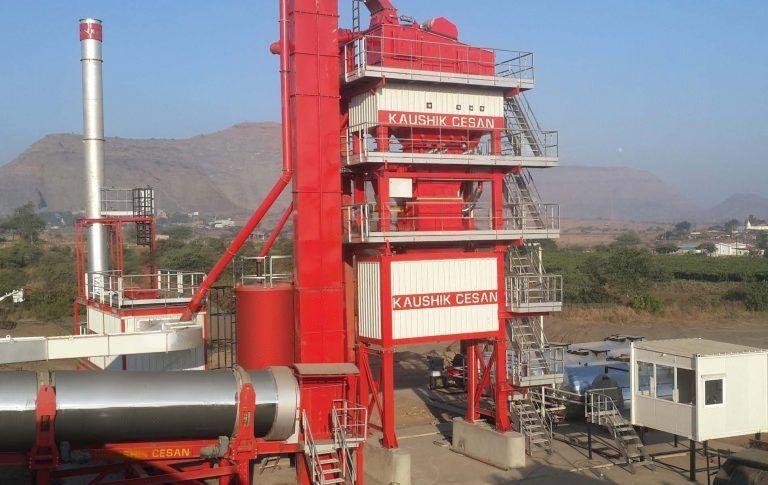

Kaushik Cesan KC 250 Asphalt Batch Mix Plant

Kaushik Engineering Works

Gujarat

The Kaushik Cesan KC 250 Asphalt Batch Mix Plant is an advanced, high-capacity solution for demanding asphalt production needs. Equipped with a 3000 kg mixer and precision aggregate weighing of 3000 kg, it ensures consistent quality for large-scale projects. The plant features cold aggregate silos up to 20 m³, a robust 25-ton hot aggregate silo, and an efficient 15 lt/sn bitumen feeding system, making it ideal for high-volume applications. Its 4-6 deck sieving machine and advanced automation streamline operations, reducing downtime and maximizing productivity. Designed for versatility, it caters to highways, airport runways, urban infrastructure, industrial flooring, and bridge construction. With customizable bitumen tanks and a durable thermal oil system, the KC 250 delivers exceptional performance and reliability, meeting the highest standards in modern construction projects.

Product Description

The Kaushik Cesan KC 250 Asphalt Batch Mix Plant is an advanced, high-capacity solution for demandin...

Kaushik Cesan KC 250 Asphalt Batch Mix Plant Comparison with Similar Asphalt Batching Plant

Kaushik Cesan KC 250 Asphalt Batch Mix Plant

Kaushik Cesan KC 250 Asphalt Batch Mix Plant

Get Latest Price
Rating
4.4

Plant Type

KC 250

Max Production Capacity

250TPH

Batch Size

3000kg

Cycle Time

-

Dryer Drum Diameter

2.5m

Dryer Drum Length

9m

Burner Capacity

-

Fuel Type

-

Hot Mix Storage Silo Capacity

-

Cold Feed Bins (no. Of Bins)

4

Cold Feed Bin Capacity

8,10,12,15,20

Collecting Belt Width

850mm

Inclined Belt Width

850mm

Hot Aggregate Elevator Capacity

-

Screening Method

-

No. Of Decks

4,5,6

Screening Capacity

-

Hot Aggregate Bin Capacity

25T

No. Of Hot Aggregate Bins

-

Aggregate Weighing Capacity

3000kg

Filler Weighing Capacity

300kg

Bitumen Weighing Capacity

-

Mixer Type

-

Mixer Capacity

3000kg

Mixing Time

-

Primary Pollution Control

-

Secondary Pollution Control

-

Filter Surface Area

-

Emission Level

-

Bitumen Tank Capacity

20 / 25 / 30 / 40 / 50 / 60

Bitumen Pump Type

-

Thermal Oil System Capacity

1000kcal/h

Automation System

-

Remote Monitoring

-

Currently Viewing
Sany SABP120 Asphalt Batching Plant

Sany SABP120 Asphalt Batching Plant

Get Latest Price
Rating
4.4

Plant Type

SABP120

Max Production Capacity

120TPH

Batch Size

1700kg

Cycle Time

-

Dryer Drum Diameter

1.8m

Dryer Drum Length

7m

Burner Capacity

10MW

Fuel Type

Diesel

Hot Mix Storage Silo Capacity

-

Cold Feed Bins (no. Of Bins)

4

Cold Feed Bin Capacity

8

Collecting Belt Width

500mm

Inclined Belt Width

500mm

Hot Aggregate Elevator Capacity

-

Screening Method

Vibrating Screen

No. Of Decks

4

Screening Capacity

-

Hot Aggregate Bin Capacity

-

No. Of Hot Aggregate Bins

5

Aggregate Weighing Capacity

-

Filler Weighing Capacity

-

Bitumen Weighing Capacity

-

Mixer Type

-

Mixer Capacity

1700kg

Mixing Time

-

Primary Pollution Control

-

Secondary Pollution Control

Dedust system

Filter Surface Area

360

Emission Level

-

Bitumen Tank Capacity

30

Bitumen Pump Type

Asphalt Metering Pump

Thermal Oil System Capacity

500000kcal/h

Automation System

PLC supported by 1 CPU or more

Remote Monitoring

Y

Nilang ABP 200 Asphalt Batch Mix Plant

Nilang ABP 200 Asphalt Batch Mix Plant

Get Latest Price
Rating
4.4

Plant Type

ABP 200

Max Production Capacity

200TPH

Batch Size

2500kg

Cycle Time

45seconds

Dryer Drum Diameter

2.1m

Dryer Drum Length

8m

Burner Capacity

14MW

Fuel Type

Diesel/LDO/Furnace Oil

Hot Mix Storage Silo Capacity

40 / 80T

Cold Feed Bins (no. Of Bins)

4 / 5

Cold Feed Bin Capacity

-

Collecting Belt Width

-

Inclined Belt Width

-

Hot Aggregate Elevator Capacity

220TPH

Screening Method

Inclined Liner Vibration

No. Of Decks

5

Screening Capacity

260TPH

Hot Aggregate Bin Capacity

-

No. Of Hot Aggregate Bins

5 + 1

Aggregate Weighing Capacity

3200kg

Filler Weighing Capacity

500kg

Bitumen Weighing Capacity

350kg

Mixer Type

Twin Shaft Hot Oil Jacketed

Mixer Capacity

2500kg

Mixing Time

-

Primary Pollution Control

Reverse Air Flow/Cyclonic Separator

Secondary Pollution Control

Bag House Filter Reverse Air Flow

Filter Surface Area

535

Emission Level

-

Bitumen Tank Capacity

20 / 30

Bitumen Pump Type

-

Thermal Oil System Capacity

600000 / 800000kcal/h

Automation System

Siemens PLC (SCADA optional)

Remote Monitoring

Available

Nilang ABP 120 Combat Asphalt Batch Mix Plant

Nilang ABP 120 Combat Asphalt Batch Mix Plant

Get Latest Price
Rating
4.4

Plant Type

Stationary

Max Production Capacity

140TPH

Batch Size

1500kg

Cycle Time

45seconds

Dryer Drum Diameter

1.8m

Dryer Drum Length

7.5m

Burner Capacity

12MW

Fuel Type

Diesel / LDO / Furnace Oil

Hot Mix Storage Silo Capacity

15 / 50 / 100T

Cold Feed Bins (no. Of Bins)

4

Cold Feed Bin Capacity

30

Collecting Belt Width

-

Inclined Belt Width

-

Hot Aggregate Elevator Capacity

140TPH

Screening Method

Vibratory (inferred)

No. Of Decks

2

Screening Capacity

140TPH

Hot Aggregate Bin Capacity

T

No. Of Hot Aggregate Bins

4

Aggregate Weighing Capacity

2000kg

Filler Weighing Capacity

300kg

Bitumen Weighing Capacity

225kg

Mixer Type

Twin Shaft Hot Oil Jacketed

Mixer Capacity

1500kg

Mixing Time

seconds

Primary Pollution Control

Reverse Air Flow Centrifugal Cyclonic Pre Separator

Secondary Pollution Control

Bag House Filter (Reverse Air Flow)

Filter Surface Area

300

Emission Level

-

Bitumen Tank Capacity

30

Bitumen Pump Type

-

Thermal Oil System Capacity

500000kcal/h

Automation System

Siemens PLC (SCADA on Request)

Remote Monitoring

-

Kaushik Cesan KC 200 Asphalt Batch Mix Plant

Kaushik Cesan KC 200 Asphalt Batch Mix Plant

Get Latest Price
Rating
4.4

Plant Type

KC-200

Max Production Capacity

200TPH

Batch Size

2500kg

Cycle Time

-

Dryer Drum Diameter

2.2m

Dryer Drum Length

9m

Burner Capacity

-

Fuel Type

Liquid / Natural Gas

Hot Mix Storage Silo Capacity

-

Cold Feed Bins (no. Of Bins)

4

Cold Feed Bin Capacity

8 / 10 / 12 / 15 / 20

Collecting Belt Width

650mm

Inclined Belt Width

650mm

Hot Aggregate Elevator Capacity

-

Screening Method

Vibrating Screen

No. Of Decks

4 / 5 / 6

Screening Capacity

-

Hot Aggregate Bin Capacity

25T

No. Of Hot Aggregate Bins

4 or more

Aggregate Weighing Capacity

2500kg

Filler Weighing Capacity

250kg

Bitumen Weighing Capacity

-

Mixer Type

Twin Shaft

Mixer Capacity

2500kg

Mixing Time

25 - 30seconds

Primary Pollution Control

-

Secondary Pollution Control

Bag House Filter

Filter Surface Area

-

Emission Level

< 20mg/m³

Bitumen Tank Capacity

20 / 25 / 30 / 40 / 50 / 60

Bitumen Pump Type

Jacketed

Thermal Oil System Capacity

750000kcal/h

Automation System

SCADA

Remote Monitoring

Available
